Description
Theia Technologies TL410 Overview

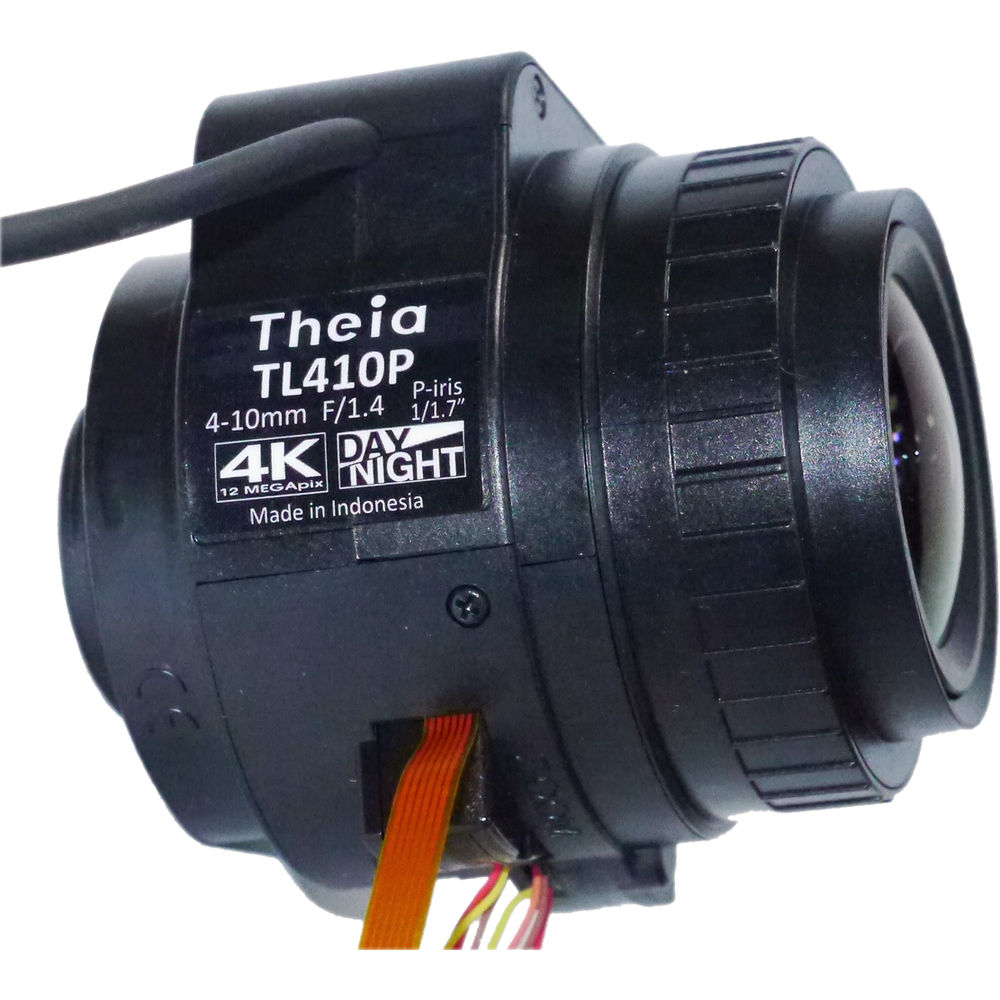

The Theia Technologies CS-Mount 4-10mm f/1.4-Close 4K IR-Corrected Motorized P-Iris Varifocal Lens is designed for use with up to 1/1.7? sensors and offers motorized zoom and focus. Thanks to the compact design, it can easily fit into 4? domes. With an aperture range of f/1.4-close, the lens can be used for surveillance in low-light as well as bright light conditions. The lens is IR corrected for use with day/night cameras. This IR correction focuses IR light from artificial illumination at the same plane as the visible light, allowing the image to remain in focus when the day/night camera switches to night mode.
Items Included
- Theia Technologies CS-Mount 4-10mm f/1.4-Close 4K IR-Corrected Motorized P-Iris Varifocal Lens
- Limited 2-Year Warranty
Additional Resources
No additional resources available
Theia Technologies TL410 Specs
| Focal Length |
4-10mm
|
| Image Circle |
Up to ?9.4 mm
|
| Resolution |
12.4 MP
|
| Aperture |
F/1.4 @ 4mm - F/2.4 @ 10mm to close
|
| Focus Range |
1.64' to infinity (0.5 m to infinity)
|
| Back Focal Length |
0.33" / 8.4 mm (in air)
|
| Angle |
CRA: < 7?
|
| Distortion |
< 61% at 4mm, < 8% at 10mm
|
| Relative Illumination |
> 45%
|
| Transmission |
Lens: > 80%
|
| Field of View |
1/1.7": 112 to 44? (horizontal), 81 to 33? (vertical), 149 to 55? (diagonal)
1/1.8": 110 to 43? (horizontal), 71 to 29? (vertical), 139 to 52? (diagonal) 1/1.8" 4K: 110 to 43? (horizontal), 52 to 21? (vertical), 126 to 48? (diagonal) 1/2": 93 to 37? (horizontal), 68 to 28? (vertical), 120 to 46? (diagonal) 1/2.3": 90 to 36? (horizontal), 67 to 27? (vertical), 117 to 45? (diagonal) 1/2.5": 83 to 33? (horizontal), 60 to 25? (vertical), 106 to 42? (diagonal) |
| Zoom/Focus |
Drive: Stepper motor
2 phase bipolar drive Operation Voltage: 3.3 V Operating Range: 2.6 to 4.8 V Maximum Continuous Operation Time (seconds) for Operation Voltage and Ambient Temperature: @ 68?F (20?C): 60 sec (3.3 V), 12 sec (4 V), 6 sec (4.8 V) @ 104?F (40?C): 35 sec ((3.3 V), 9 sec (4 V), 5 sec (4.8 V) @ 140?F (60?C): 20 sec (3.3 V), 6 sec (4 V), 4 sec (4.8 V) Coil Resistance: 28.5 Ohms (?7%) Gear Ratio: 1:2025 Zoom Speed: 4.1 sec (@ 1000 pps) Zoom Cam Rotation: 85? Focus Speed: 8.6 sec (@ 1000 pps) Focus Cam Rotation: 75? Focus/Zoom Connectors: Housing: Molex 51021-0800 Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm) |
| Iris Control |
Drive: Stepper motor
2 phase bipolar drive Operation Voltage: 4 V (+/-1) Number of Steps: 75 Basic Step Angle: 18? Maximum Frequency Response: 1000 pps Coil Resistance: 30 Ohms (each phase) Connector Type 1 (Molex) Connector Type: Housing: Molex 51021-0400, Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm) Connector Type 2 (CCTV) Connector Type: Housing: EYC 221 Cable Length: 11.8" (300 mm) |
| IR Cut Filter |
Electrical Specifications
Drive: DC Operating Voltage: 4 V Drive Coil Resistance: 130 Ohms Connector Type Housing: Molex 51021-0200 Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm) Optical Specifications for IR filter (Day) Cut-on Wavelength: 405 nm ?10 nm Visible Transmission: 430 to 610 nm Cut-off Wavelength: 650 nm ?10 nm IR Transmission: < 5% maximum 700 to 1000 nm, < 10% average 1000 to 1100 nm Optical Specifications for Clear Filter (Night) Visible Transmission: 400 to 1050 nm |
| Operating Temperature & Humidity |
4 to 140?F (-20 to 60?C)
Humidity: < 70%, non-condensing |
| Storage Temperature & Humidity |
-22 to 158?F (-30 to 70?C)
Humidity: < 90%, non-condensing |
| Dimensions |
2.32 x 2" (59 x 5.51 mm)
|
| Weight |
2.75 oz (78 g)
|
