Description

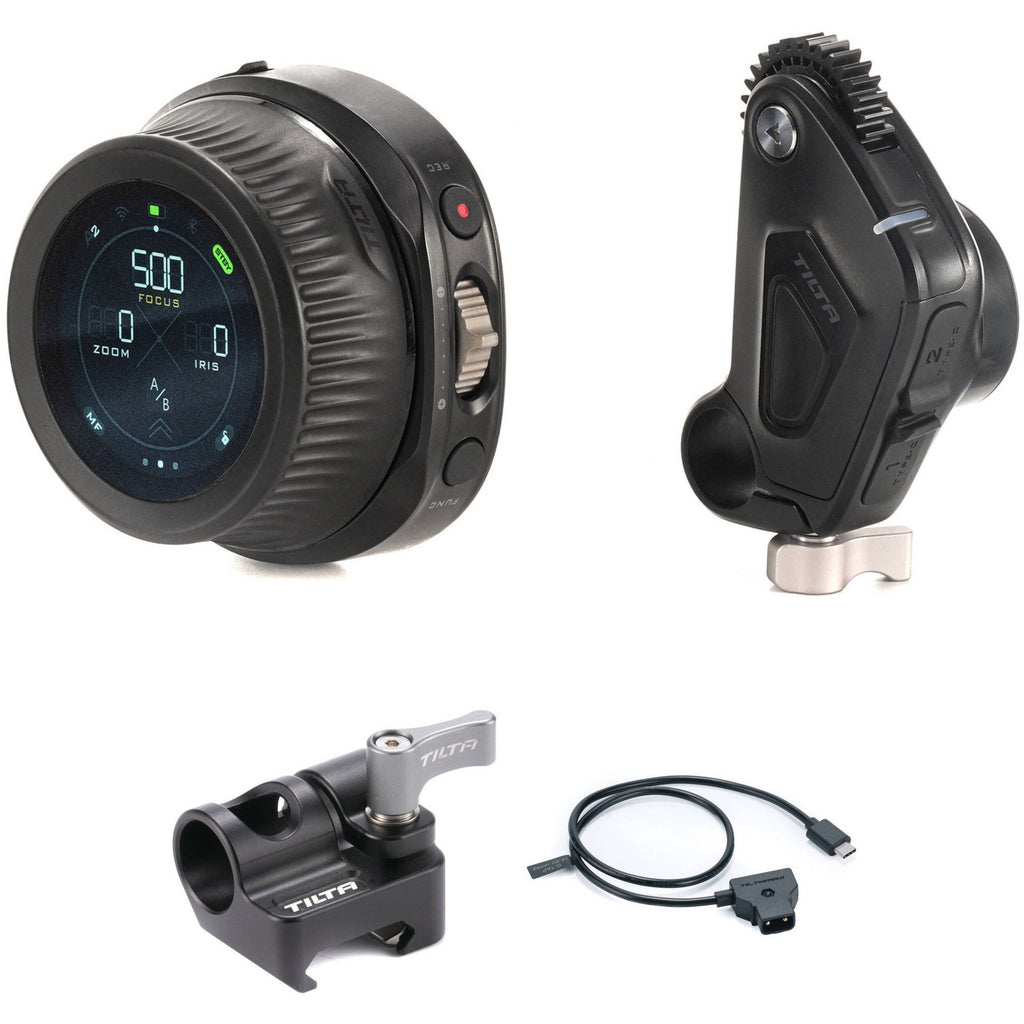

Kit Contains:
Tilta Nucleus Nano II FIZ Wireless Lens Control System
The

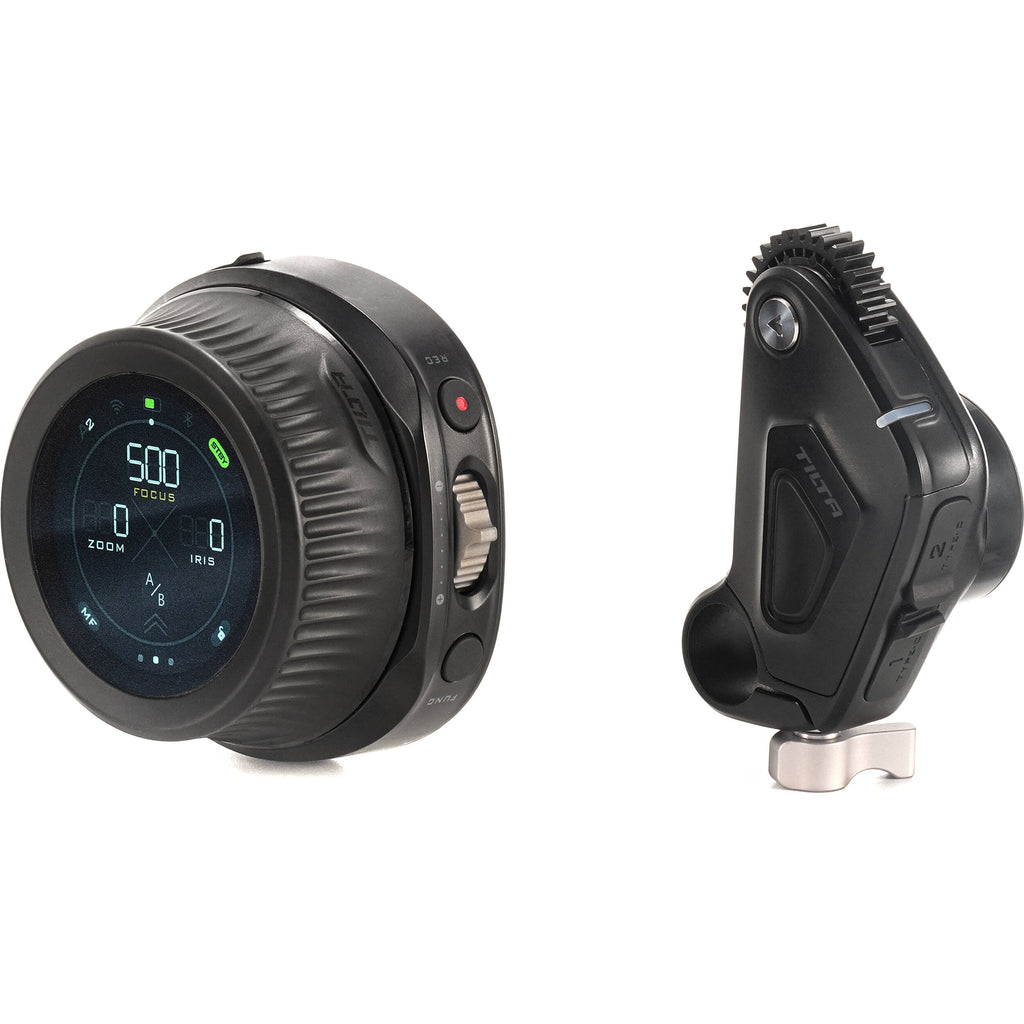

Nucleus Nano II FIZ Wireless Lens Control System from
Tilta is a focus, iris, and zoom control system designed for both freelance cinematographers and experienced DPs alike, whether they're using a handheld or gimbal-mounted rig. The basic system configuration includes a handwheel controller with upgraded touchscreen display and a lens control motor with five times the torque of its predecessor. USB-C connectivity, 2.4 GHz Wi-Fi, and Bluetooth connect the units to one another from up to 300' away and offer control compatibility with select camera systems, and Wi-Fi allows for firmware updates.
Handwheel Controller with Touchscreen
View your wireless channel, Wi-Fi status, battery life, Bluetooth connectivity, and standby status on the outer portion of the controller's 1.6" touchscreen dial. FIZ parameters and A/B stop live on the center portion, with the option to lock the screen or toggle between auto and manual focusing. Two other menus can be accessed from the main screen to lock and adjust your connected camera's settings and view your current lens parameters. Additional settings that can be accessed from the interface include pairing and accessing manual controls for the motor as well as additional customizations for the handwheel.
FIZ Lens Control Motor
The motor drive is positioned in an offset orientation from the main gearing to prevent the motor from pushing away from the lens during use. A 0.8 MOD gear ensures compatibility with most cinema-standard lenses, while an included lens adapter ring expands this compatibility for DSLR and mirrorless camera lenses. Two USB-C ports on the motor?one I/O and one input only?power the motor and can pass power through to multiple motors to control FIZ from a single source.
USB-C Ports and Power
The USB-C port on the handwheel can be used to facilitate wired connections to compatible cameras. It can also recharge the internal battery when depleted and facilitate firmware updates to the motors or other Nano II accessories. Power can also be delivered to the Nano II using the contact points on the back of the handwheel, which are compatible with select Tilta power accessories. Use professional batteries, power banks, or separately available Tilta power handles to power the motor via the USB-C input. The whole system can run for up to 20 hours.
Intuitive Pairing and Configuration
Select a 2.4 GHz Wi-Fi channel to pair your handwheel with the lens motor over a wireless connection. Press the function button on the motor to finalize the connection and cycle through the available modes: iris control, zoom control, or focus control. Different light colors will show you which mode you are on: green for iris, blue for zoom, purple for focus, and yellow for other. Hold the function button down to automatically calibrate the motor.
Onboard Handwheel Controls
- A run/stop button powers up the handwheel and sends run/stop commands to your connected camera via USB-C for Sony and Canon cameras.
- A zoom rocker can be set to adjust your lens's zoom, focus, or iris adjustment via Bluetooth motor connection.
- A function button calibrates your motors and sets A/B stops.
- Use the TF/DF switch to spin the wheel infinitely or set stops in both directions. TF mode is preferred when using the handwheel in tandem with the Nucleus motor, while DF mode works best with the DJI Focus Motor. Spinning the wheel control will adjust your FIZ sensitivity.
Compatibility
The Nano II is backward compatible with the previous generation Nucleus-Nano and Nucleus-M lens motors for easy integration with your preexisting equipment. The current firmware fully supports all controls for the BMPCC 4K, 6K, and 6K Pro via Bluetooth only, with partial camera control, including run/stop, shutter speed, ISO, and iris adjustment for Sony FX3, a7S 3, a7R 5, ZV-E1, ZV-E10, and Canon R7 via USB-C PD cables.
For the most current features, camera, and gimbal support, please visit the Tilta website.
Note:
Some features listed above are not fully functional in the current firmware, such as DJI Ronin and DJI Focus Motor compatibility and lens mapping, and will be implemented with future firmware updates.
UPC: 810076276458

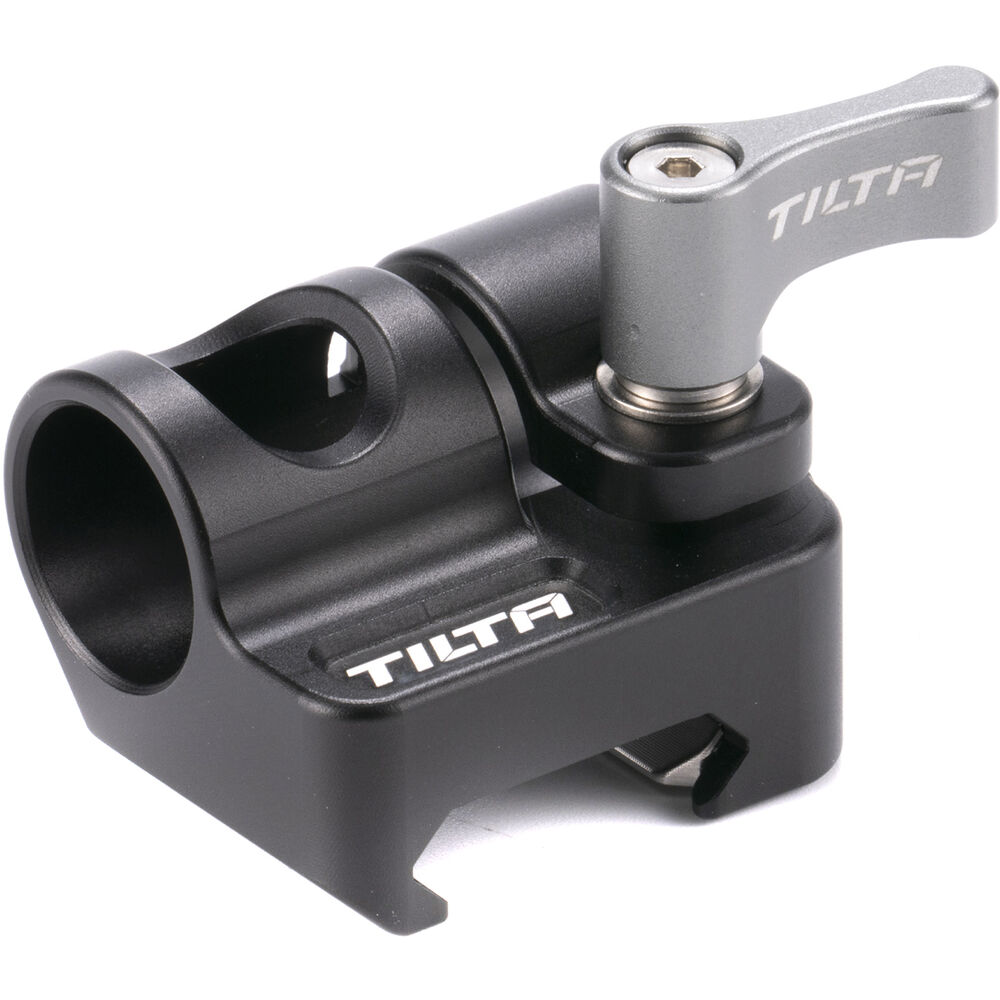

Tilta 15mm Rod Holder to NATO Clamp
Mount a rod-mounted accessory onto your camera cage with this 15mm Rod Holder to NATO Clamp from Tilta. This mount features a single 15mm rod clamp on one side and a NATO Clamp on the other side to mount onto Tilta half or full camera cages. It provides simple mounting for a follow focus motor so it can sit closer to the lens. The holder is made from durable aluminum and stainless steel.
UPC: 810076275383

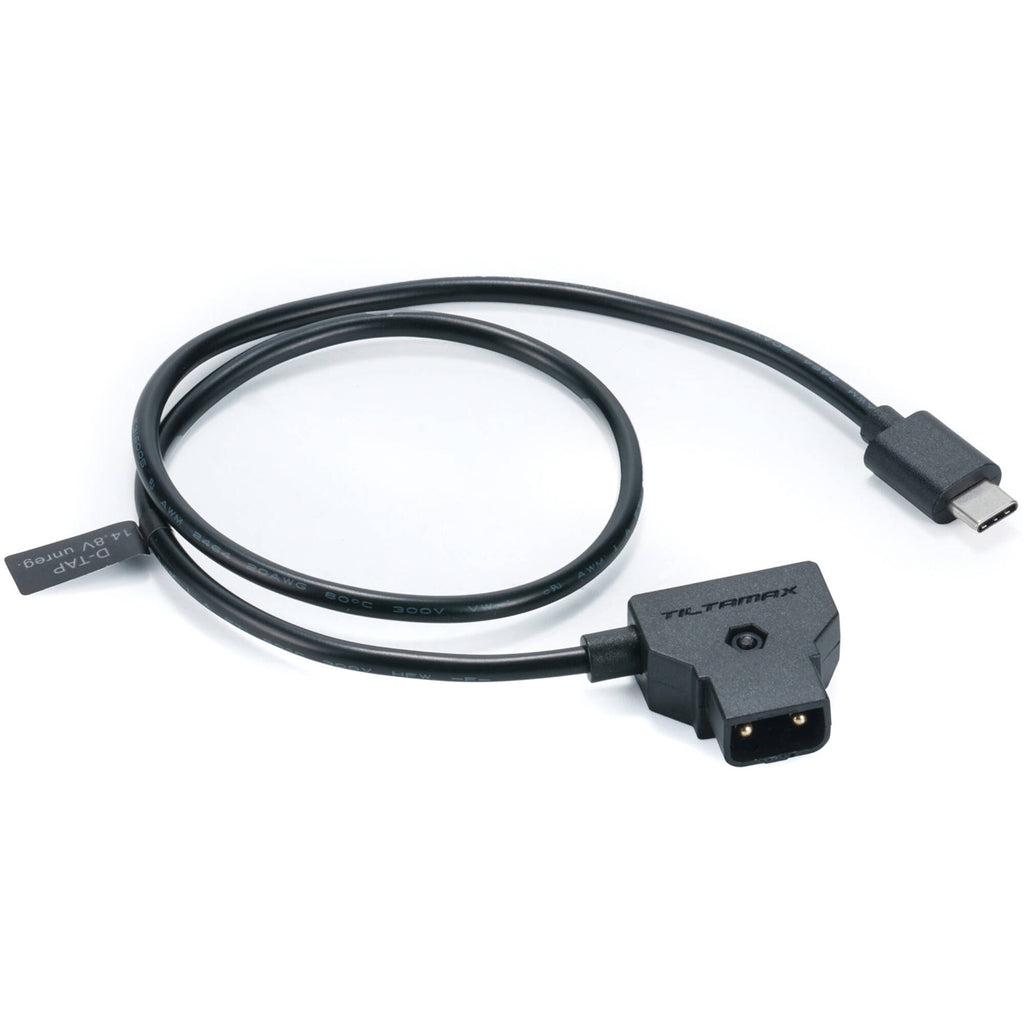

Tilta D-Tap to USB-C Power Cable for Nano II Follow Focus Motor (19.7")
Power your Nano II Follow Focus Motor with a higher-voltage D-Tap power source using this D-Tap to USB-C Power Cable from Tilta. The cable features a male D-Tap connector on one end and a male USB-C connector on the other end that inserts into your motor's power input. It measures 19.7" long and supports 14.8V of power.
UPC: 810076278377
Items Included
- Tilta Nucleus Nano II FIZ Wireless Lens Control System
- Tilta Nucleus Nano II Handwheel Controller
- Tilta Nucleus Nano II FIZ Lens Control Motor Kit
- Tilta Threaded 15mm Rod (Black, 4", Single)
- Tilta DSLR Lens Follow Focus Adapter
- 15mm Rod Clamp Adapter with 1/4"-20 Screws
- Tilta Rubber Rod Support
- USB-C Power Cable (11.8")
- Allen Key
- Carrying Case
- Limited 1-Year Manufacturer Warranty (Electrical)
- Limited 2-Year Manufacturer Warranty (Mechanical)
- Tilta 15mm Rod Holder to NATO Clamp
- Limited 2-Year Manufacturer Warranty
- Tilta D-Tap to USB-C Power Cable for Nano II Follow Focus Motor (19.7")
- Limited 1-Year Manufacturer Warranty
Additional Resources
Kit Contains:
![Tilta Nucleus Nano II FIZ Wireless Lens Control System]()
![Tilta 15mm Rod Holder to NATO Clamp]()
![Tilta D-Tap to USB-C Power Cable for Nano II Follow Focus Motor (19.7")]()
Tilta Nucleus Nano II FIZ Wireless Lens Control System
General
| Compatibility |
Tilta Nucleus Nano II / Nucleus-N / Nucleus-M
DJI RS Focus Motors / RS Gimbals Rs 2 and RS 3 Pro with Optional Wireless Receiver Module Sony ZV ZV-E10, ZV-E1 / Alpha a7C, a7 IV, a7s III, a7R III, a7R V / FX FX3, FX30 Canon R R6, R7, R8 Blackmagic Design Pocket Cinema Camera 4K, 6K, 6K Pro |
| Gear Standard |
0.8 MOD
|
| Indicators |
LED
|
Display
| Display Size |
1.6"
|
| Touchscreen |
Yes
|
Inputs/Outputs
| USB I/O |
1 x USB-C Female Input/Output
1 x USB-C Female Input/Output 1 x USB-C Female Input |
Wireless
| Wireless |
2.4 GHz Radio/RF / Bluetooth / Wi-Fi
|
| Mobile App Compatible |
No
|
Power
| Power Source |
USB (Included), Battery (Built-In)
|
| Battery Type |
1x Internal Rechargeable Lithium-Ion
|
| Battery Capacity |
1800 mAh
|
Physical
| Mounting |
1x 15mm Rod Clamp
1x NATO Clamp |
| Color |
Black
|
| Material of Construction |
Aluminum Alloy, Stainless Steel
|
| Dimensions |
9 x 7 x 4" / 22.9 x 17.8 x 10.2 cm
|
| Weight |
2.5 lb / 1.1 kg
|
Packaging Info
| Package Weight |
2.485 lb
|
| Box Dimensions (LxWxH) |
10.2 x 8.2 x 3.7"
|
