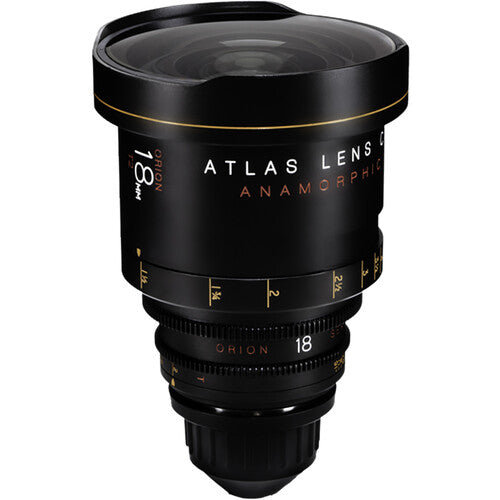

Atlas Lens Co. Orion 18mm T2 2x Anamorphic Prime Lens (ARRI PL, Feet)

Designed by cinematographers for cinematographers, the Orion 18mm T2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super 35-sensor cine-style cameras. Offering a 140° field of view, the 18mm is the widest Cinemascope format 35mm motion picture camera lens in production. To maximize compatibility, this PL-mount lens can be switched to a Canon EF mount using a separately available Atlas mount kit. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

This mechanically dependable prime lens features a design that is standardized across the series with unified focus and iris gear positions that make lens swaps easier when using cine-style matte boxes and FIZ systems. The Orion 18mm prime comes with focus marks in feet but can be switched by the user to meters using a separately available focus scale.

• Creates twice the horizontal field with the same vertical field of view as a similar spherical lens.
• Creates a wide-angle view with the shallow depth of field inherent to a telephoto prime.
• Use this Orion series lens to create a vintage anamorphic look replete with "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

• Native compatibility with ARRI PL-mount cameras; compatible with Canon EF-mount cameras when used with the separately available mount kit.
• Works with Sony E-mount or Micro Four Thirds cameras using separately available adapters.

• Covers up to Super 35-format camera sensors.
• Use with the separately available Atlas 1.6x LF extender for full-frame coverage.

• A fast T2 aperture enables low-light capture.
• Stopping down to T2.8 or less produces a crisp, flat-field look.

• The mechanically dependable design is standardized across the series for reliable performance.
• Unified focus and iris gear positions reduce the need for adjustment when switching lenses on your rig.
• The 136mm front diameter is compatible with many filters and matte boxes.
• Custom support feet are available separately.

• The focus scales are adjustable in the field for maximum accuracy.
• Focus scales in feet can be replaced by the user with those in meters, and vice versa.

Atlas Lens Co. Orion Anamorphic 18mm T2.0 (ft... Specs

Focal Length	18mm
Maximum Aperture	T2
Lens Mount	ARRI PL
Lens Format Coverage	Super35/APS-C (24.89 x 18.66 mm)
Filter Thread	No
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T2
Minimum Aperture	T16
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Super35/APS-C (24.89 x 18.66 mm)
Image Circle	31.0 mm
Angle of View	Super 35 Horizontal: 140°
Focus Scales	Imperial
Filter Thread	No
Minimum Focus Distance	From Unspecified Point in Lens: 1.5' / 45 cm
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Not Specified by Manufacturer
Electronic Communication	No
Diameter	Front: 5.4" / 136 mm
Length	7.4" / 18.7 cm
Weight	6.94 lb / 3.15 kg

Package Weight	8.95 lb
Box Dimensions (LxWxH)	14.5 x 10.3 x 7"
