Product Overview

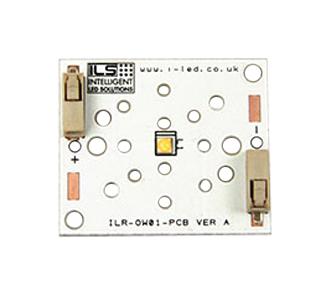

INTELLIGENT LED SOLUTIONS ILR-ON01-NUWH-SC221- WIR200. LED Module, 80° Angle, OSLON SSL Light Engine Series, Board + LED, Neutral White, 4000 K, 130 lm
Product details
| Product Range |
OSLON SSL Light Engine Series |
| LED Colour |
Neutral White |
| Luminous Flux @ Test |
130lm |
| Power Rating |
1.03W |
| Forward Current @ Test |
350mA |
| Operating Temperature Min |
-40°C |
| SVHC |
No SVHC (04-Feb-2026) |
| LED Module Type |
Board + LED |
| CCT |
4000K |
| Luminous Flux @ Max |
- |
| Supply Voltage |
3.25V |
| Power Module Configuration |
Square |
| Operating Temperature Max |
125°C |
Other details
| Brand |
INTELLIGENT LED SOLUTIONS |
| Part Number |
ILR-ON01-NUWH-SC221- WIR200. |
| Quantity |
Each |
| Technical Data Sheet (91.00B) EN |
View or download |
