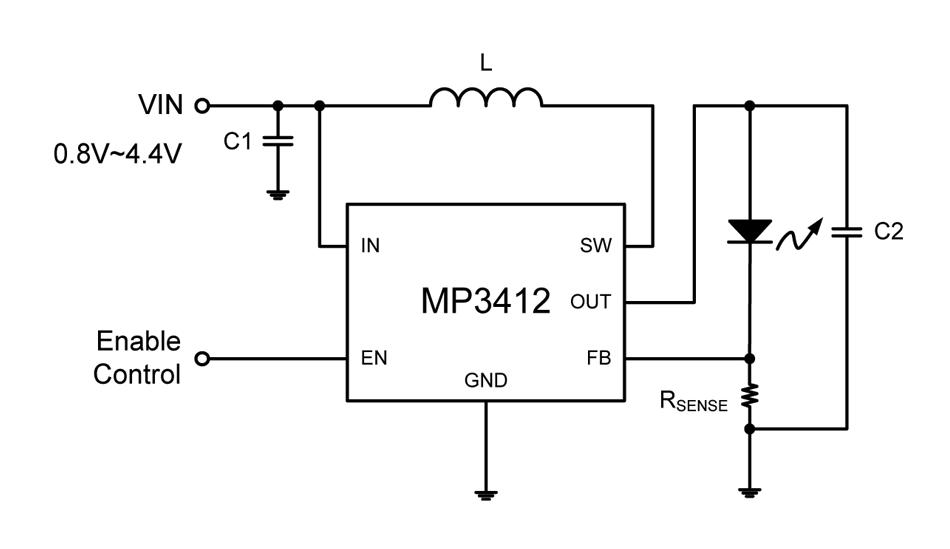

- Synchronous boost white LED driver with output disconnect in 6 pin TSOT-23 package
- 0.8V low start-up voltage
- Internal power MOSFET and synchronous rectifier
- Current mode control with internal compensation
- Up to 96% efficiency
- Less than 1µA shutdown current
- Tiny external components
- True output load disconnect
- Inrush current limiting and internal soft-start
- Open-load protection, short circuit protection
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
Synchronous Boost (Step Up) |
| Input Voltage Min |
800mV |
| Input Voltage Max |
4.4V |
| Output Voltage Max |
5V |
| Output Current Max |
1.1A |
| Switching Frequency |
1MHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
TSOT-23 |
| No. of Pins |
6Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3412EJ-LF-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
