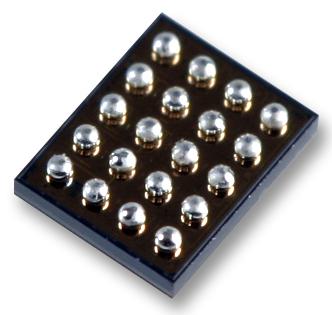

- Dual channel, flash LED driver with 2A/Ch and I2C interface in 20 pin WLCSP package
- 1/2/3/4MHz selectable maximum switching frequency
- 400KHz I2C compatible interface
- Standby/flash/assist/torch/indicator/5VDC modes
- Low battery voltage protection, LED short/open protection
- VOUT-GND short protection
- Overvoltage protection, overtemperature protection
- VIN to VOUT disconnection function
- LED forward voltage balance to improve efficiency
- Input undervoltage lockout (UVLO) protection
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
Boost (Step Up) |
| Input Voltage Min |
2.7V |
| Input Voltage Max |
5.5V |
| Output Voltage Max |
5V |
| Output Current Max |
2A |
| Switching Frequency |
1MHz |
| No. of Outputs |
2Outputs |
| IC Mounting |
SMD |
| Driver Case Style |
WLCSP |
| No. of Pins |
20Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3336GC-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
