Description

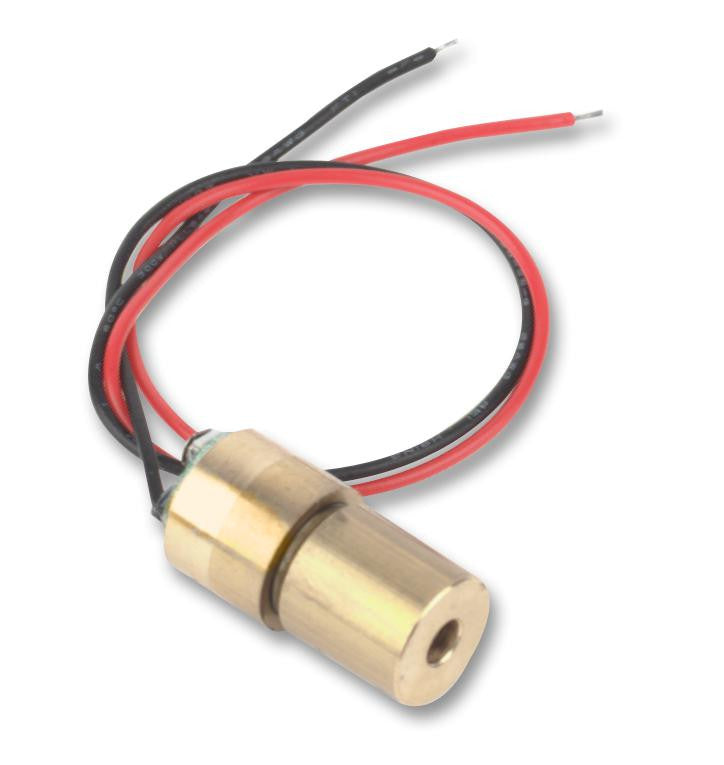

The PLP series from Hero are laser diode modules. It is designed for OEM application with low cost, miniature size and beam focusing requirements. Under continuous operation, additional heat sinking may be needed for s these modules. It is ideal for a wide range of low power laser applications such as general sighting, levelling and positioning.
- Automatic power control circuit
- Operating voltage range from 3VDC to 6VDC
- Elliptical beam shape
- Adjustable focus
- Wavelength ranging from 635nm to 980nm
- Diode output power range from 5mW to 10mW
- Reverse polarity and short circuit protection
- Operating current range from 25mA to 50mA
- Operating temperature range from -10�C to 40�C or -10�C to 50�C
- Diameter of 10.5mm and length of 15mm
Applications
Lighting
Product details
| Laser Beam Size | 3.4mm x 5.8mm |
| Output Power | 990�W |
| Laser Lens | - |
| Packaging | Each |
| Product Range | - |
| Wavelength Typ | 650nm |
| Supply Current | 45mA |
| Voltage Rating | 6V |
Other details
| Brand | HERO |
| Part Number | PLP6501AR |
| Quantity | Each |
| Technical Data Sheet EN |  |
