PLT5 522FA_P-M12 is a green laser diode. It features excellent beam pointing accuracy, single mode semiconductor laser, high modulation bandwidth. Applications includes digital diagnostic devices.
- Optical output power (continuous wave) is 50mW (TC = 25°C)
- Efficient radiation source for cw and pulsed operation

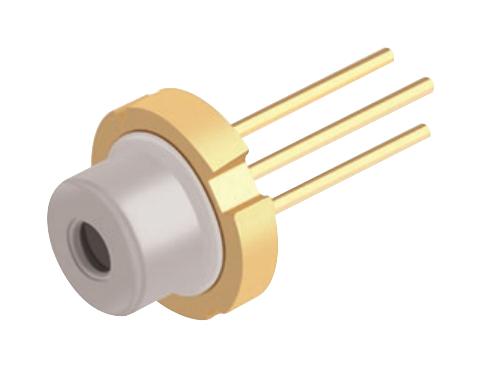

- TO56 package
- Operating temperature range from -20 to 60°C
Product details
| Wavelength Typ:
514nm
|
| No. of Pins:
2Pins
|
| Diode Case Style:
TO-56
|
| Output Power:
50mW
|
| Data Rate Max:
-
|
| Laser Class:
-
|
| Operating Temperature Min:
-20°C
|
| Operating Temperature Max:
60°C
|
| Current Rating:
115mA
|
| Product Range:
Metal Can Series
|
Other details
| Brand |
AMS OSRAM GROUP |
| Part Number |
PLT5 522FA_P-M12 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
