Description

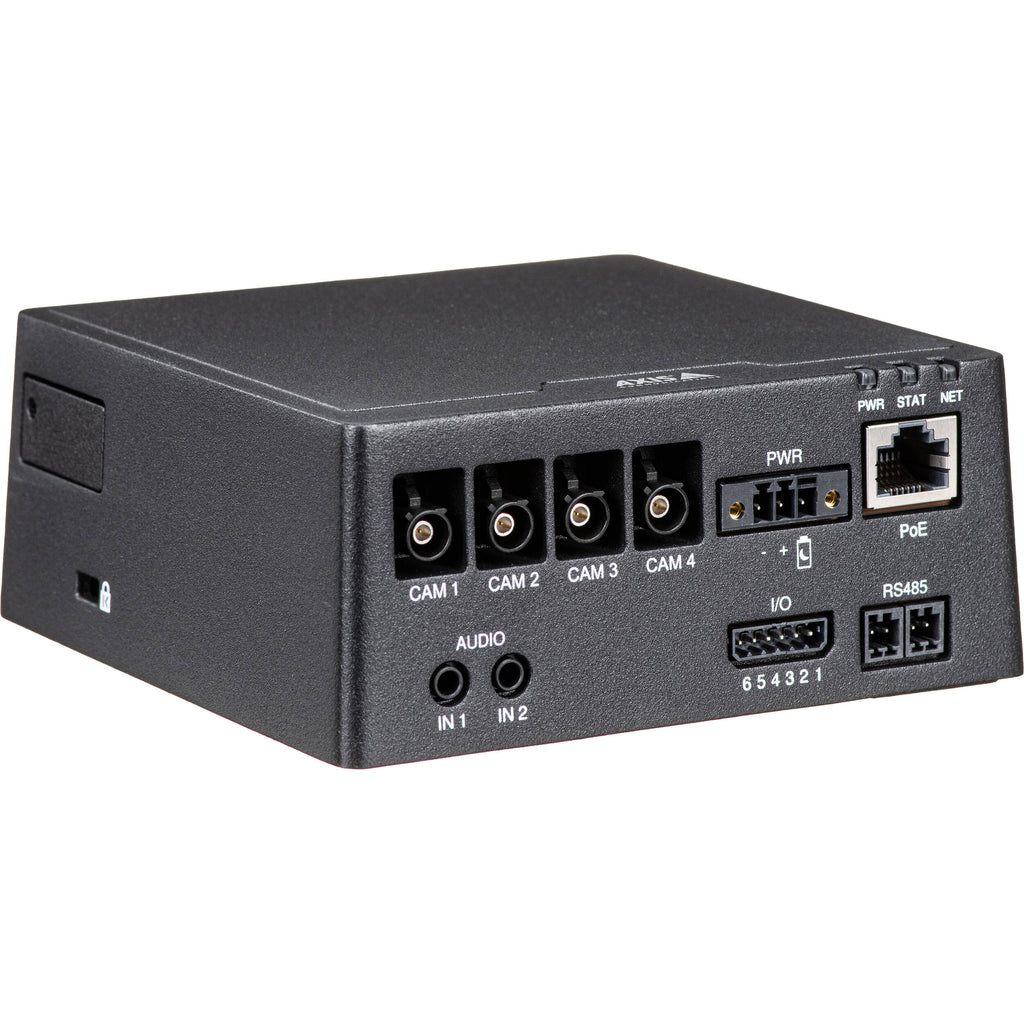

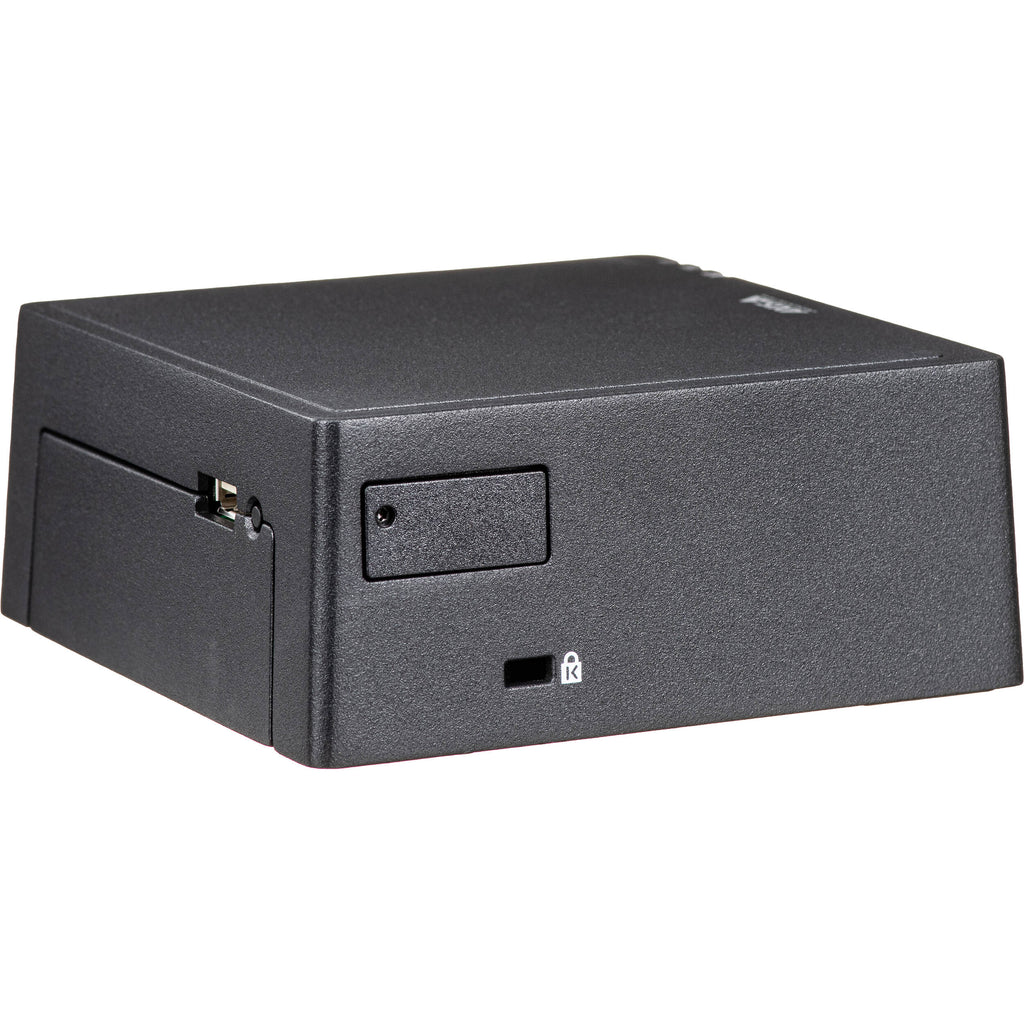

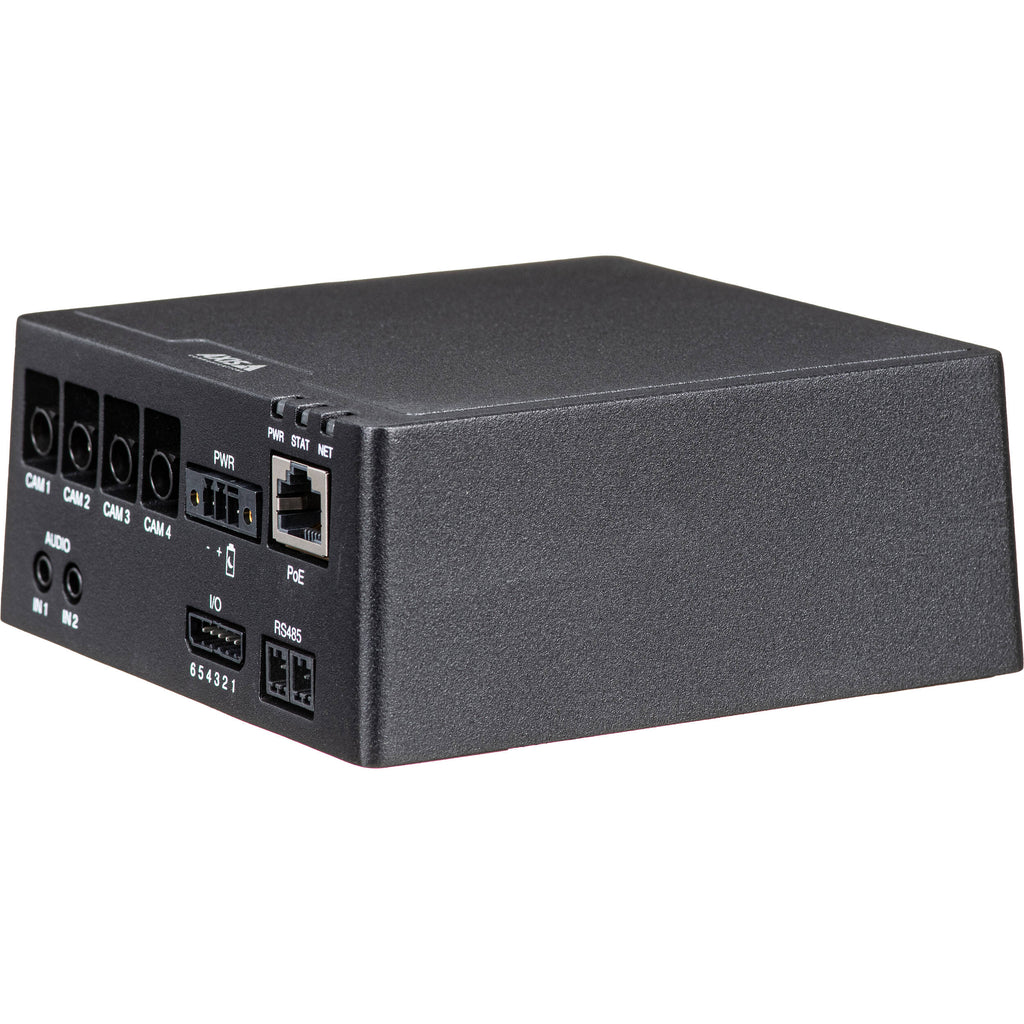

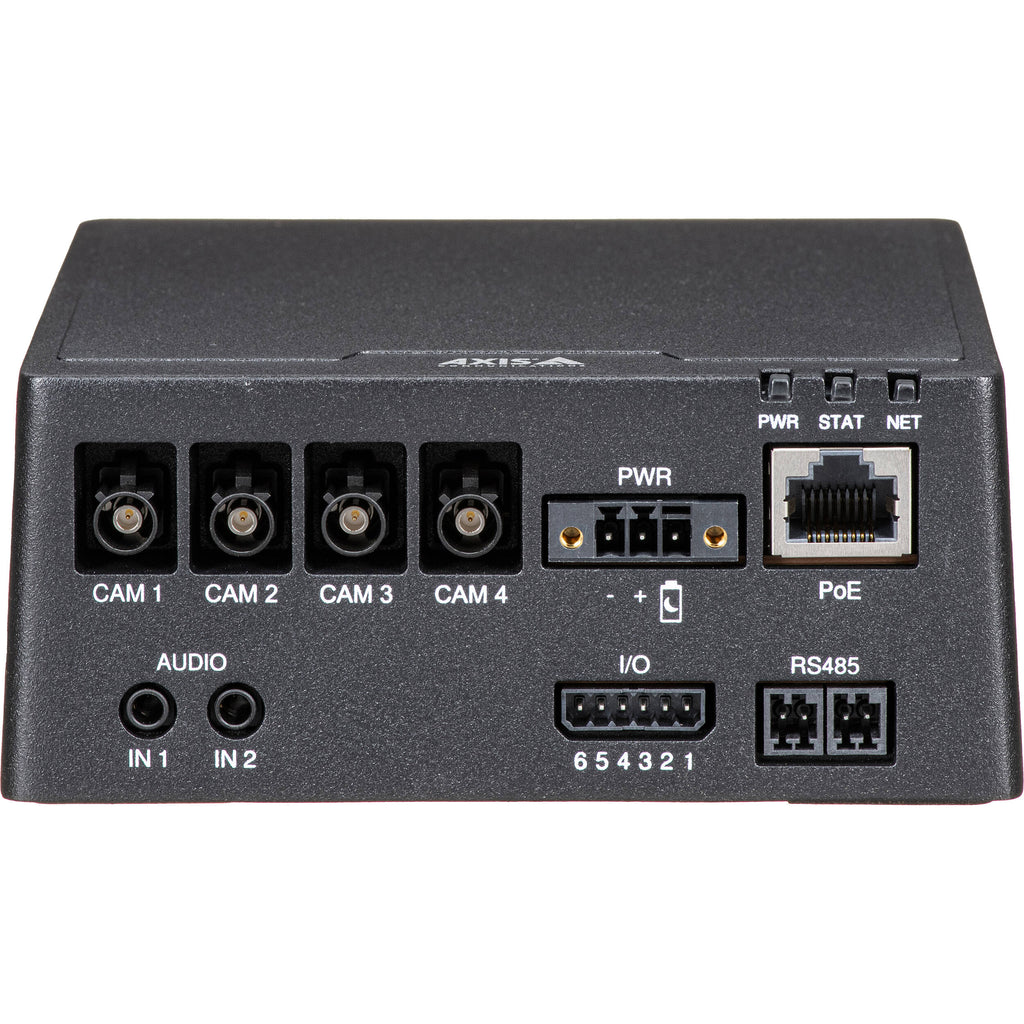

Axis Communications F9114-R Mk II Overview
Compatible with select Axis F sensor units, the F9114-R Mk II 4-Channel Main Unit from Axis Communications offers a discreet surveillance solution when connected to a sensor unit. The F9114-R can connect to four different sensor units simultaneously. It delivers a resolution of 4K UHD at 15 fps or 720p at 60 fps.
Suitable for emergency vehicles and buses, it features ignition control functionality with controlled shutdown to ensure you don't drain the vehicle's battery. Wide dynamic range ensures better image quality in poor lighting conditions. Compliance with ONVIF profiles G, M, S, and T enables interoperability with a wide range of surveillance devices.
- Modular 4-channel main unit that connects to up to four Axis F sensor units
- Rugged design and four FAKRA connectors
- Multiple individually configurable streams in H.265, H.264, and MJPEG
- Axis Zipstream technology for lowering bandwidth and storage requirements
- Controllable frame rate and bandwidth (VBR/ABR/MBR, H.264/H.265)
- Image Settings: contrast, brightness, sharpness, white balance, tone mapping, exposure mode, exposure zones, compression, 0, 90, 180, and 270? rotation including corridor format, mirroring, dynamic text and image overlay, privacy masks, and polygon privacy mask
- Analytics: Axis Object Analytics, Axis Scene Metadata, Axis Audio Analytics, Axis Video Motion Detection, and Axis Sensor Metrics Dashboard, with support for Axis Perimeter Defender, Axis People Counter, and third-party applications
- Axis Edge Vault can protect your Axis device ID and simplify the authorization of Axis devices on your network
- RJ45 connector for sensor unit
- 6-pin terminal block for four configurable inputs/outputs
- Built-in slot for supporting microSD/SDHC/SDXC cards (available separately)
- Support for recording to network-attached storage (NAS)
- LED indicators for status
- PVC and BFR/CFR free
Compatible Sensor Units
- F2105-RE Standard Sensor
- F2107-RE Standard Sensor
- F2108 Standard Sensor
- F2115-R Varifocal Sensor
- F2135-RE Fisheye Sensor
- F2137-RE Fisheye Sensor
- F4105-LRE Dome Sensor
- F4105-SLRE Dome Sensor
- F4108 Dome Sensor
- F7225-RE Pinhole Sensor
Compatible Cables & Connectors
- Connector A 2-pin 2.5 Straight
- TU6001 Connector 3-pin 3.81
- TU6004-E Cable
- TU6005 Plenum Cable
- TU6007-E Cable
- TU6009 Connector 6-pin 2.5
Items Included
- Axis Communications F9114-R Mk II 4-Channel Main Unit
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications F9114-R Mk II Specs
General
| Compatibility |
Axis Communications F Sensor Units / Connectors & Cables
|
| Number of Channels |
4
|
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
|
Inputs/Outputs
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Connectors |
RJ45 for 1000M PoE 4 x FAKRA for Sensor Units
6-Pin Terminal Block for 4x Configurable I/Os (12 VDC Output), Maximum Load 50 mA 2 x 3.5 mm Mic/Line Inputs 2-Pin Terminal Block for RS-485 3-Pin Terminal Block for 10 to 48 VDC Input 1 x USB-A |
Power
| Power Source |
PoE, DC Input
|
| DC Input Power |
10 to 48 VDC
|
| Power Consumption |
12.7 W (Typical)
25.5 W (Maximum) |
Physical
| Mounting |
1x Surface
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Environmental Resistance |
Dust/Water-Resistant (IP3X)
|
| Certifications |
BIS, CAN/CSA, CE, EN, EU, FCC, ICES, IEC, IEC/EN/UL, KC, NEMA, RCM, RCM, REACH, RoHS, UL, VCCI, cUL
|
| Operating Conditions |
-40 to 140?F / -40 to 60?C at 10 to 95% Humidity
|
| Storage Conditions |
-40 to 149?F / -40 to 65?C at 5 to 95% Humidity
|
| Dimensions |
4.7 x 4.7 x 2" / 120 x 120 x 52 mm
|
| Weight |
1.5 lb / 680 g
|
Packaging Info
| Package Weight |
1.845 lb
|
| Box Dimensions (LxWxH) |
7 x 6.55 x 3.25"
|
