Description
Product Overview

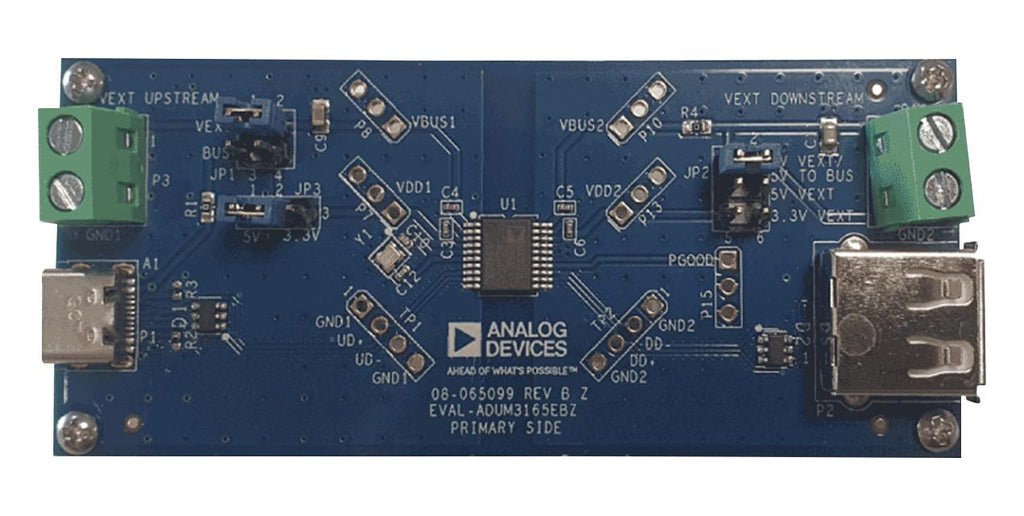

EVAL-ADUM3165EBZ is an evaluation board that allows quick and easy evaluation of the ADuM3165 USB isolators, allowing direct connection to USB hosts and peripherals without the need for additional components. The ADuM3165 employ Analog Devices, Inc., iCoupler® technology to combine isolator channels, USB transceivers, power and timing circuits, control logic and internal terminations, pull-ups, and pull-downs into a single, 20-lead, compact shrink small outline package (SSOP).
- Supports USB 2.0 data transfer ( Low/Full /High speed (1.5Mbps/12Mbps/480Mbps)
- Upstream 5V power from cable or external supply
- Accepts 3.3V or 5V external supplies
- PGOOD (power good) indicator on downstream side
- Option to connect test points
- 20-lead SSOP package option with 5.3mm creepage
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-ADUM3165EBZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
