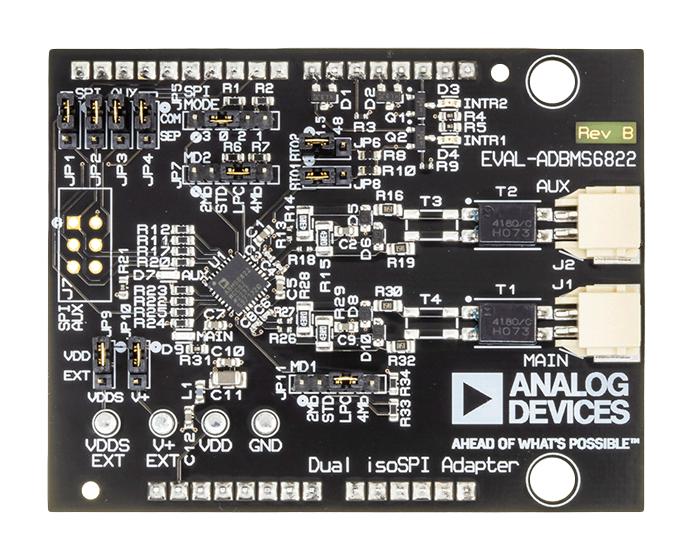

ANALOG DEVICES EVAL-ADBMS6822 Evaluation Board, ADBMS6822, isoSPI Transceiver, isoSPI DuraClik Cable

EVAL-ADBMS6822 is a dual SPI to 2- wire isolated serial-port interface (isoSPI) adapter evaluation board featuring the ADBMS6822. Multiple ADBMS68xx battery monitors can be linked through daisy-chain interconnections. The EVAL-ADBMS6822 evaluation board also features reversible isoSPI, which enables a redundant communication path to the peripheral units. The PCB, components, and DuraClik� connectors are optimized for low electromagnetic interference (EMI) susceptibility and emissions. The EVAL-ADBMS6822 evaluation board can communicate to a PC by connecting together with EVAL-SDP-CK1Z. The EVALADBMS6822 evaluation board provides a standard SPI, which can be translated to isoSPI and then onward to a peripheral device or daisy chain as applicable. It can also be used to evaluate the ADBMS6821.

• Full-featured evaluation board for the ADBMS6822
• Demonstrates SPI to isoSPI 2-wire datalinks
• Includes two isoSPI ports for reversible isoSPI support
• Configurable powering option for LPCM support isoSPI connection through simple DuraClik® connectors
• Compatible boards EVAL-ADBMS68xx, battery monitor boards EVAL-SDP-CK1Z, controller board
• PC software for control and data analysis when used with the Analog Devices, Inc., SDP-K1 MCU

Contents

ADBMS6822 evaluation board, isoSPI DuraClik cable.
