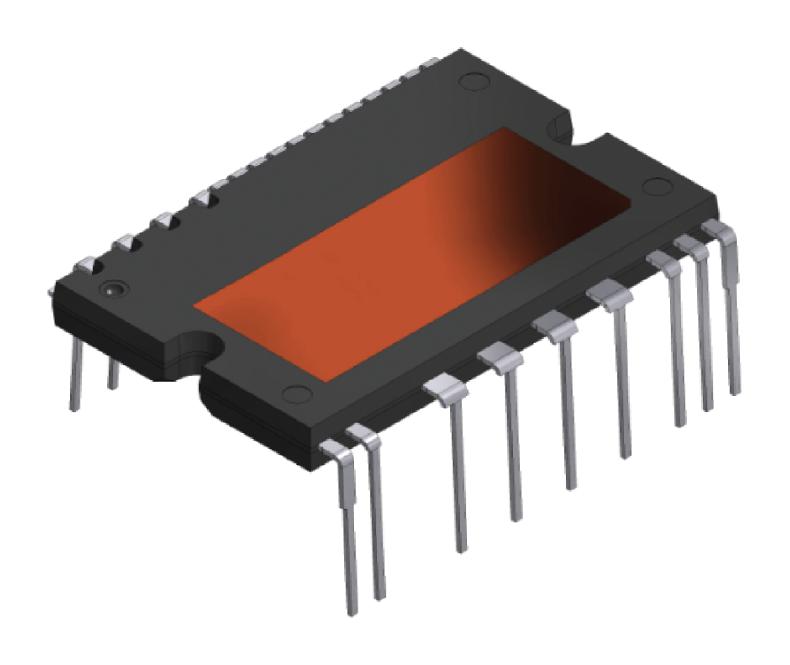

STMICROELECTRONICS STIB1560DM2-Z Intelligent Power Module (IPM), MOSFET, 600 V, 15 A, 1.6 kV, SDIP2B-26L type Z1, SLLIMM-2

STIB1560DM2-Z is a SLLIMM 2nd series IPM, 3-phase inverter. This new IPM, belonging to the second series of SLLIMM (small low-loss intelligent moulded module), provides a compact, high-performance AC motor drive in a simple, rugged design. It combines new ST proprietary control ICs with the high-voltage N-channel super junction MDmesh DM2, providing fast-recovery diode series to increase efficiency and minimize EMI and overall losses, making it ideal for any high-efficiency converter and 3-phase inverter system. Typical applications include 3-phase AC induction motor, air conditioner (window/wall/portable), PWSM/BLDC motor control.

• IPM 15A, 600V, 3-phase MOSFET inverter bridge including 2 control ICs for gate driving
• 3.3V, 5V TTL/CMOS inputs with hysteresis, internal bootstrap diode
• Undervoltage lockout of gate drivers, smart shutdown function
• Short-circuit protection, shutdown input/fault output
• Separate open-source outputs, built-in temperature sensor
• Comparator for fault protection, fast, soft recovery diodes
• Fully isolated package, isolation rating of 1600Vrms/min
• UL recognition: UL 1557, file E81734
