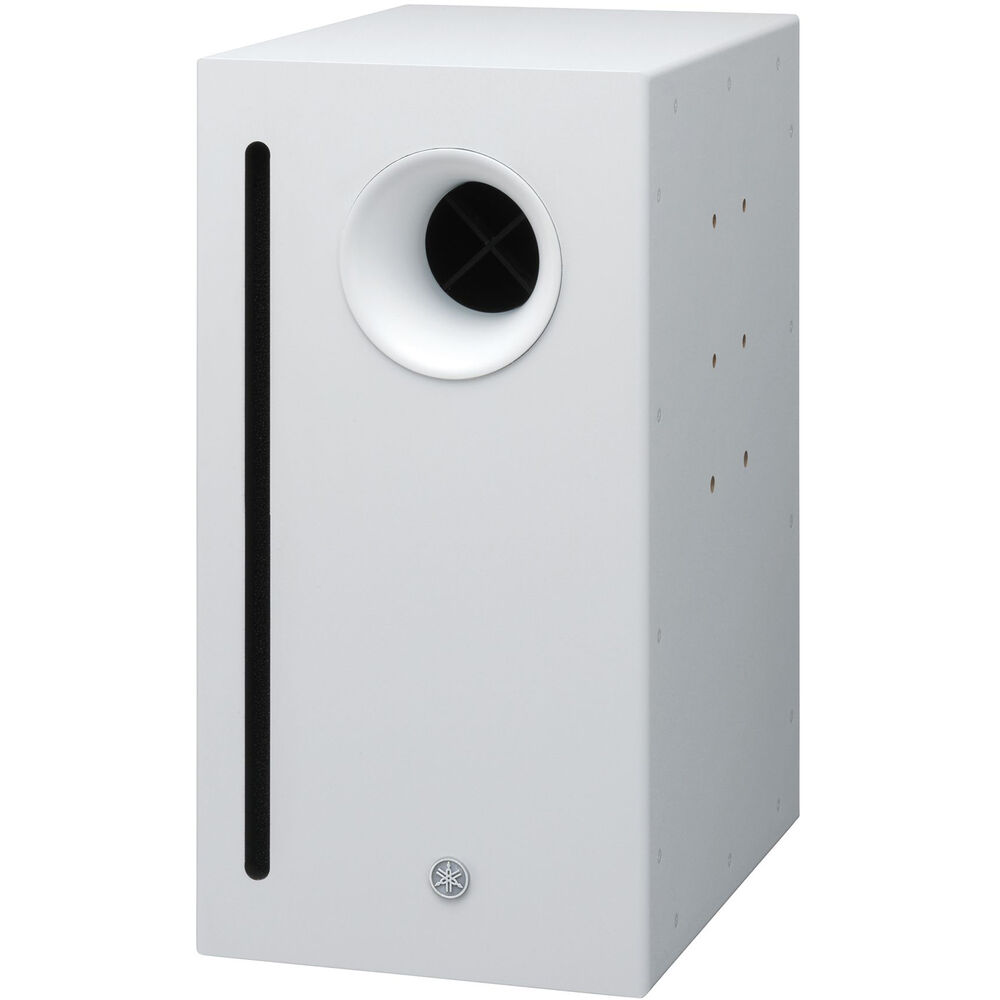

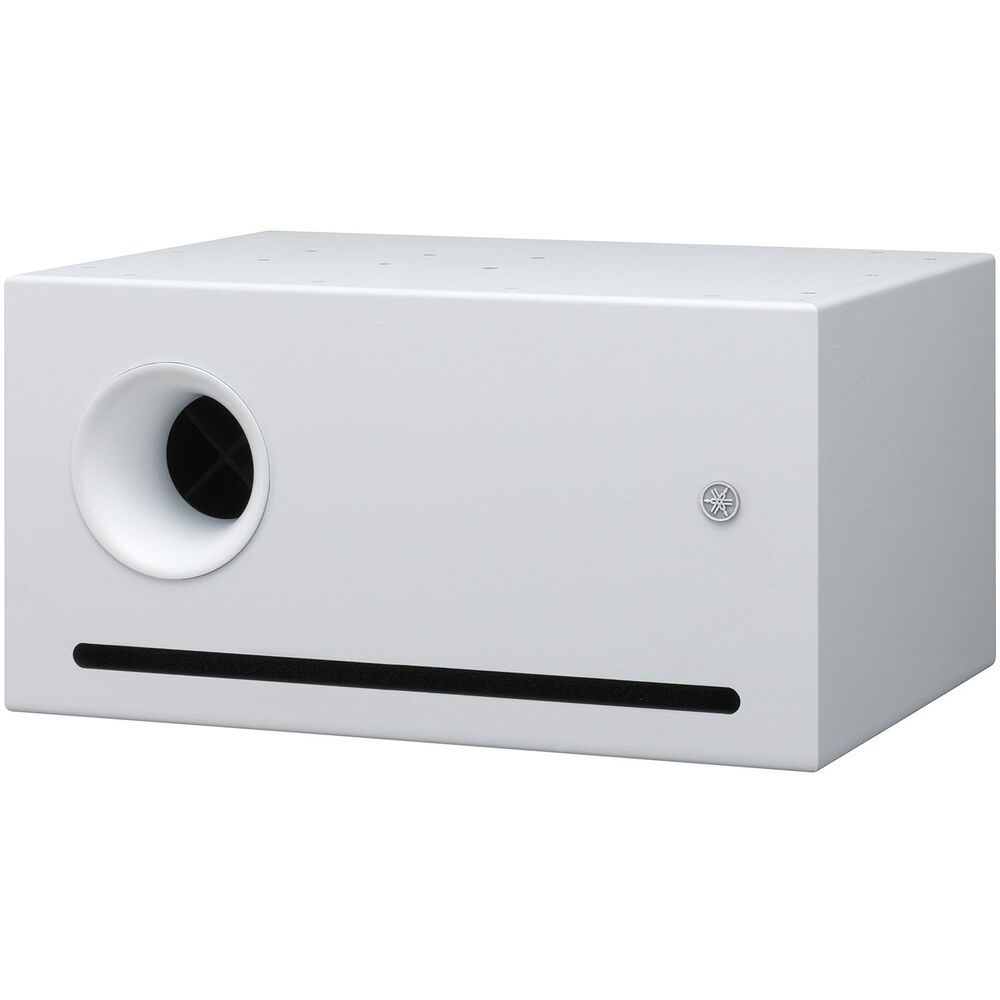

Yamaha VXS10S 10" Surface-Mounted Subwoofer (White)

Roll over image to zoom in

Yamaha VXS10S 10" Surface-Mounted Subwoofer (White)


	₹ 95450.0 includes GST and import duties.
	B2B customers can avail ₹ 14556.13 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Yamaha
SKU:	7263415042133
MPN:	VXS10SW

Share this product

Yamaha VXS10 Overview

Ideal for complimenting VXS or VXC series loudspeakers in commercial audio installations, the Yamaha VXS10S is a surface-mounted subwoofer with a 10" LF driver sporting dual voice coils for powerful sound reproduction. With up to 200W program power handling per input channel, this 8-ohm sub is ideal for low-impedance systems.

The VXS10S features two 8-ohm satellite speaker outputs, which are useful for connecting mid-high speakers to your system while reducing amp channels and utilizing the onboard high-pass filter. Along with the speaker input/thru connections, all I/O is available via block connectors. The subwoofer sports overload protections for ensuring safe operation of your your driver and audio network. The VXS mounting bracket is flexible, easy to use, and can be mounted on most walls. The entire speaker enclosure can be painted to perfectly match the style of your installation environment. The VXS10S includes a mounting bracket.

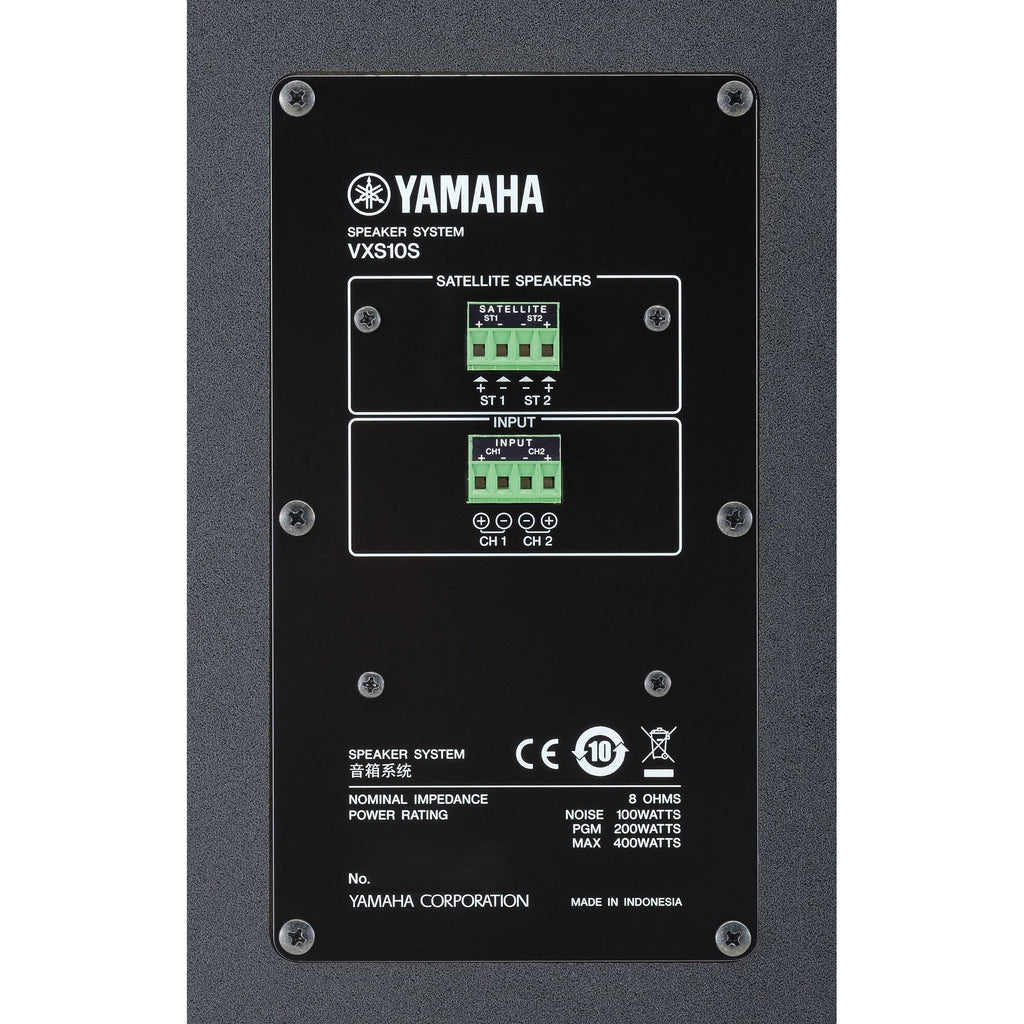

Satellite Connection

The Satellite connectors on the VXS10S and VXS10ST allow for the connection of satellite mid-high speakers to be used at the same amplifier output. This gives the benefit of reducing the number of amplifier channels required and takes advantage of the high-pass filter built in to the VXS10S and VXS10ST. The high-pass filter is optimized for use with the following recommended speakers:

VXS5 (surface mount)
VXC4 (ceiling mount)
VXC6 (ceiling mount)

Highly Adaptable Design

VXS Series is equipped with internal transformers that allow them to operate at both high or low impedance simply by changing the tap on the rear of the speaker. These models also offer IP35-rated protection, ensuring worry-free use in outdoor applications.

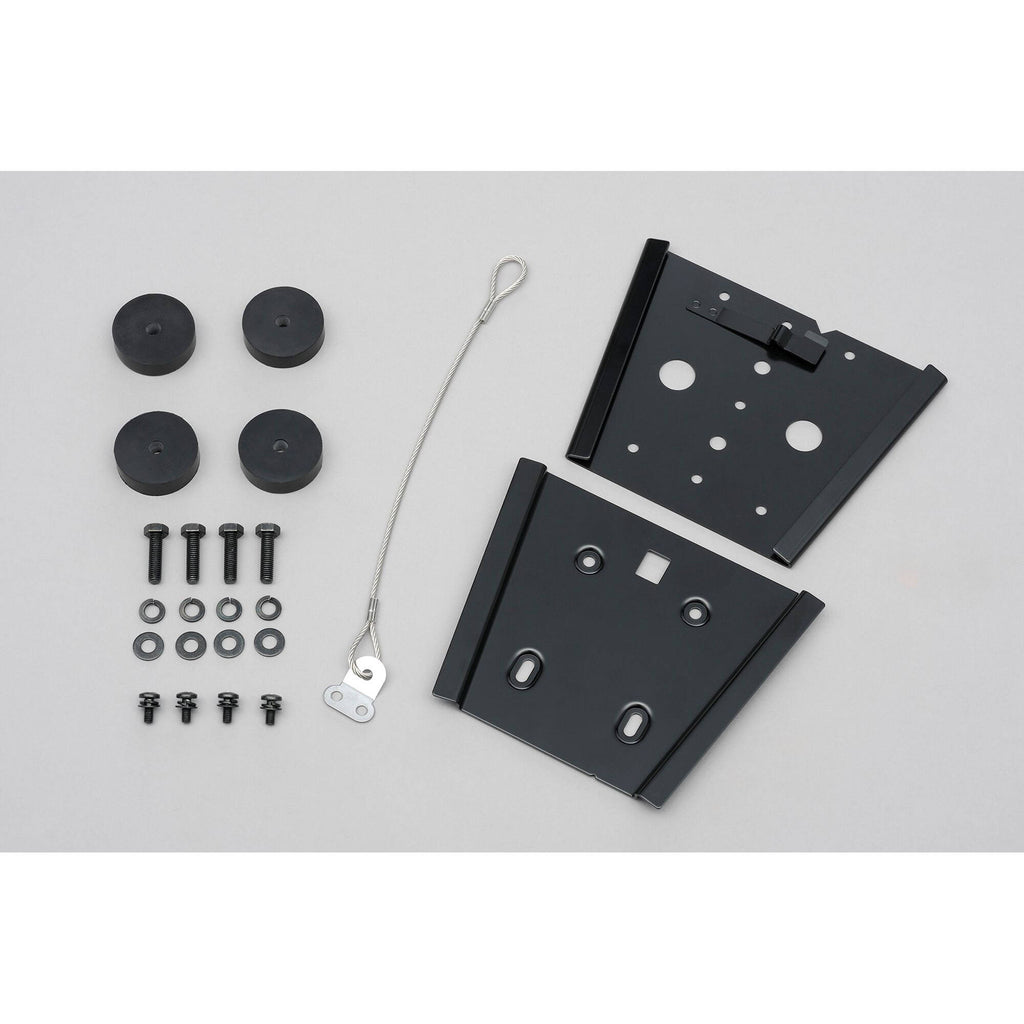

Flexible Mounting

VXS speakers come with a dedicated bracket for safe, trouble-free speaker installation. Speakers can be mounted temporarily, freeing your hands to adjust mounting angles, which can now be configured consistently with ease thanks to the gear guides in the bracket connectors. Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets.

Optimal Sound for Installations

Both the VXC and VXS series feature newly customized transducers with large, powerful magnetic circuits that increase driving and braking force substantially, as well as dedicated tweeter diaphragms and speaker cone paper made from a carefully created blend of materials that help optimize sound reproduction.

Cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low end. From the networking components and the materials used for wiring and soldering, right down to the optimal placement of acoustic absorption material, a great deal of attention has been paid to even the smallest details of the series' design.

Speaker Design

Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction?effectively enhancing sound quality and speaker performance without disturbing the interior d?cor of the installation. This concept is evident in the hexagonal design featured on the grille that actually improves sound clarity by raising the aperture ratio. Similarly, the smooth curves of the surface-mount cabinet's simple yet sophisticated design allow the speakers to be mounted closely to the wall, while still fully capable of panning and tilting to target service areas.

Paintable Speakers for Your Unique Room

The VXS series comes with paintable speaker bodies, grilles, and brackets. Not only filling the desired room with premium sound, VXS series enhances the design of interior by painting its grille in any color, such as a light color, deep color, or simply the best matching color.

Items Included

Yamaha VXS10S 10" Surface-Mounted Subwoofer (White)
Limited 5-Year Manufacturer Warranty

Additional Resources

No additional resources available

Yamaha VXS10 Specs

Key Specs

Active/Passive	Passive
Number of Included Speakers	1
Speaker Configuration	Subwoofer
Power Handling	100 W 200 W Program
Impedance	8 Ohms
LF Driver	10" / 25.4 cm
Frequency Range	45 Hz to 250 Hz -10 dB
Color	Black

Speaker

Active/Passive	Passive
Number of Included Speakers	1
Speaker Configuration	Subwoofer
Power Handling	100 W 200 W Program
Impedance	8 Ohms
Enclosure Type	Bass-Reflex

Drivers

LF Driver	10" / 25.4 cm
LF Voice Coil	Dual

Performance

Frequency Range	45 Hz to 250 Hz -10 dB
Maximum SPL	125 dB SPL (Peak)
Sensitivity	96 dB SPL
Coverage Angle	Omnidirectional
Protections	Overload

Connectivity

Inputs/Outputs

Block 4-Pin Speaker Input/Thru (Locking, Removable)
Block 4-Pin Speaker Output (Locking, Removable)

Physical

Certifications	CE, EAC, RoHS
Color	Black
Mounting	Bracket Point
Construction Material	MDF
Dimensions	19.7 x 15.3 x 10.2" / 50 x 38.9 x 25.9 cm
Weight	36.4 lb / 16.5 kg
