Description
Yamaha VXH6 Overview

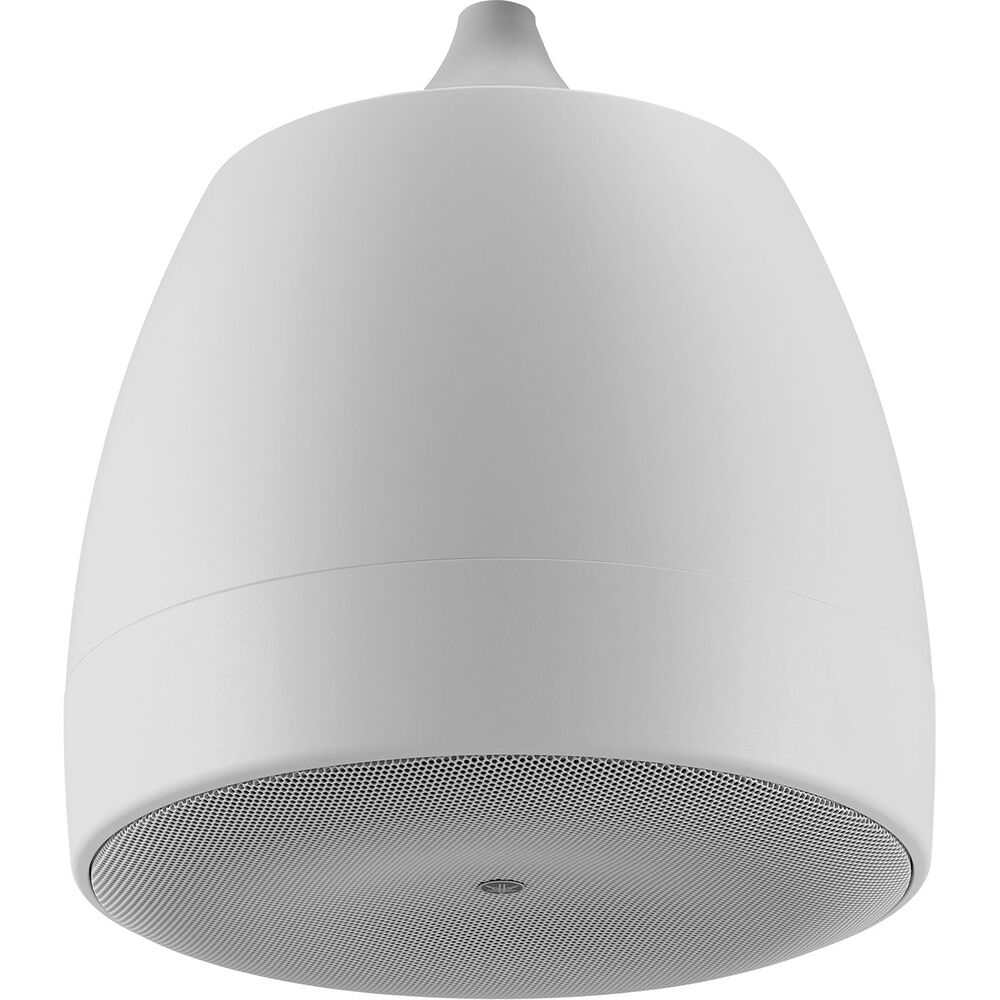

Ideal for background music and vocal reproduction in spaces with open-structure or sloped ceilings, the Yamaha VXH6 is a pendant loudspeaker with a coaxial 6.5" cone driver and 1" soft-dome tweeter. Sporting a wide 120? conical dispersion, this loudspeaker is an excellent choice for low-hanging suspensions in indoor or outdoor environments.

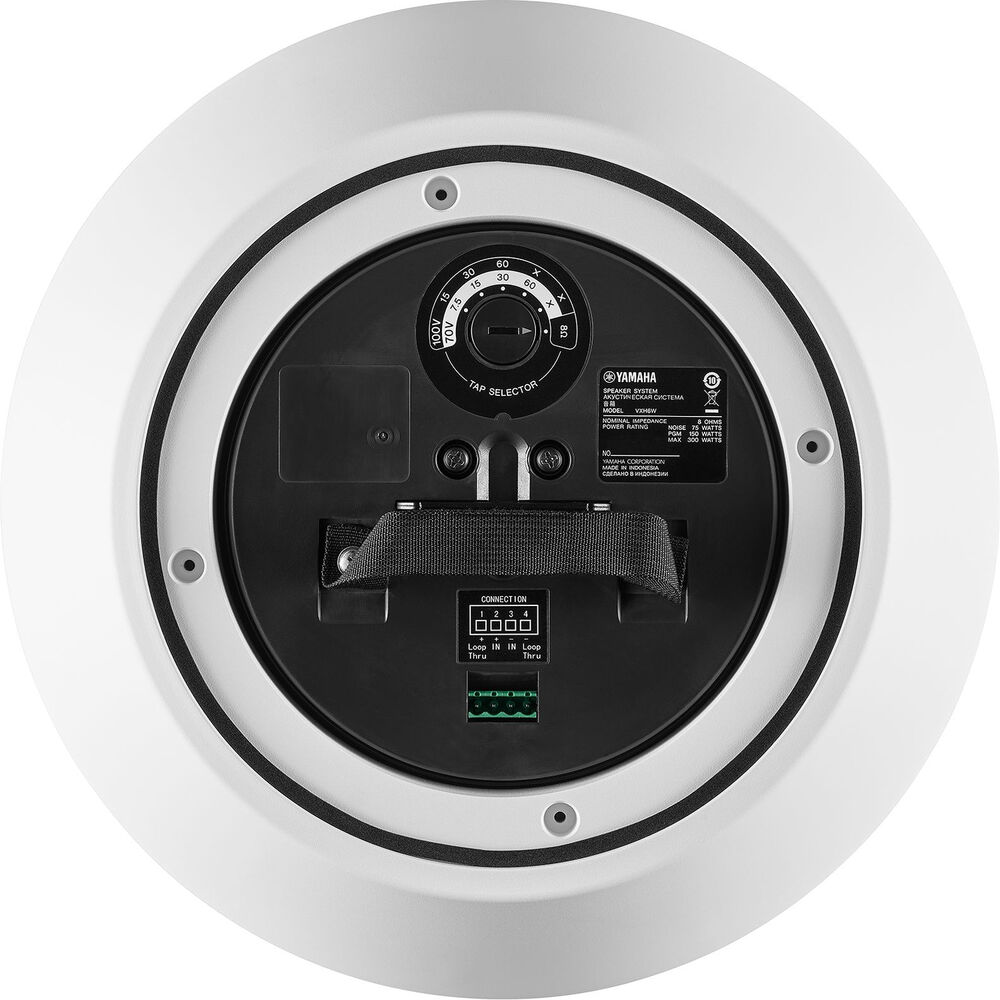

The VXH6 offers up to a 300W peak power handling. The integrated 60W 70/100V multi-tap transformer also features an 8-ohm bypass, enabling for both high- or low-impedance connections to audio installations. Overload protection prevents damage to drivers and your audio network. With an IP45 rating, this pendant loudspeaker is safe from water and dust, making it viable for use in outdoor spaces. The grille and magnetic catches can be painted, making it easy to seamlessly blend this loudspeaker into your decor. The VXH6 includes Gripple suspension kit, a back cover set, a block connector, and a cushion seal.
- VHX series speakers are IP45 rated for use in a wide range of environments, including outdoor spaces
- A built-in carrying band makes the speaker easy to carry, but also increases safety when working on a step ladder

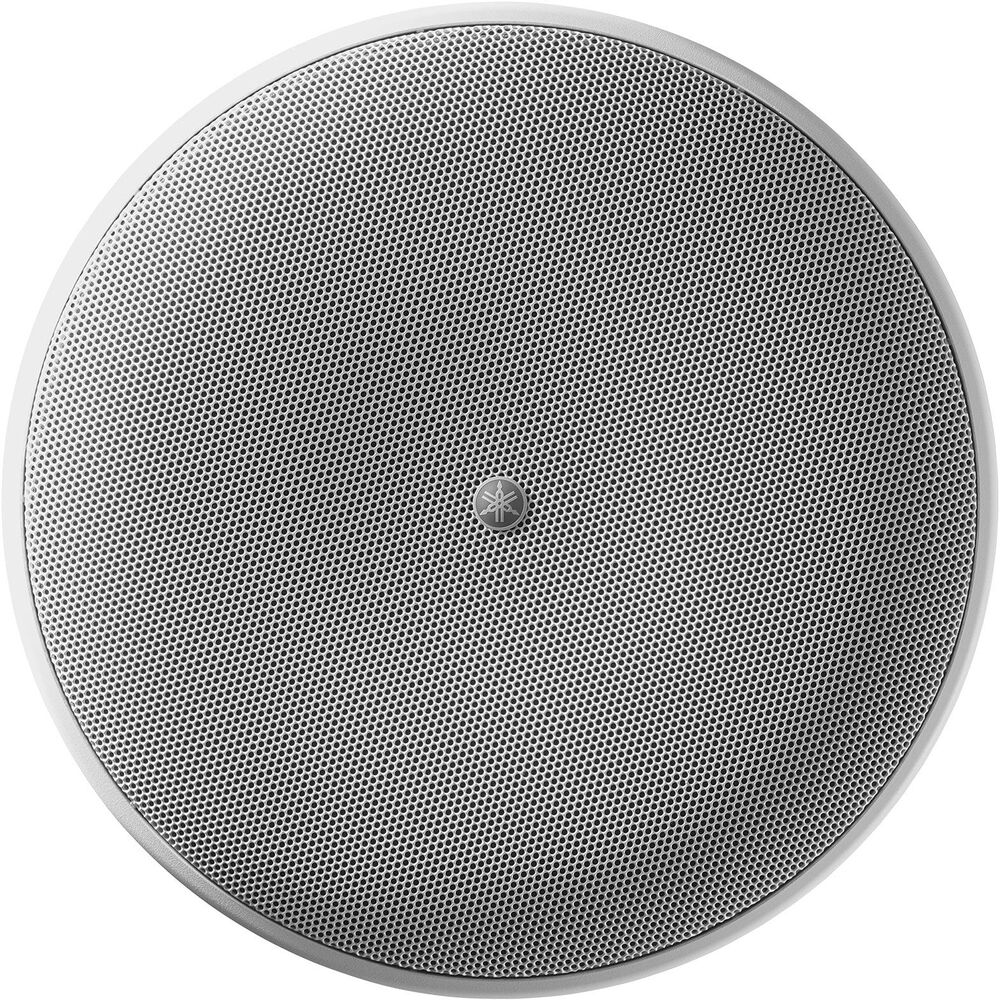

- The supplied grille can be painted any color to match interior decor
Items Included
- Yamaha VXH6 Coaxial 6.5" 2-Way Pendant Loudspeaker (White)

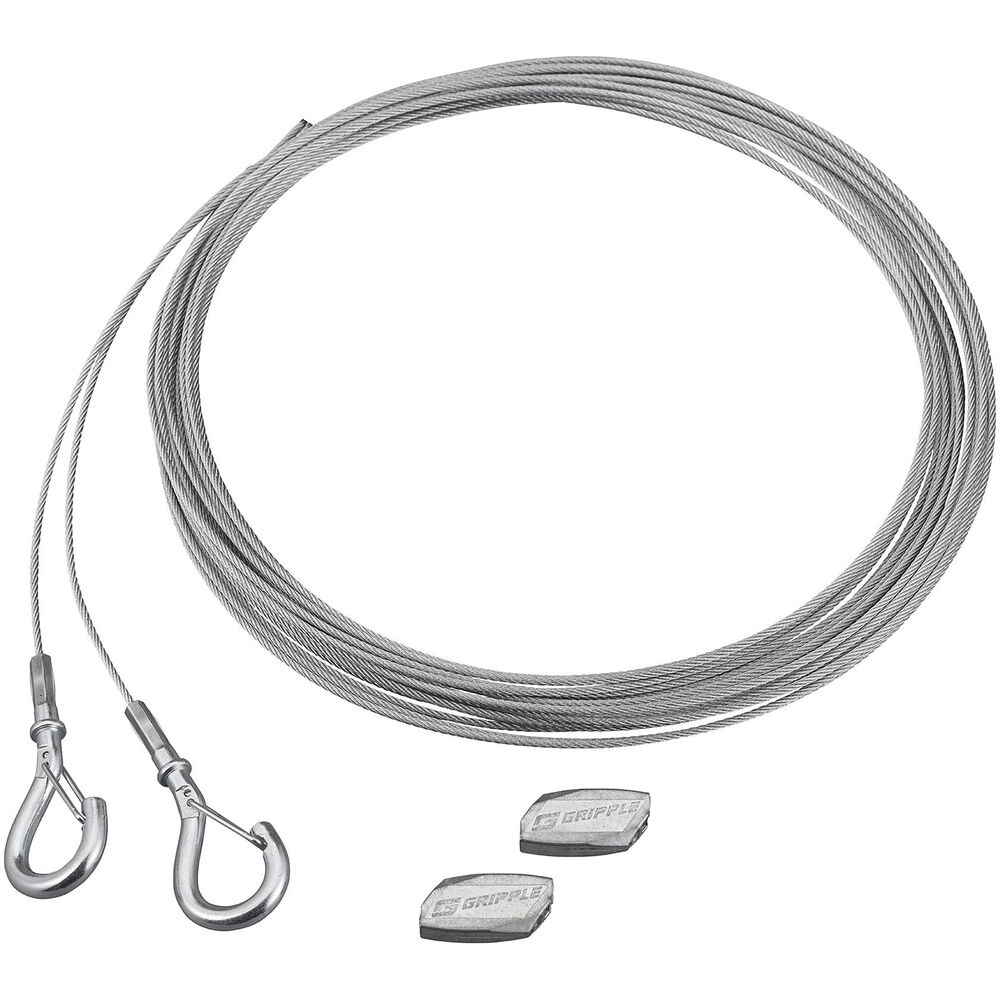

- Gripple Kit
- Back Cover Set
- Block Connector
- Cushion Seal
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Yamaha VXH6 Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
75 W
150 W Program 300 W Peak |
| Constant Voltage / Transformer Taps |
70 V
60 / 30 / 15 / 7.5 W or 8 Ohms Bypass 100 V 60 / 30 / 15 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| HF Driver |
1" / 2.5 cm Soft-Dome Tweeter
|
| LF Driver |
6.5" / 16.5 cm
|
| Frequency Range |
55 Hz to 20 kHz -10 dB
|
| Color |
White
|
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
75 W
150 W Program 300 W Peak |
| Constant Voltage / Transformer Taps |
70 V
60 / 30 / 15 / 7.5 W or 8 Ohms Bypass 100 V 60 / 30 / 15 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Transformer Wattage |
60 W
|
| Enclosure Type |
Bass-Reflex
|
| HF Driver |
1" / 2.5 cm Soft-Dome Tweeter
|
| LF Driver |
6.5" / 16.5 cm
|
| Frequency Range |
55 Hz to 20 kHz -10 dB
|
| Maximum SPL |
118 dB SPL (Peak)
|
| Sensitivity |
93 dB SPL
|
| Coverage Angle |
120? Conical
|
| Crossover |
3 kHz
|
| Protections |
Overload
|
| Inputs/Outputs |
1x Block 4-Pin Speaker Input/Thru (Locking, Removable)
|
| Maximum Wire Gauge |
12 AWG
|
| Certifications |
CE, NFPA70, RoHS, UL1480A
|
| Environmental Resistance |
Dust/Water-Resistant (IP45)
|
| Color |
White
|
| Mounting |
Suspension
|
| Dimensions |
14.9 x 13.4" / 37.9 x 34.1 cm
|
| Weight |
12.6 lb / 5.7 kg
|
