Description
Yamaha VXC2 Overview

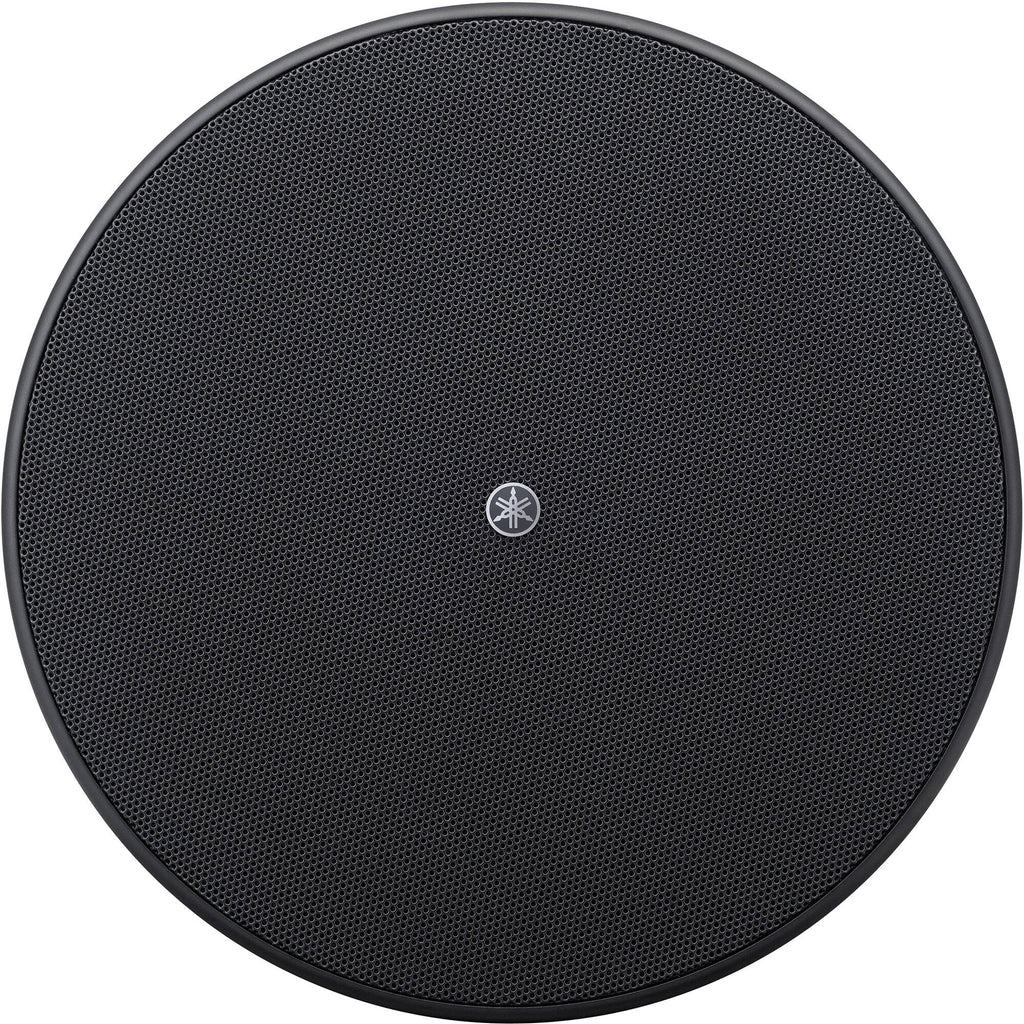

Ideal for bars, restaurants, hotels, museums, and many other commercial spaces with limited ceiling clearance, the Yamaha VXC3F is a low-profile, ceiling-mounted loudspeaker featuring a full-range 3.5" driver. With a wide 140? conical coverage and optimized bass-reflex design, this loudspeaker provides a firm, tight low end while covering a wide area with only a single speaker.

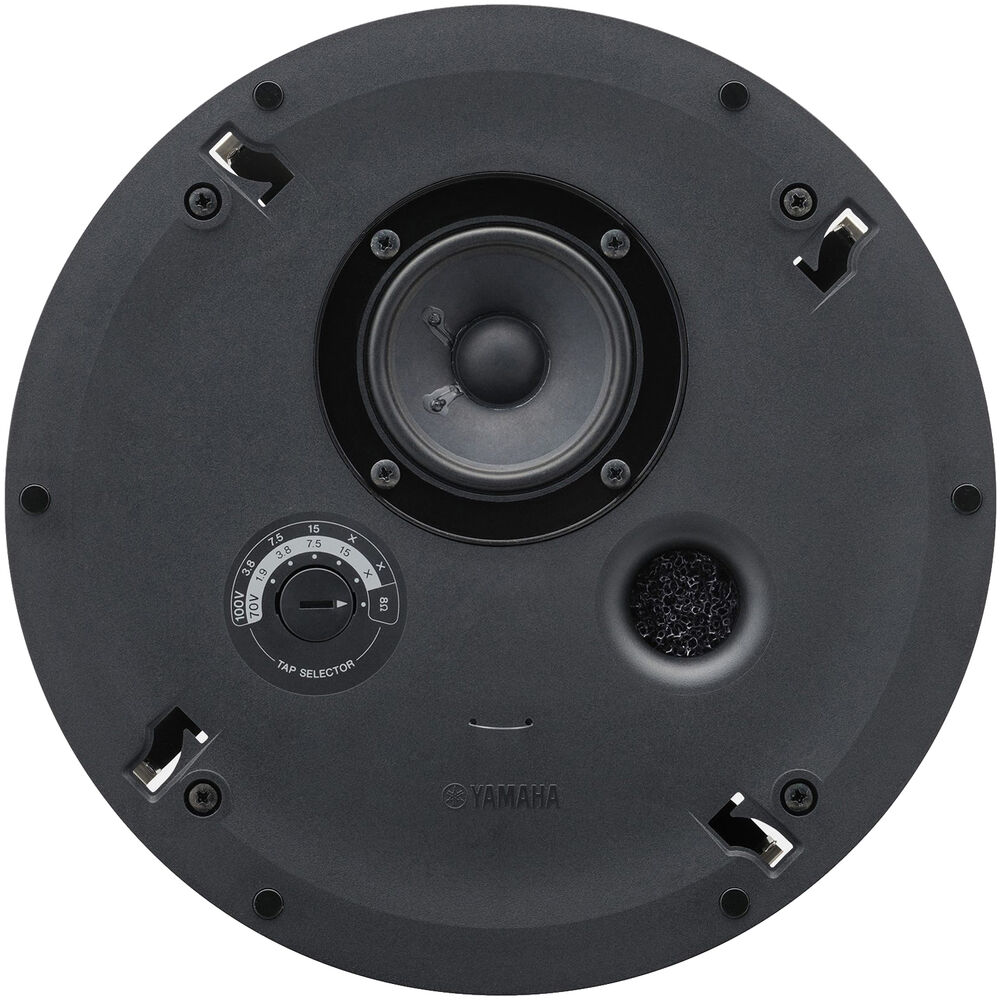

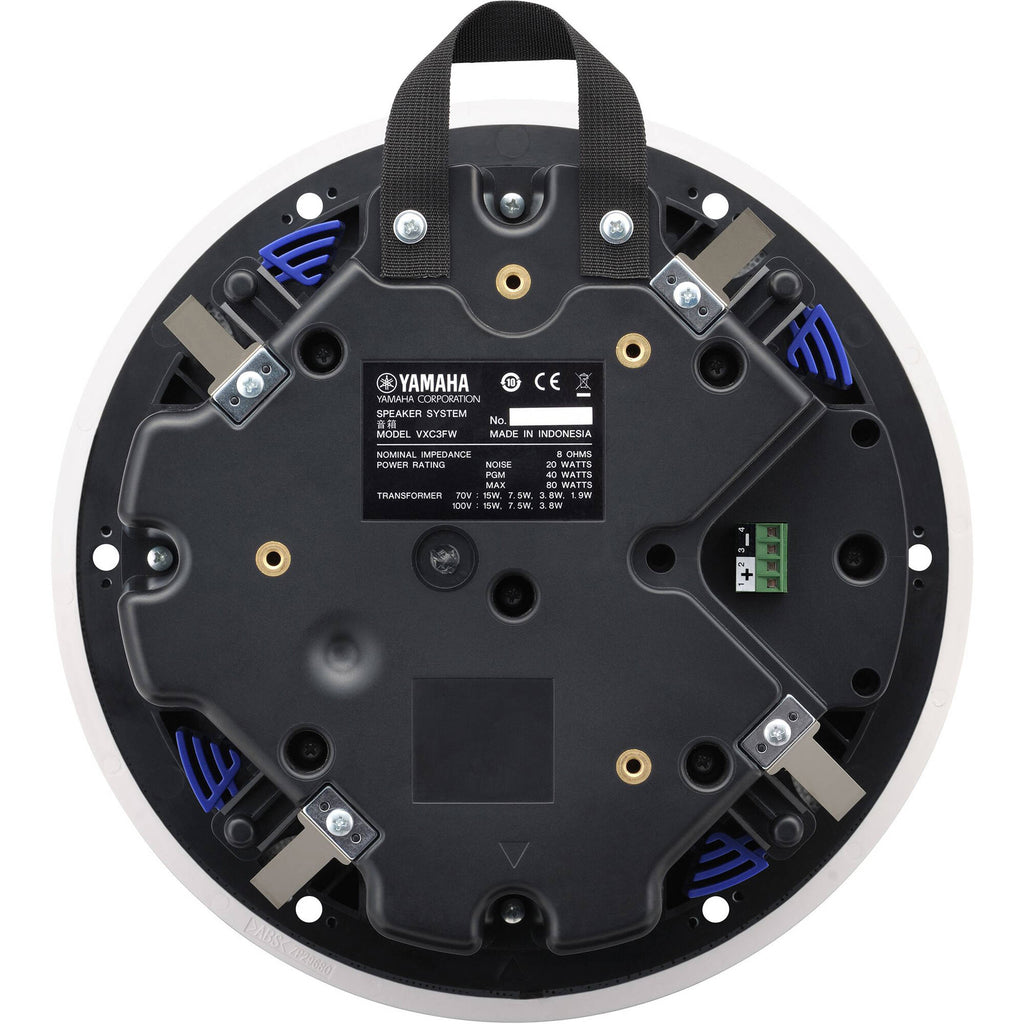

The VXC3F sports a 15W 70/100V multi-tap transformer with an 8-ohm bypass option for handling both low- and high-impedance audio installations. This loudspeaker has a max power handling of 80W peak. Overload protection is built in to ensure protection of your driver and the audio network. Input and thru connections are available via 4-pin block. With a light weight, a flexible carrying handle, and anti-drop tabs, this loudspeaker is easy to carry and safe to install. The VXC3F includes two paintable speaker grilles, two block plugs, two terminal covers, two O-rings, four tile rails, four screws, and a cutout template.
- Restaurants
- Cafes
- Bars
- Retail Stores
- Spas
- Museums
- Hotels
- Ball rooms

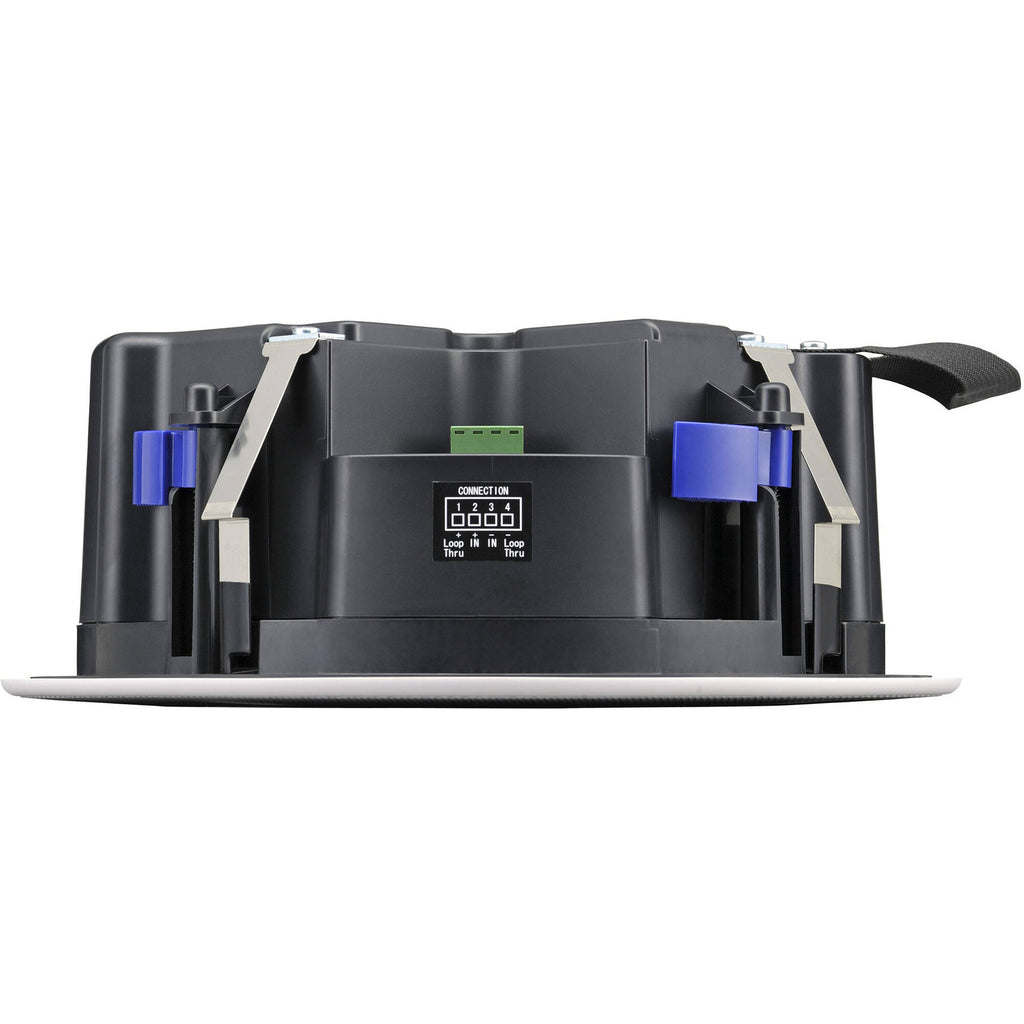

An anti-drop tab mechanism securely holds the speaker in place so that the installation can proceed safely and efficiently. There?s also a release lever that allows the speaker to be smoothly removed from the ceiling as required. Double-threaded screws used for the speaker clamp mechanism allow the clamps to be tightened twice as fast as conventional screws.
Items Included

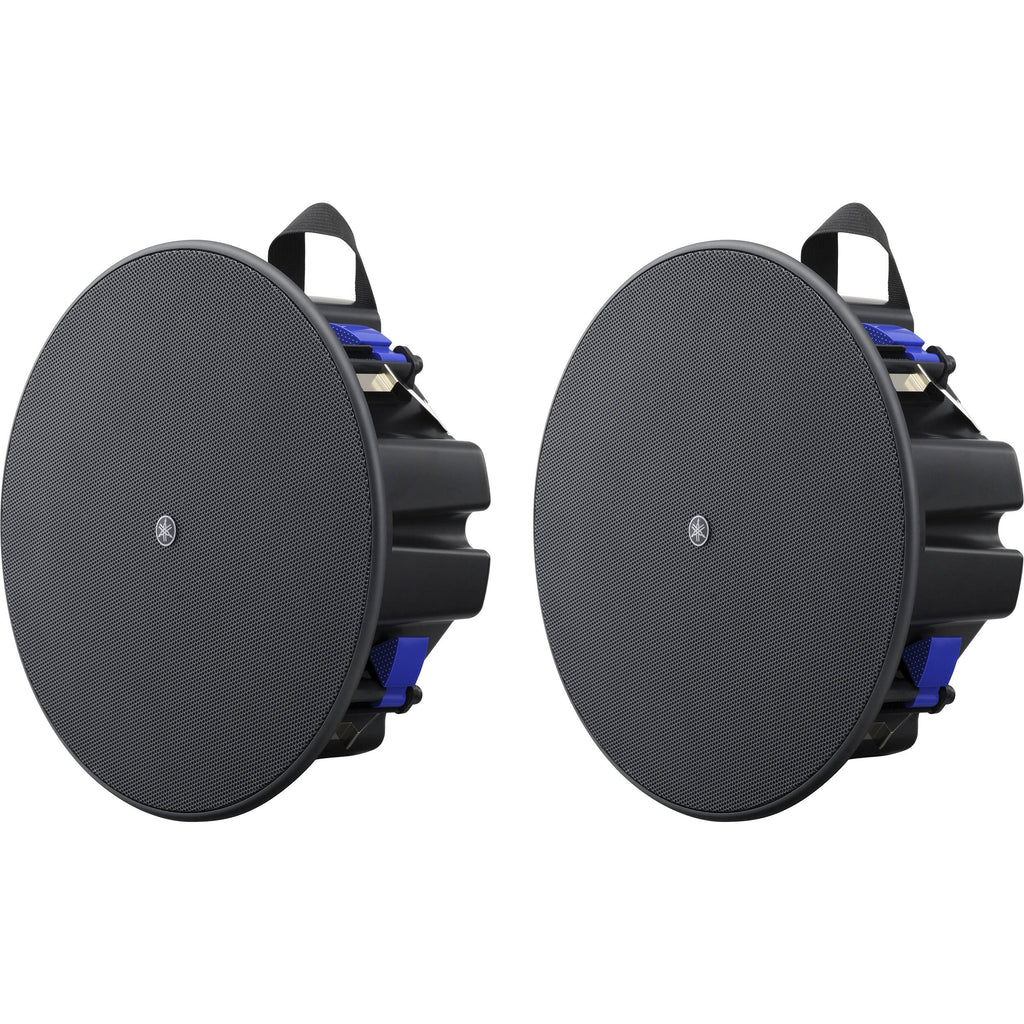

- Yamaha VXC3F 3.5" Full-Range Low-Profile Ceiling Loudspeaker (Black, Pair)
- 2 x Grille
- 2 x Block Plug
- 2 x Terminal Cover
- 2 x O-Ring
- 4 x Tile Rail
- 4 x Screw
- Cutout Template
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Yamaha VXC2 Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
15 W
30 W Program 60 W Peak |
| Constant Voltage / Transformer Taps |
70 V
15 / 7.5 / 3.8 / 1.9 / 1 W or 8 Ohms Bypass 100 V 15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Full-Range Driver |
3.5" / 8.9 cm
|
| Frequency Range |
71 Hz to 20 kHz -10 dB
|
| Color |
Black
|
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
15 W
30 W Program 60 W Peak |
| Constant Voltage / Transformer Taps |
70 V
15 / 7.5 / 3.8 / 1.9 / 1 W or 8 Ohms Bypass 100 V 15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Transformer Wattage |
15 W
|
| Enclosure Type |
Bass-Reflex
|
| Shielded |
No
|
| Full-Range Driver |
3.5" / 8.9 cm
|
| Frequency Range |
71 Hz to 20 kHz -10 dB
|
| Maximum SPL |
106 dB SPL
|
| Sensitivity |
87 dB SPL
|
| Coverage Angle |
140? Conical
|
| Protections |
Overload
|
| Inputs/Outputs |
1x Block 4-Pin Speaker Input/Thru (Locking, Removable)
|
| Maximum Wire Gauge |
12 AWG
|
| Certifications |
CE, EAC, NFPA70, RoHS, UL1480
|
| Environmental Resistance |
No
|
| Color |
Black
|
| Mounting |
Ceiling Tile
|
| Cutout Depth |
3" / 7.6 cm
|
| Cutout Size |
9.7" / 24.7 cm
|
| Mount Surface Thickness |
0.2 to 1.5" / 0.5 to 3.7 cm
|
| Rotation Range |
No
|
| Construction Material |
ABS, Steel
|
| Dimensions |
11.2 x 4.4" / 28.5 x 11.2 cm
|
| Weight |
5.5 lb / 2.5 kg
|
