Description

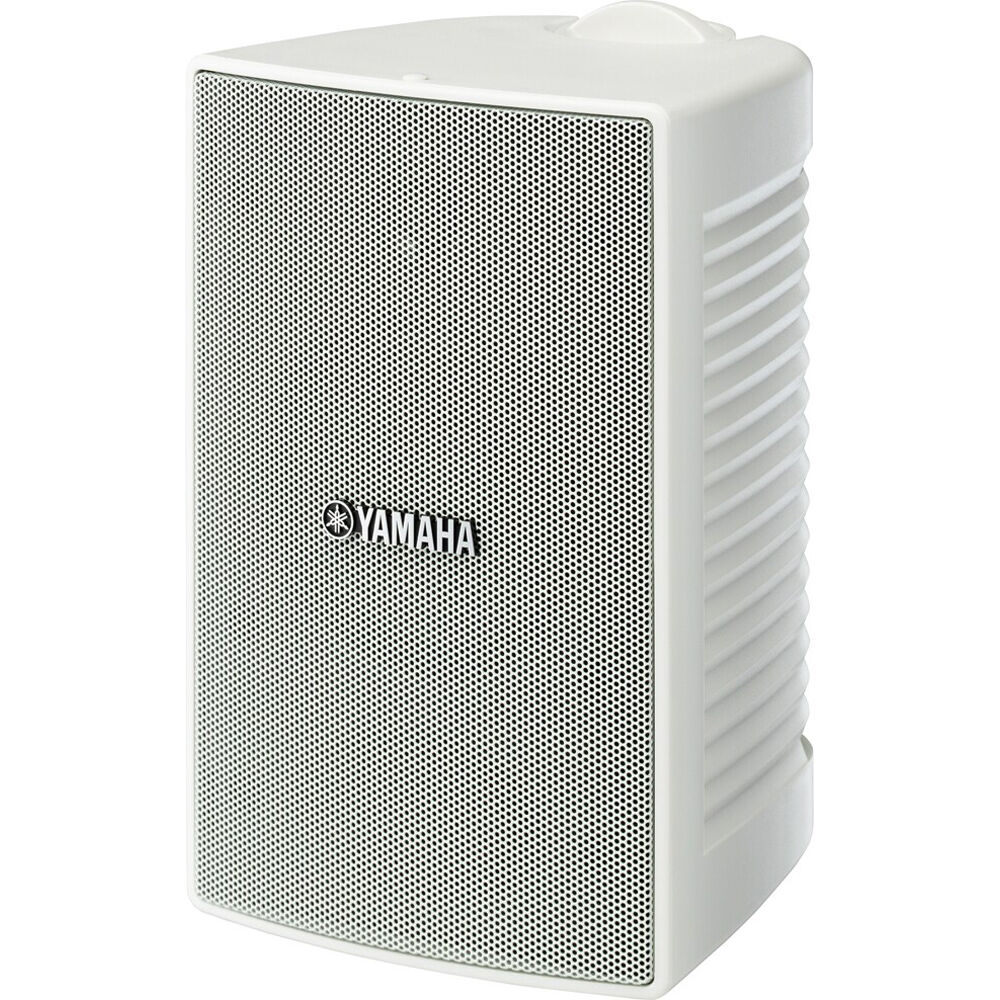

Yamaha VS4W Overview
Ideal for commercial audio installs in restaurants, bars, schools, hotels, and much more, the Yamaha VS4 is a highly adaptable passive, 2-way, surface-mounted loudspeaker sold in a pair. These speakers offer a 4" LF driver, 1" tweeter, and up to 60W peak power handling, providing rich and high-fidelity sound reproduction.

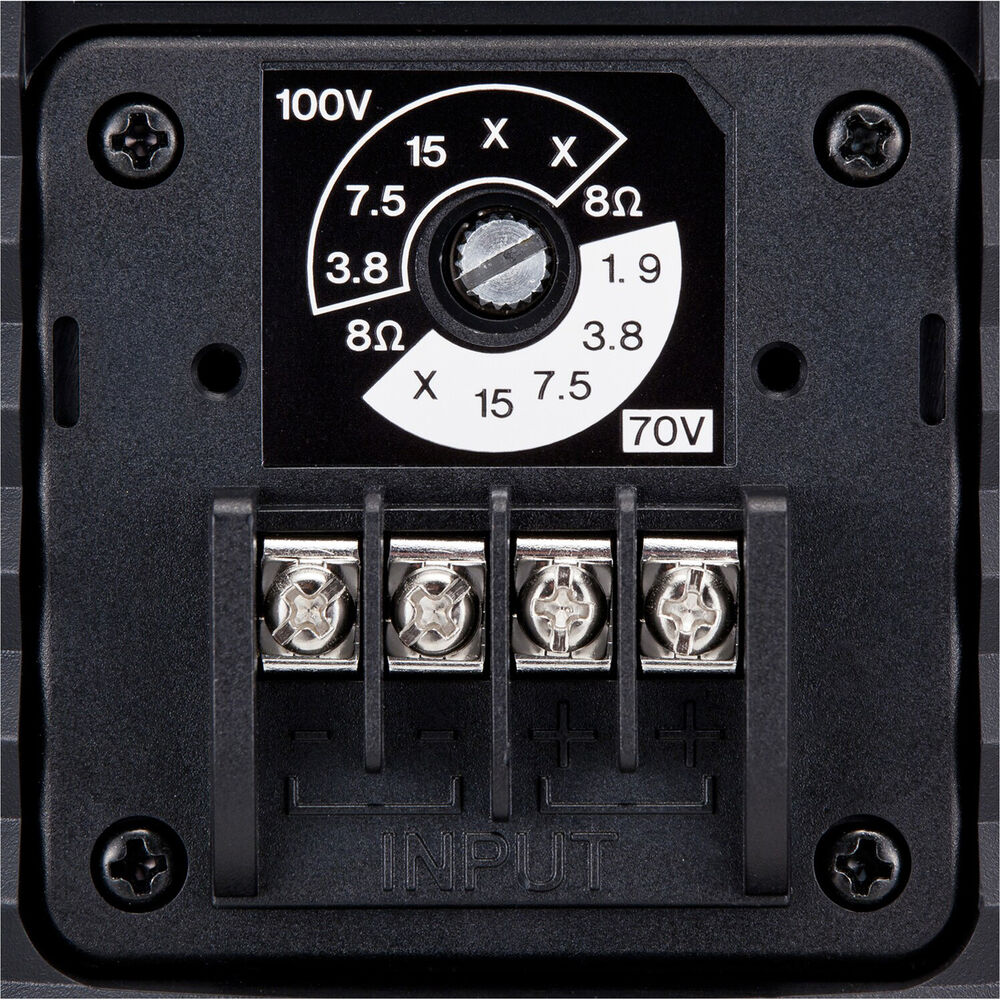

The VS4 supports both high-impedance 70/100V speaker connections via the integrated 15W multi-tap transformer or a selectable 8-ohm low-impedance bypass for direct connections. The dedicated U-bracket offers flexible surface mounting with both vertical and horizontal positioning options. The VS4 delivers a 110 x 110? coverage. With an IPX3 water resistance rating and a paintable design, these loudspeakers can easily fit into any style or space, including covered outdoor environments. The VS4 includes U-brackets for mounting, retaining knobs, terminal covers, and terminal cover screws for protecting the barrier strip inputs.
Items Included
- Yamaha VS4 4" 2-Way Surface-Mount Loudspeaker (White, Pair)
- 2 x U-Bracket
- 4 x Retaining Knob
- 2 x Terminal Cover
- 4 x Terminal Cover Screw
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Yamaha VS4W Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
2-Way
|
| Power Handling |
15 W
30 W Program 60 W Peak |
| Constant Voltage / Transformer Taps |
70 V
15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass 100 V 15 / 7.5 / 3.8 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| HF Driver |
1" / 2.5 cm Tweeter
|
| LF Driver |
4" / 10.2 cm Woofer
|
| Frequency Range |
100 Hz to 20 kHz
|
| Color |
White
|
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
2-Way
|
| Power Handling |
15 W
30 W Program 60 W Peak |
| Constant Voltage / Transformer Taps |
70 V
15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass 100 V 15 / 7.5 / 3.8 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Transformer Wattage |
15 W
|
| Enclosure Type |
Bass-Reflex
|
| HF Driver |
1" / 2.5 cm Tweeter
|
| LF Driver |
4" / 10.2 cm Woofer
|
| Frequency Range |
100 Hz to 20 kHz
|
| Maximum SPL |
106 dB SPL (Peak)
|
| Sensitivity |
88 dB SPL
|
| Coverage Angle |
110? H x 110? V
|
| Crossover |
15 kHz (Passive)
|
| Protections |
Overload
|
| Inputs/Outputs |
2x Barrier Strip Speaker Input
|
| Certifications |
EN55103
|
| Environmental Resistance |
Water-Resistant (IPX3)
|
| Color |
White
|
| Mounting |
Bracket Point
|
| Construction Material |
Steel
|
| Dimensions |
9.6 x 6.8 x 6" / 243 x 172 x 152 mm
|
| Weight |
4.2 lb / 1.9 kg
|
