Description

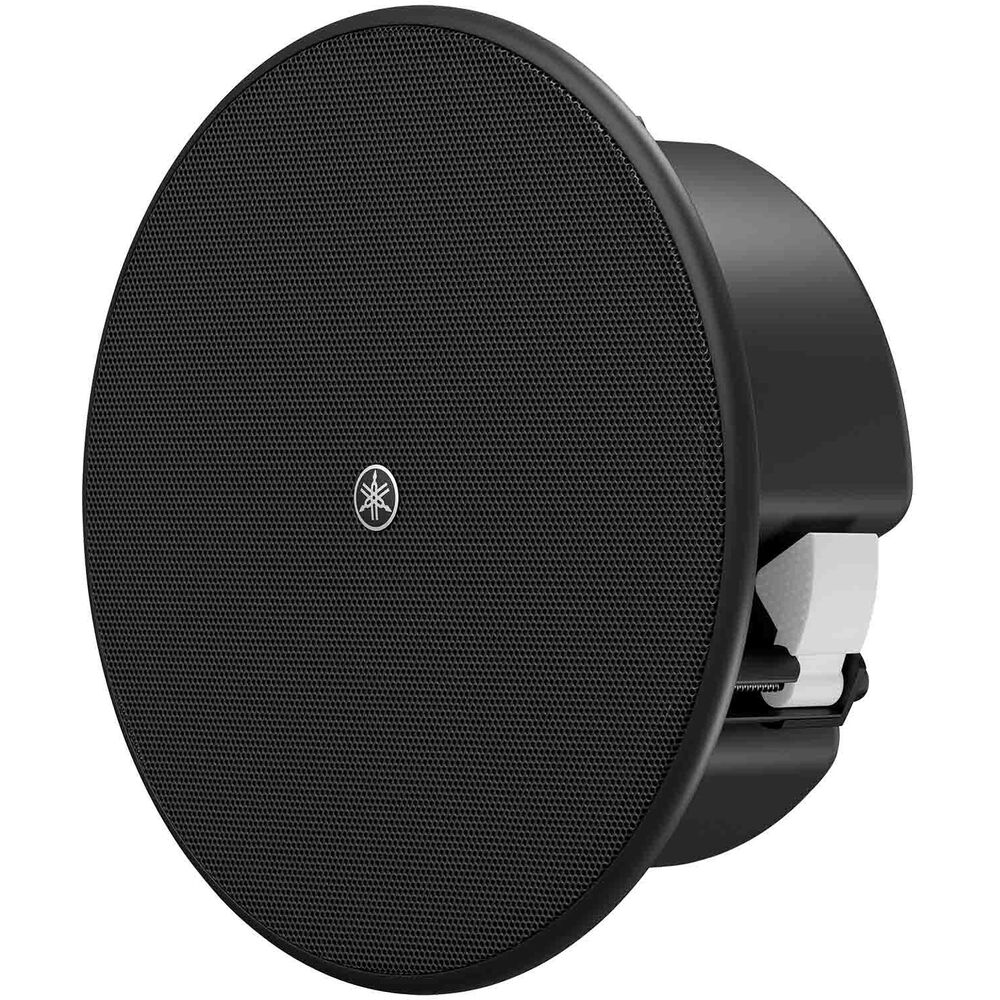

Yamaha VC4 Overview
Engineered to provide crystal-clear background music and voice reproduction for installed audio systems, the Yamaha VC4 is a passive 2-way coaxial loudspeaker featuring one 4" cone and one 0.8" soft-dome tweeter. With a low-profile design ideal for limited ceiling space and support for either high- or low-impedance systems, this loudspeaker can facilitate a range of setups.

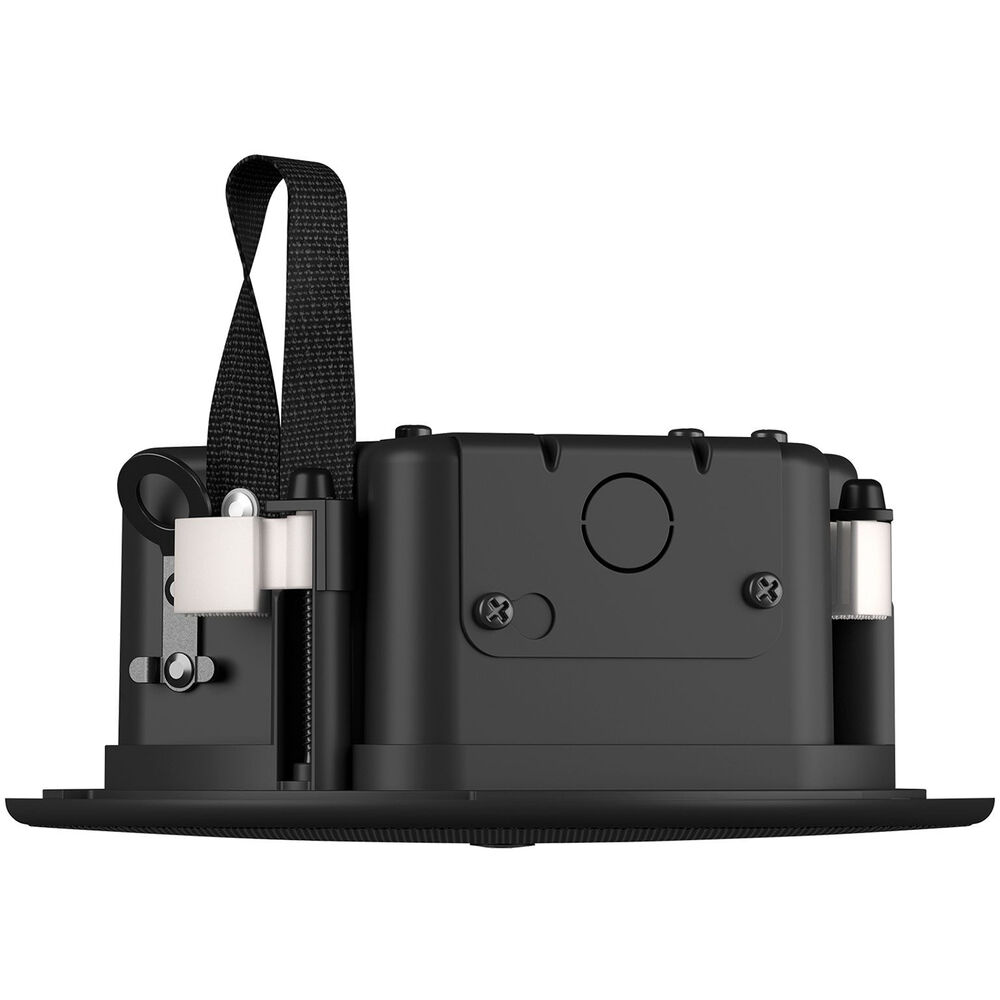

The VC4 sports a 6W 70/100V multi-tap transformer and can also be used in a 16-ohm low-impedance direct connection. The 160? conical dispersion provides a very wide spot coverage that can be used to ensure even coverage of large or complex spaces. The VC4 can handle up to 60W of power from an amplifier. Installation is easy and fast, with a built-in carrying band for safety and double-threaded speaker clamp screws for rapid tightening. The grilles can be painted to match the decor of any environment, and they easily attach to the loud speaker via magnetic catches. The VC4 includes a C-ring, two tile rails, a grille, a safety wire, and a ceiling cutout template.
- Shopping malls
- Office buildings
- Restaurants
- Healthcare facilities
- Transportation terminals
Items Included
- Yamaha VC4 2-Way 4" Coaxial Ceiling Loudspeaker (Black)
- C-Ring
- 2 x Tile Rail
- Grille
- Safety Wire
- Cutout Template
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Yamaha VC4 Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
15 W
30 W Program 60 W Peak |

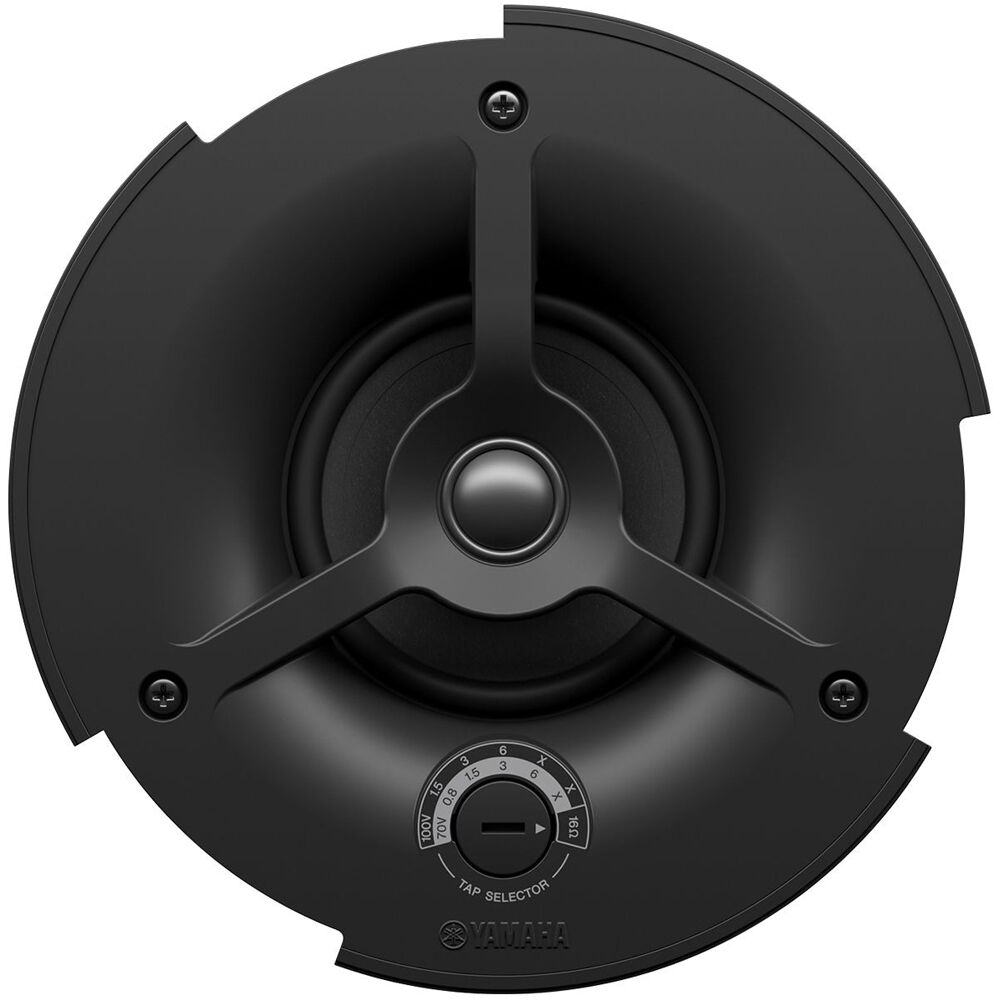

| Constant Voltage / Transformer Taps |
70 V
6 / 4 / 1.5 / 0.8 W or 16 Ohms Bypass 100 V 6 / 3 / 1.5 W or 16 Ohms Bypass |
| Impedance |
16 Ohms
|
| HF Driver |
1x 0.8" / 2 cm Soft-Dome Tweeter
|
| LF Driver |
1x 4" / 10.2 cm
|
| Frequency Range |
121 Hz to 20 kHz -10 dB
|
| Color |
Black
|
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
2-Way
|
| Power Handling |
15 W
30 W Program 60 W Peak |
| Constant Voltage / Transformer Taps |
70 V
6 / 4 / 1.5 / 0.8 W or 16 Ohms Bypass 100 V 6 / 3 / 1.5 W or 16 Ohms Bypass |
| Impedance |
16 Ohms
|
| Transformer Wattage |
6 W
|
| Enclosure Type |
Sealed
|
| HF Driver |
1x 0.8" / 2 cm Soft-Dome Tweeter
|
| LF Driver |
1x 4" / 10.2 cm
|
| Frequency Range |
121 Hz to 20 kHz -10 dB
|
| Maximum SPL |
106 dB SPL (Peak)
|
| Sensitivity |
88 dB SPL (Half-Space)
|
| Coverage Angle |
160? Conical (Half Space)
|
| Protections |
VI Limiting
|
| Inputs/Outputs |
1x Block 4-Pin Speaker Input (Locking, Removable)
1x Block 4-Pin Speaker Thru (Locking, Removable) |
| Certifications |
CE, NFPA70, RoHS, UL1480, UL2043
|
| Color |
Black
|
| Mounting |
Ceiling Tile
|
| Cutout Size |
7.3" / 18.6 cm
|
| Mount Surface Thickness |
0.1 to 1.5" / 0.2 to 3.7 cm
|
| Construction Material |
Metal, Steel
|
| Dimensions |
8.9 x 3.7" / 22.5 x 9.5 cm
|
| Weight |
4.6 lb / 2.1 kg
|
