Description
West Penn 270GY1000 Overview

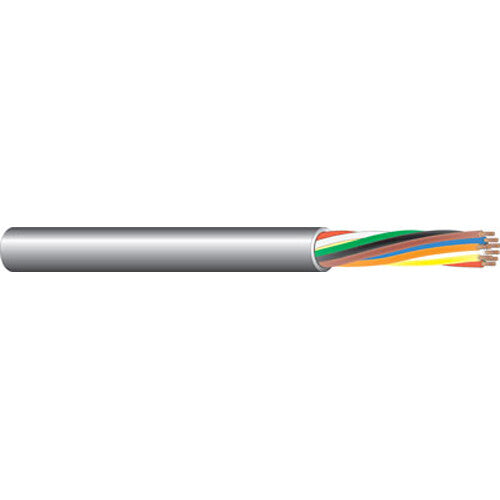

The gray 270 22 AWG 6-Conductor Unshielded Cable from West Penn has a length of 1000'. It also does not have connectors on either end.
UPC: 612825051176
In the Box
- West Penn 270 22 AWG 6-Conductor Unshielded Cable (1000', Gray)
West Penn 270GY1000 Specs
| Connector 1 | None |
| Connector 2 | None |
| Cable Length | 1000' / 152.4 m |
| Conductor Material | Bare Annealed Copper (BAC) |
| Number of Conductors | 6 |
| Wire Gauge | 22 AWG |
| Wire Stranding | 7 x Strands of 30 AWG |
| Outer Diameter | 0.163" / 0.41 cm |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Color | Gray |
| Shielding | None |
| Insulation Type | Thermoplastic Elastomer (TPE) |
| Conductor DC Resistance | 17 Ohms/ft (Up to 1000' / 304.8 m) |
| Maximum Voltage | 300 V (UL) |
| Pulling Tension | 54 lb / 24.5 kg |
| Bend Radius | 1.47" / 3.73 cm |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Certifications | NEC UL, UL1666 Vertical Shaft, CMG, FT4, RoHS *as per Manufacturer |
| Weight | 26 lb / 11.8 kg |
