| ₹ 22925.0 includes GST and import duties. | |
| B2B customers can avail ₹ 3496.06 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

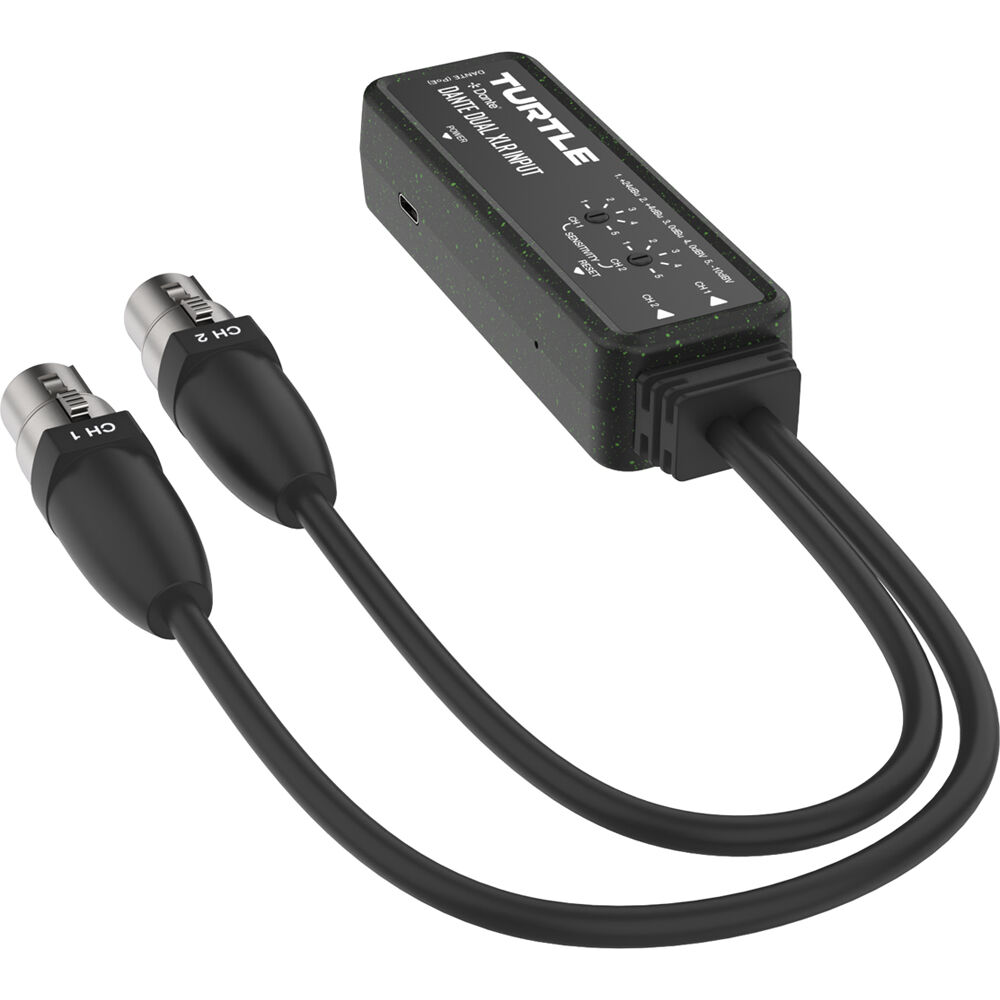

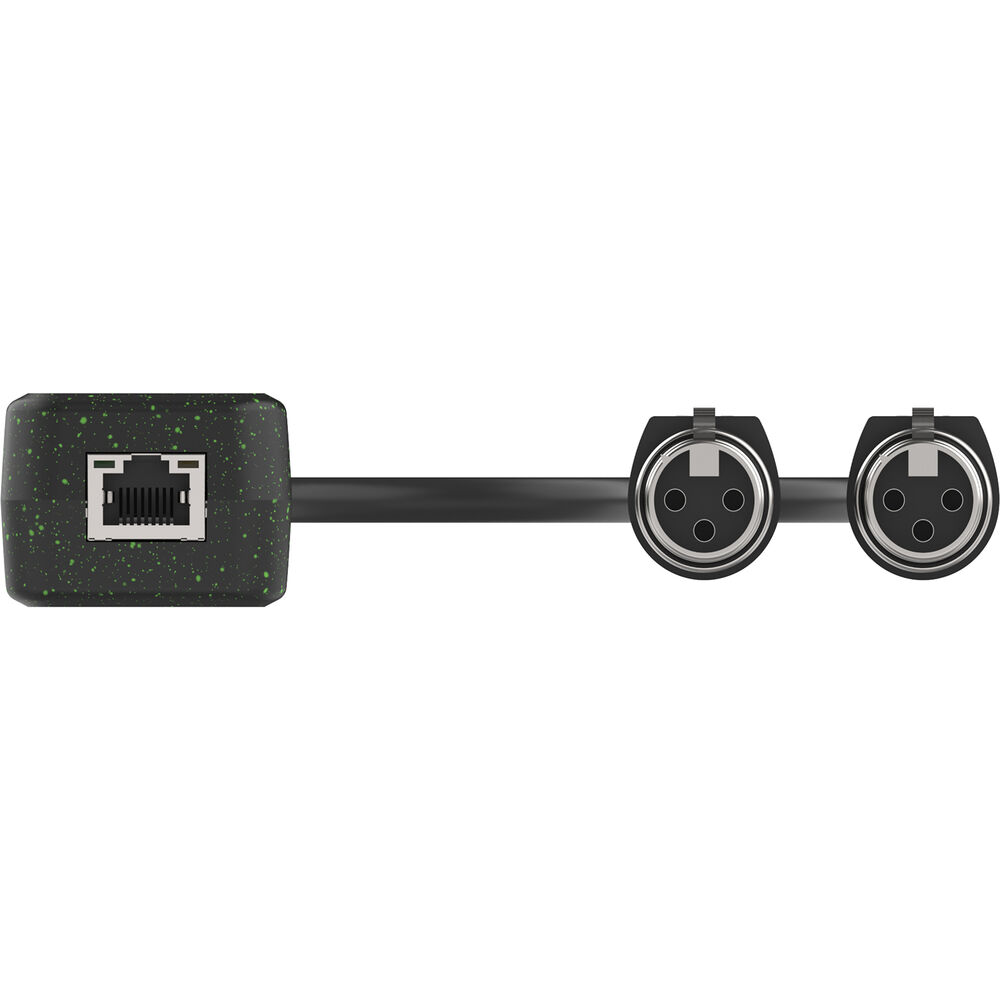

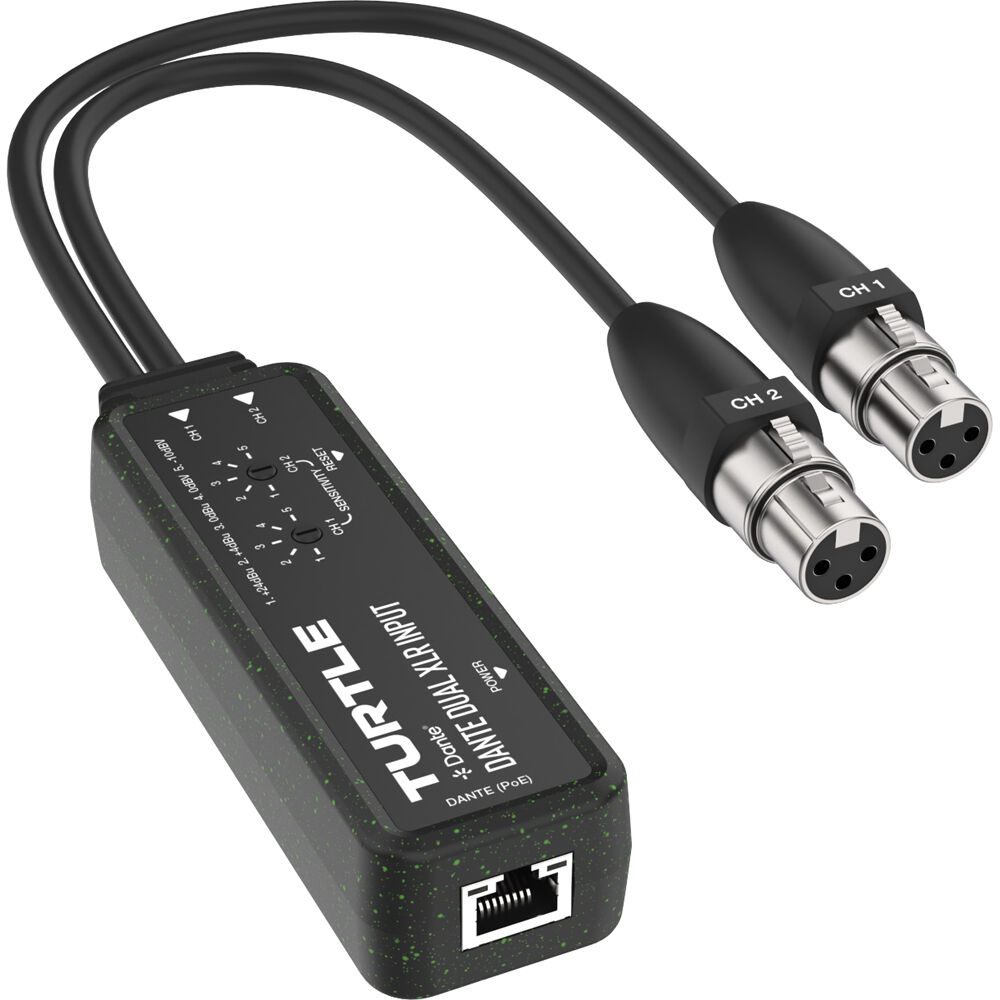

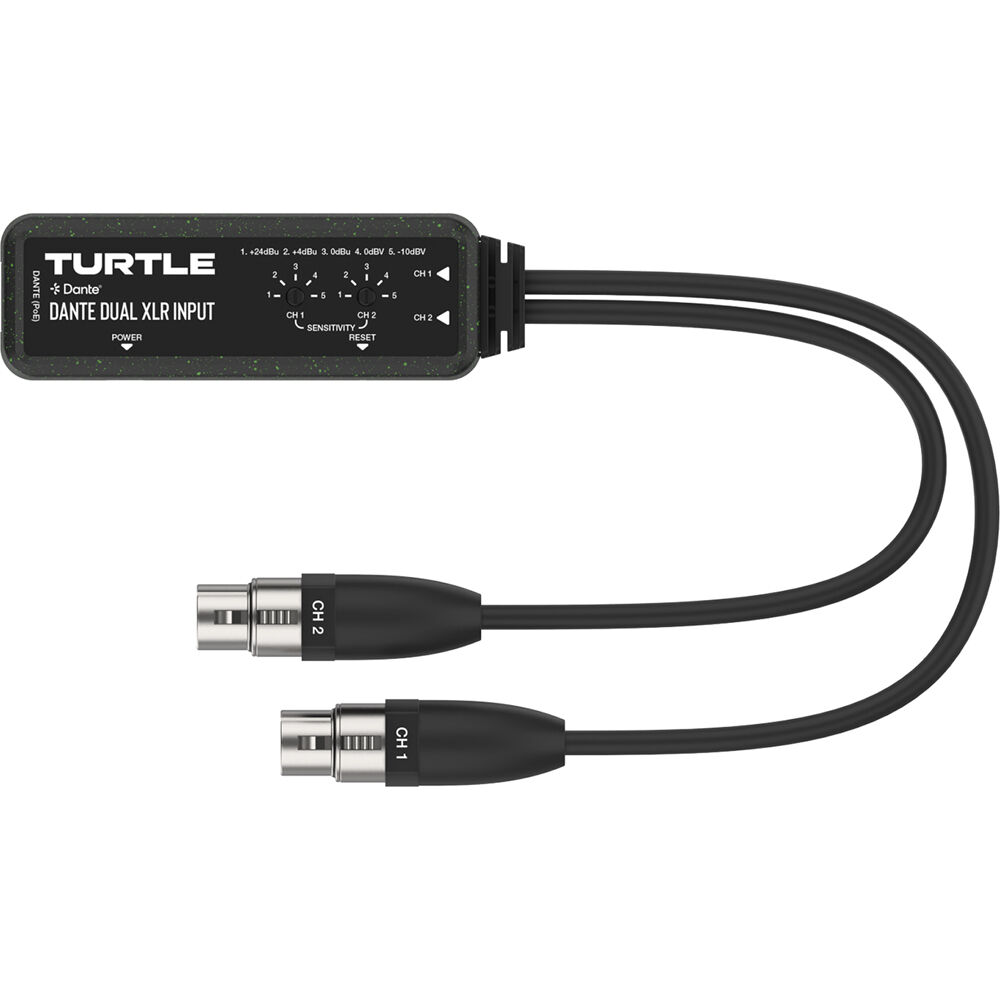

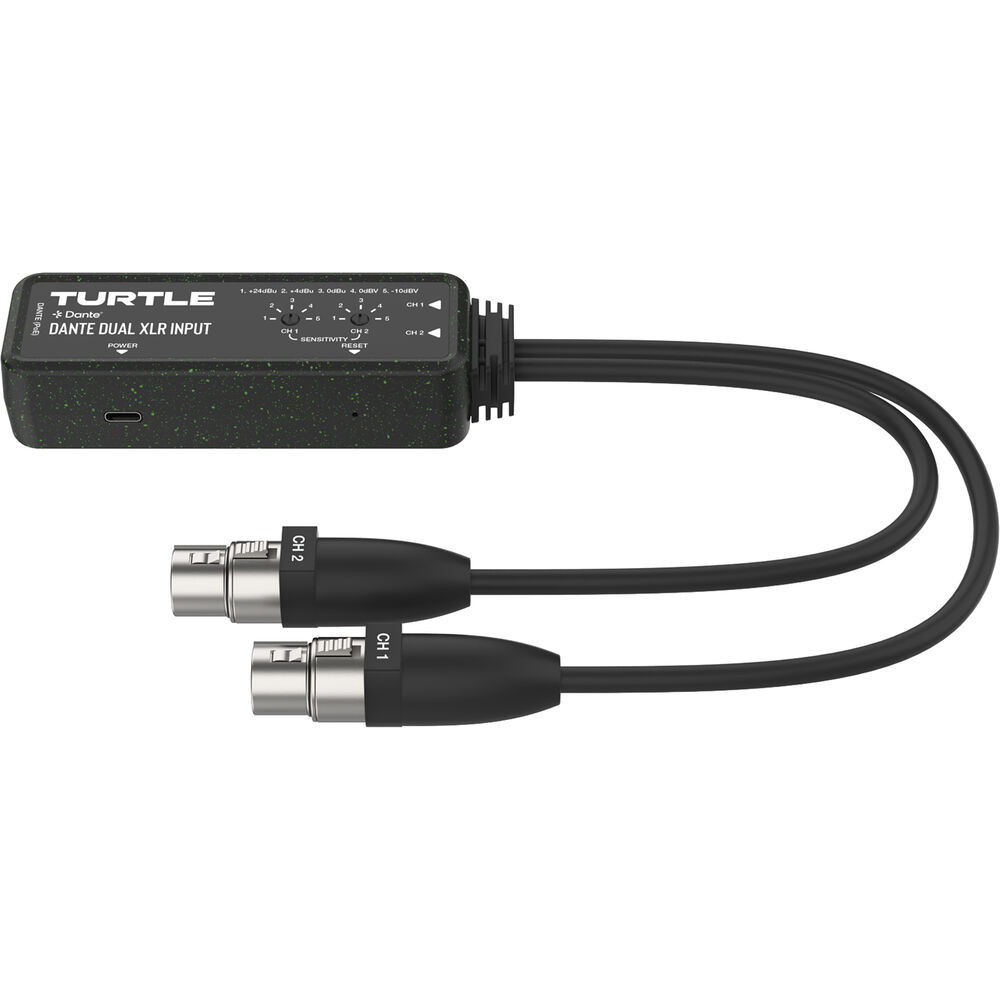

Turtle AV TAV-D2XEN Overview
Enable seamless conversion of your two-channel analog audio to digital Dante with the Dual-Channel Analog XLR to Dante Adapter from Turtle AV. Sporting PTP technology for jitter-free audio and up to 24-bit / 96 kHz sampling, this handy adapter delivers low-latency, pro-quality digital audio for Dante systems.
With the free and convenient Dante Controller Software application, you can select between 1, 2, or 5 ms Dante audio delay rates. Two low-profile knobs allow you to choose between five audio input level settings for each channel. Power can be provided over a dedicated USB-C port or PoE on the RJ45 Dante output connection. Both AES67 and Dante digital outputs are supported over the RJ45 output. This adapter is fully TAA compliant, ensuring US government standards for procurement are met, and thus allowing this adapter to be confidently used for federal contracts.
Items Included
- Turtle AV Dual-Channel Analog Female XLR Input to Dante Adapter
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Turtle AV TAV-D2XEN Specs
| Sample Rates |
16 or 24 Bit
44.1 to 96 kHz |
| Analog Inputs |
2 x XLR Balanced/Unbalanced Female Input
|
| Analog Outputs |
None
|
| Digital Inputs |
None
|
| Digital Outputs |
1 x RJ45 Coaxial Output (Dante)
|
| Other Connectors |
1 x USB-C Input (Power Only)
|
| Maximum Input Level |
+24 dBu
|
| Maximum Output Level |
N/A
|
| Input Impedance |
Balanced: 20 Kilohms
Unbalanced: 10 Kilohms |
| Dynamic Range |
>100 dB (A-Weighted)
|
| Frequency Response |
20 Hz to 20 kHz (±0.5 dB)
|
| THD + N |
<0.01%
|
| Signal-to-Noise Ratio |
>100 dB (A-Weighted)
|
| Power |
5 VDC at 500 mA
Up to 2W Max |
| Dimensions |
4.5 x 1.5 x 1.1" / 11.5 x 4 x 2.8 cm
|
| Weight |
3.3 oz / 94 g
|
| Specialties |
Converts 2-Channel Analog XLR Audio to 2-Channel Dante
|
| Package Weight |
0.68 lb
|
| Box Dimensions (LxWxH) |
10.6 x 5.1 x 2.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 22466.5 |
| 3-5 | ₹ 22237.25 |
| 5-10 | ₹ 21778.75 |
| 10+ | ₹ 21320.25 |
Bulk discount will be automatically applied during checkout based on quantity.
