Description

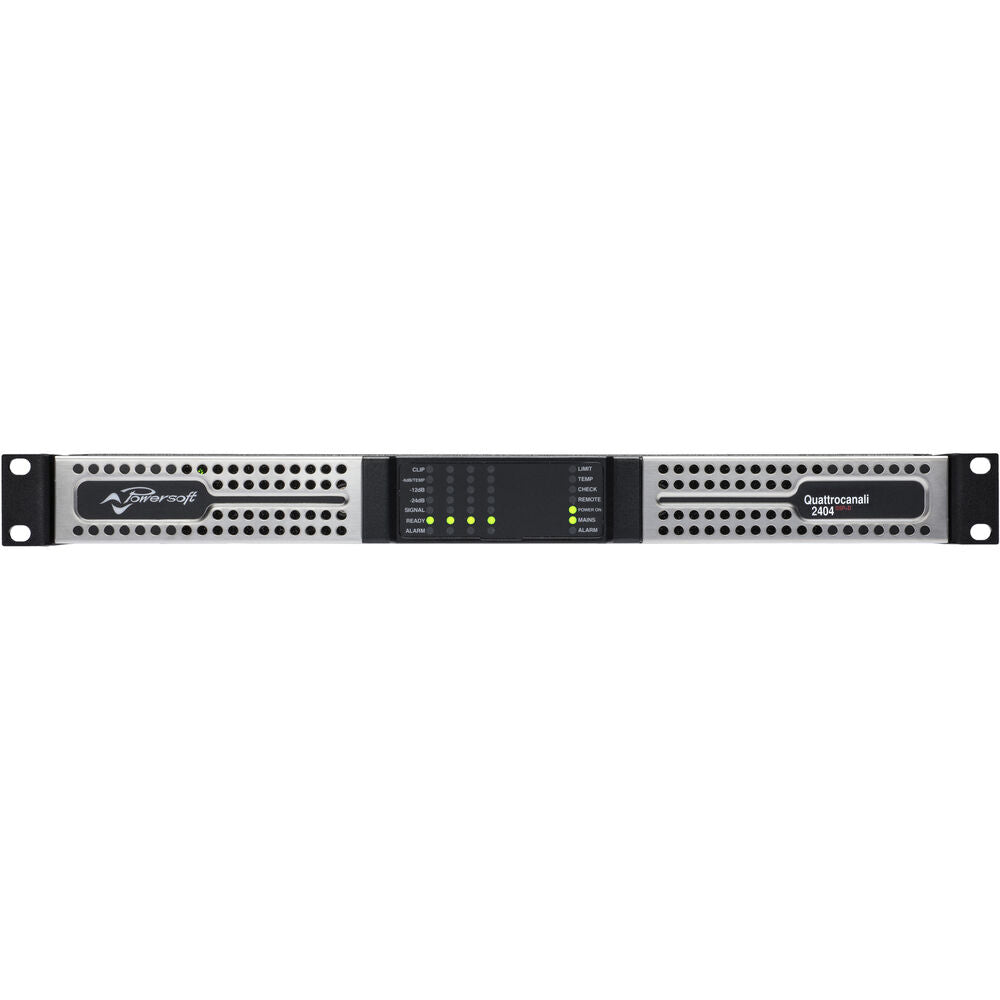

Enabling seamless integration into modern digital audio networks and remote management, the Powersoft Quattrocanali 2404 DSP+ D is a 2400W 4-channel amplifier featuring built-in DSP with Dante and AES67 compatibility, making it well suited for professional audio integrators and sound engineers seeking high-performance amplification in permanent installations.
In addition to its flexible networking, the amplifier delivers 800W per channel at 2 ohms and 600W at 4 and 8 ohms, with symmetrical and asymmetrical power sharing, allowing flexible distribution of power across channels. It includes balanced analog inputs, GPIO for control, and is housed in a lightweight, energy-efficient chassis, making it a versatile solution for a range of installation needs.
| Form Factor/Type | Rackmount (Rack-Mountable with Included Hardware) |
| Number of Amplifier Channels | 4 |
| Load Impedance/Voltage Support | 2 / 4 / 8 Ohms 70 / 100 V |
| Power Rating per Channel | 4x 800 W Peak at 2 Ohms 4x 600 W Peak at 4/8 Ohms 4x 600 W Peak at 70/100 V |
| Channel Bridging & Power Sharing | 1x 1600 W Peak Bridged at 4 Ohms 1x 1200 W Peak Bridged at 8 Ohms |
| Amplifier Class | Class-D |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| SNR/Noise | > 108 dB SNR |
| THD/Distortion | ≤ 0.1% THD+N |
| Crosstalk | -70 dB (Typical) |
| DSP | Yes: 32-Bit Floating Point DSP |
| Audio Delay | Adjustable Up to 100 ms |
| EQ & Filters | Parametric EQ, Low-Pass Filter, High-Pass Filter, Notch/Band-Pass Filter (via Software Control) |
| Dynamics | Clip Limiter, Limiter, Output Limiter, Peak Limiter |
| Analog Audio I/O | 2x Block 6-Pin Balanced Line Input 2x Block 4-Pin Speaker Output |
| Digital Audio I/O | No |
| Network I/O | 1x RJ45 Ethernet 1x RJ45 AES67 / Dante |
| Other I/O | 1x Block 4-Pin Remote In/Out 1x Block 6-Pin Volume Input |
| USB I/O | No |
| Phantom Power | No |
| Wireless | No |
| Input Power | 90 to 264 VAC, 50 / 60 Hz |
| AC Power Connector | 1x IEC 20 A / NEMA 5-20 (Locking) |
| Current Consumption | 0.45 to 3.7 A (1/8 Power, Idle at 4 Ohms) |
| Power Consumption | 31.1 to 405 W (1/8 Power, Idle at 4 Ohms) |
| Display | No |
| Rackmount Size | 1 U |
| Cooling | Fan (Variable Speed) |
| Dimensions | 19 x 14.1 x 1.75" / 48.3 x 35.8 x 4.45 cm |
| Weight | 15 lb / 6.8 kg |
| Package Weight | 19.875 lb |
| Box Dimensions (LxWxH) | 22.6 x 21.8 x 4.2" |
