Sonifex AVN-CU4 Configurable Dante Commentary Unit for 4 Commentators

Dante Connectivity & Audio Routing

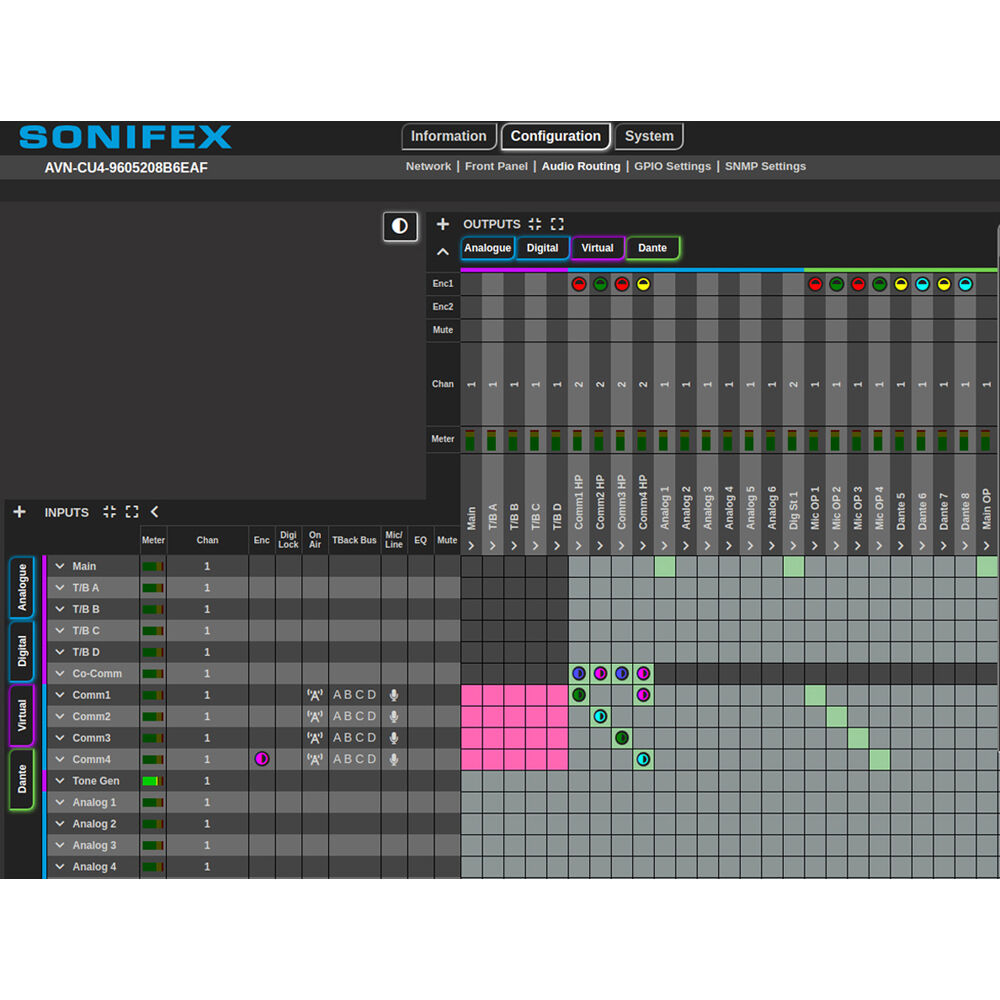

The AVN-CU4 supports up to 16x16 Dante AoIP input and output channels, with up to 16x16 simultaneous Dante streams. Once configured, its mix engine enables flexible routing of signals between physical and AoIP connections, controlled via programmable buttons and rotary encoders.

Two locking Ethernet ports on the back panel are used for AoIP connectivity and can be configured to function in either redundant or switched mode, via the Dante Controller interface.

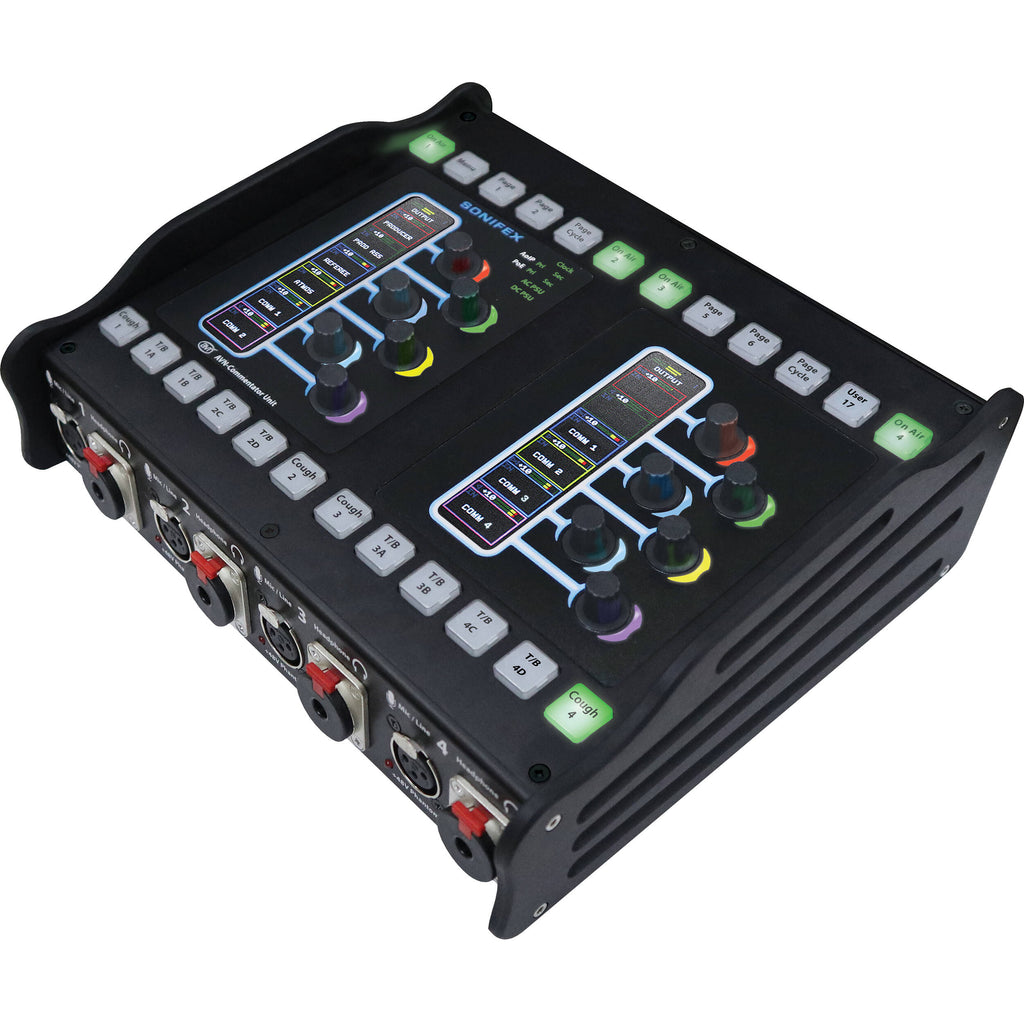

User-Friendly, Intuitive Control

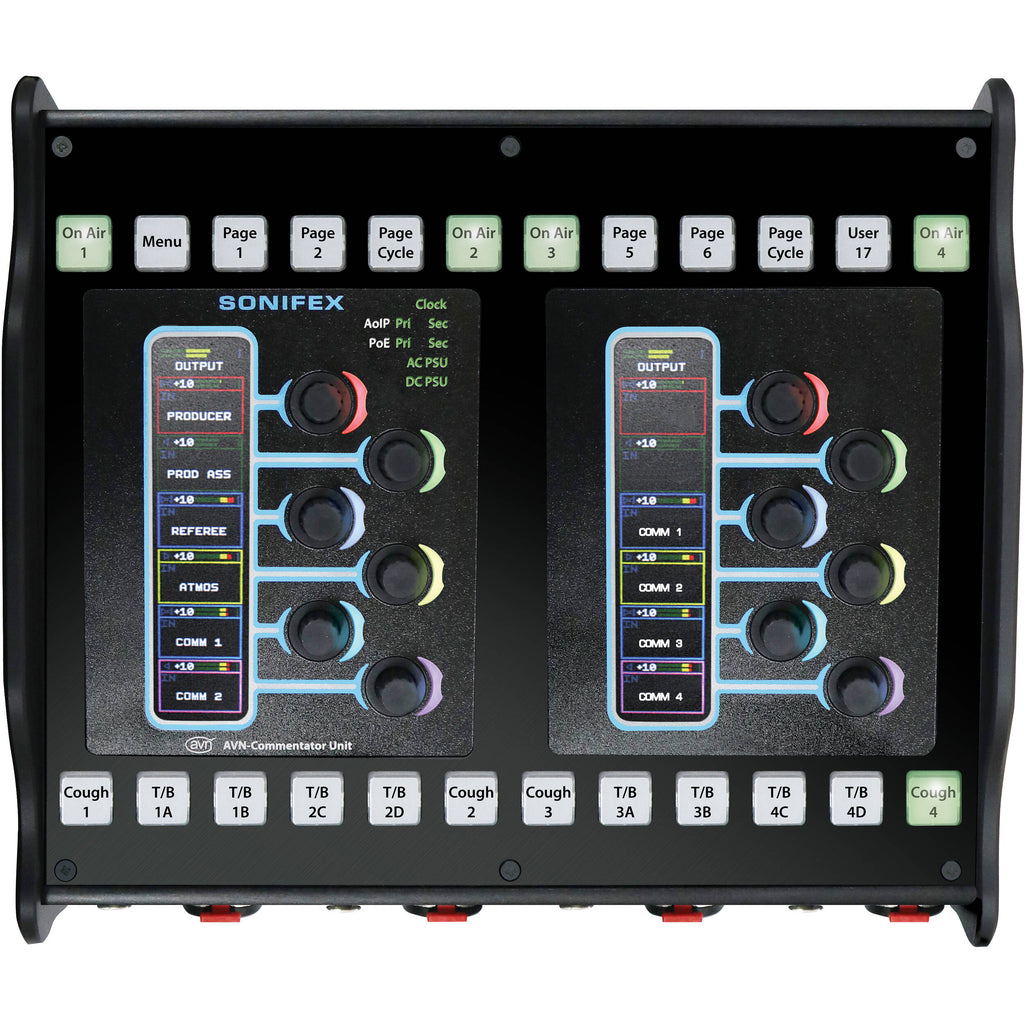

• 12 push-button rotary encoders for level, pan, and mix adjustments.
• 8 pages of 6 rotary encoder positions (48 in total).
• 24 programmable user buttons with customizable key-cap text.
• Full-color TFT display for real-time audio and system monitoring.
• Customizable encoder colors for quick identification of sources and destinations.

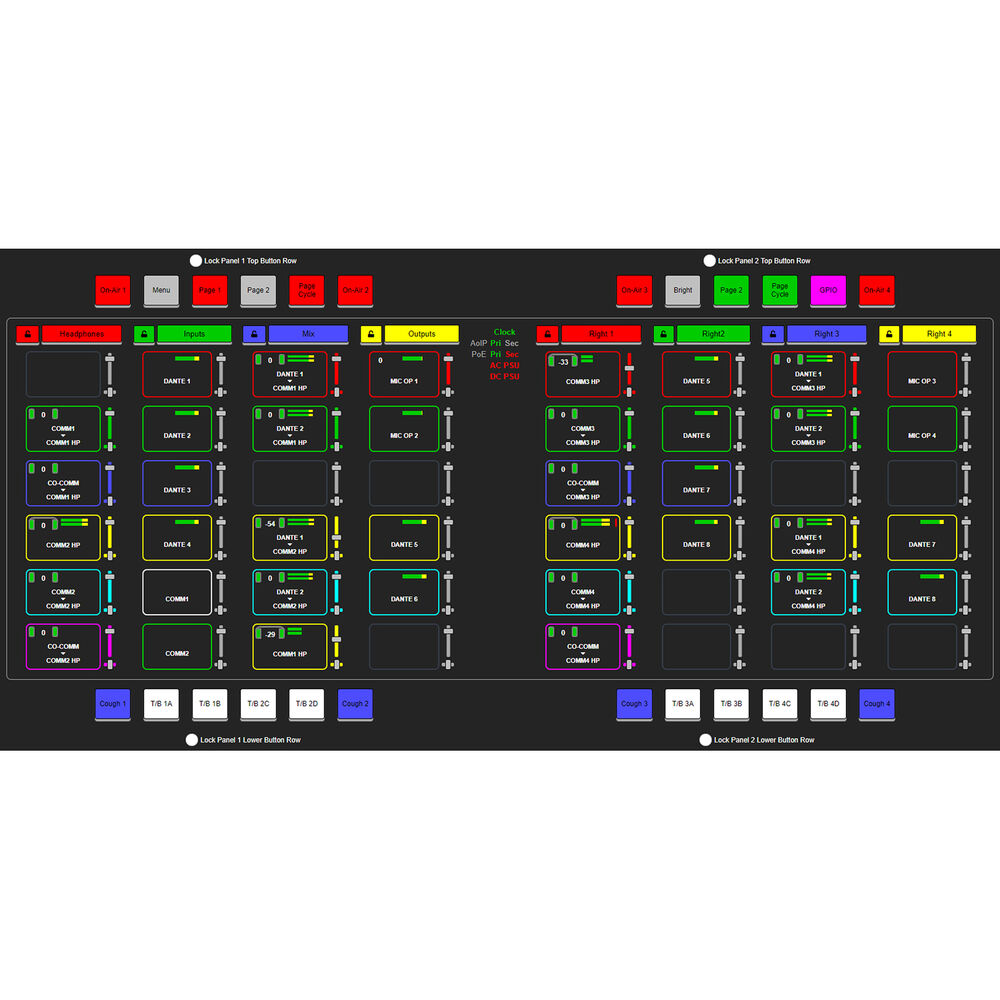

• Embedded web server for remote configuration and control.

Standard Operations Available

• On-Air control for each commentator position, used to connect mic audio to the main output, either over AoIP or via physical audio connections
• A cough control is available for each commentator position, which temporarily takes the commentator off-air while pressed
• 4 T/B (talkback) controls are available for each commentator position
• User buttons can be programmed to perform various functions using the web server, such as activating a physical GPO, a virtual GPO, a relay, or an event
• And more

Comprehensive Connectivity Options

• 4 analog XLR line inputs and 6 analog XLR line outputs on back panel.
• Rear-panel RJ45 ports provide AES3 or analog I/O, assignable as mic outputs (at line level), talkback, or program feeds.
• Dual redundant network ports via RJ45 and SFP cages, supporting long fiber runs.
• 10 configurable GPIO on a 15-way D-type connector, including one switched changeover output.
• AES/analog I/O can serve as an insert or exit point within the AoIP network.

Flexible Powering Options

The AVN-CU4 supports multiple power sources for maximum reliability:

• Power over Ethernet+ (PoE+) via Neutrik etherCON connectors (primary & secondary for redundancy).
• 4-pin XLR 12 VDC input for operation via an external PSU (available separately) when PoE is unavailable.
• AC mains with universal power supply.

Sonifex AVN-CU4 Specs

Network and AoIP	AoIP Standard: Dante Number of Channels: 16 Receive, 16 Transmit Number of Streams: 16 Receive, 16 Transmit Sample Rate: 48 kHz Format:Linear PCM, 16-, 24-, or 32-Bit AES67 Support: Yes Connectivity: 2 x RJ45 and 2 x SFP Speed: 1 Gb/s or 100 Mb/s Network Modes: Switched or Redundant Dante Domain-Manager-Ready: Yes
Mic/Line Inputs	Input Impedance (Mic Mode): 2.5 Kilohms, Electronically Balanced Input Impedance (Line Mode): >10 Kilohms, Electronically Balanced Preamp Gain (Mic Mode): User-Selectable 0 to 60 dB in 3 dB Steps 0 dBFS Line-Up (Mic Mode): -58 dBu at Max Preamp Gain, +2 dBu at Min Preamp Gain 0 dBFS Line-Up (Line Mode): User-Selectable +15 / +18 / +20 / +22 / +24 dBu = 0 dBFS Frequency Response (Mic Mode): +0/-0.2 dB 20 Hz to 22 kHz, Ref 40 dB Gain at 1 kHz Frequency Response (Line Mode): +0/-0.2 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THD+N (Mic Mode): <-90 dBFS, -64 dBFS, 20 Hz�20 kHz, 40 dB gain, 20 kHz BW THD+N (Line Mode): <-98 dBFS, -30 dBFS, 20 Hz�20 kHz, 20 kHz BW Equivalent Input Noise (Mic Mode): 127 dB Ref. 60 dB Preamp Gain, Rs = 200 Ohms Noise (Line Mode): <-110 dBFS, 20 kHz BW, Rs = 200 Ohms C.M.R.R. >60 dB Phantom Power (Mic Mode): +48 VDC
Stereo Digital Input	Input Impedance: 110 Ohms Supported Input rates: 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz
Stereo Digital Output	Output Impedance: 110 Ohms Supported Output Rate: 48 kHz
Analog Line Inputs	Input Impedance: >20 Kilohms, Electronically Balanced 0 dBFS Line-Up: User-Selectable +15 / +18 / +20 / +22 / +24 dBu = 0 dBFS Frequency Response: +0/-0.2 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THD+N: <-110 dBFS, -30 dBFS, 20 Hz to 20 kHz, 20 kHz BW Noise: <-110 dBFS, 20 kHz BW, Rs = 200 Ohms C.M.R.R: >60 dB
Analog Line Outputs	Output Impedance: <50 Ohms 0 dBFS Line-Up: User-Selectable 0 dBFS = +15 / +18 / +20 / +22 / +24 dBu Frequency Response: +0/-0.5 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THD+N (Analog Mode): <-110 dBFS, -30 dBFS, 20 Hz to 20 kHz, 20 kHz BW Noise: <-110 dBFS, 20 kHz BW
Headphone Outputs	Drive Capability: Drives 150 mW into 32 to 600 Ohms Headphones 0 dBFS Line-up: Fixed 0 dBFS = +18 dBu Frequency Response: +0/-0.2 dB 20 Hz to 22 kHz, Ref 0 dBu at 1 kHz THD+N: <-108 dBFS, -30 dBFS, 20 Hz to 20 kHz, 20 kHz BW Noise: <-110 dBFS, 20 kHz BW

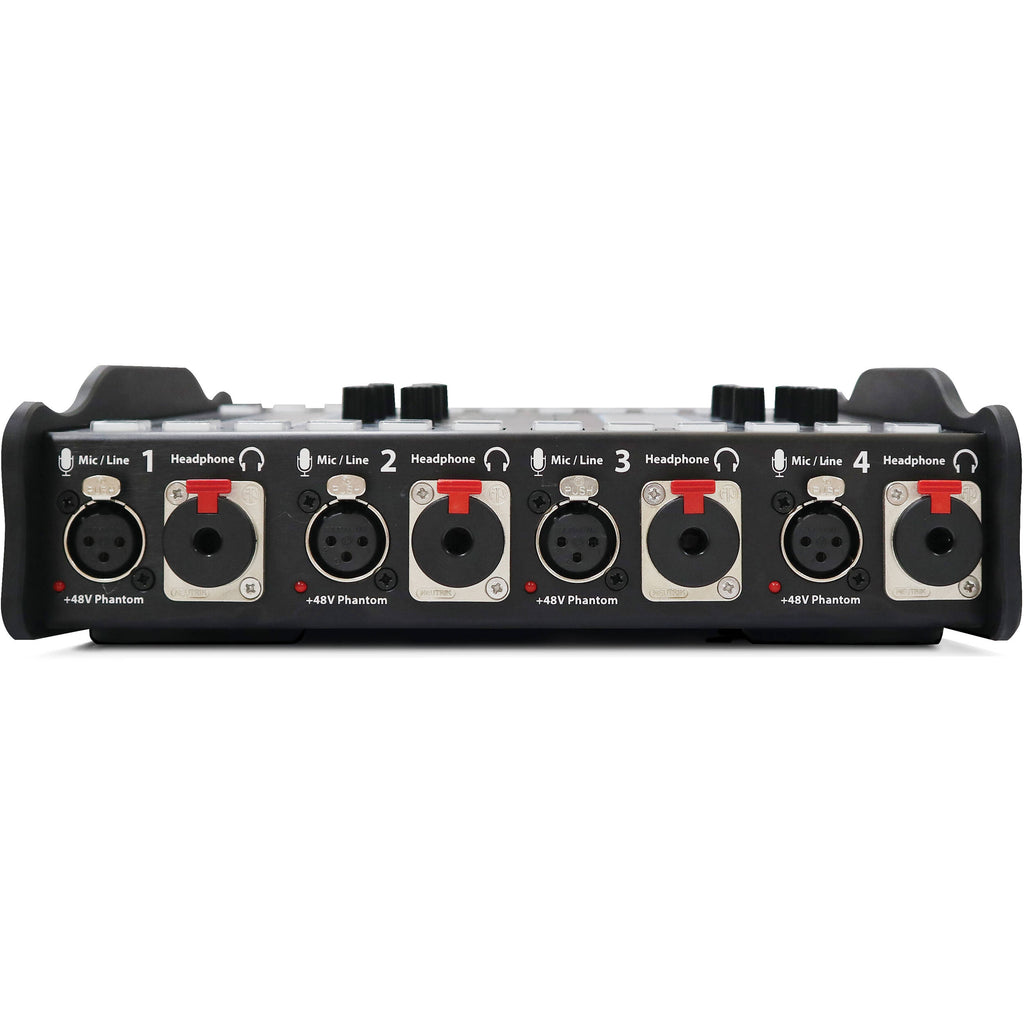

Front-Panel Connections	Headphone Outputs: 4 x Neutrik 1/4" / 6.35 mm Locking Jack Sockets Microphone/Line Inputs: 4 x Neutrik 3-Pin XLR Connectors

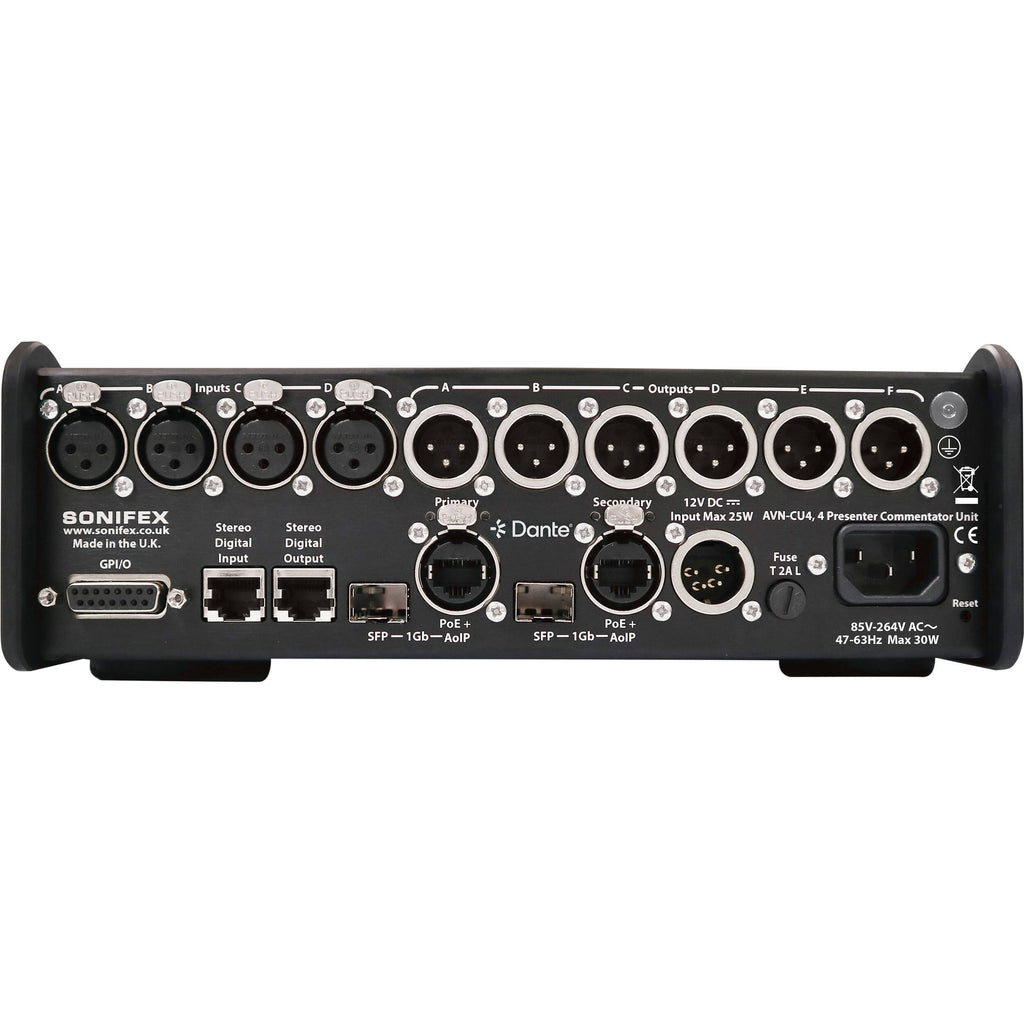

Rear-Panel Connections	Stereo Analog/Digital Input: RJ45 Socket (Electronically Balanced) Stereo Analog/Digital Output: RJ45 Socket (Electronically Balanced) Analog Line Inputs: 4 x Neutrik Locking XLR Sockets Analog Line Outputs: 6 x Neutrik Locking XLR Plugs GPIO Port: 15-Way D-Type Socket DC Input: Neutrik 4 Pin-XLR Plug Network: 2 x 1 Gb/s Neutrik EtherCON Receptacles (with PoE+), 2 x SFP Slots for Alternative Interfaces
Controls and Indicators	6 x Rotary Encoders 12 x Pushbuttons 480 x 107 Color TFT Display
Power	Type: PoE Standard: 802.3at Type 2 Class: 4 PD Power Range: 12.95 to 25.50 W Typical PSE Power Usage: 20 W Max PSE Power Usage: 30 W Type: Mains Input Filtered IEC, 85-264 VAC, 47 to 63 Hz, 30 W Max Type: External PSU (Optional) 12 VDC, Maximum 30 W, Anti-Surge Fuse 2 A / 20 x 5 mm
Dimensions	10.1 x 9 x 3.6" / 25.7 x 22.9 x 9.2 cm
Weight	6.6 lb / 3.0 kg
