Description

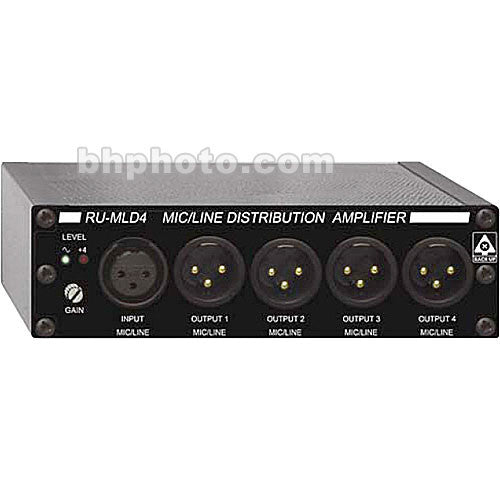

The RU-MLD4T from RDL is a professional-quality 1-in, 4-out audio distribution amplifier. It can accept or send mic or line level signals, and the input connection can be made via the front-panel XLR connector or the rear-panel terminal block connectors. Outputs are connected via front-panel XLR or rear-panel terminal block connectors as well.
Switchable 24V phantom power is available and two mic gain settings allow you to use a wide variety of dynamic or condenser microphones with the RU-MLD4T. Each transformer-isolated output can be wired as balanced or unbalanced and can be individually set to send out a mic or line level signal. A gain control is provided on the front panel, along with signal level LED indicators.
- All I/Os can be connected via front-panel XLR or rear-panel terminal block
- The input and each transformer-isolated output can be selected for a mic or line level signal
- 24VDC phantom power available
- Accepts a variety of dynamic and condenser microphones thanks to two gain settings
- Front-panel gain control
- Front-panel signal LEDs
- 3 Year Limited Warranty
Not in the Box
- Batteries & Power (Not Included)
| Inputs | 1 x Front-Panel XLR Connector 1 x Rear-Panel Removable Terminal Block |
| Input Level | Mic/Line Switch-Selectable via Rear Panel |
| Input Impedance | Mic: 2 k ohms Balanced, Switchable 24V Phantom Power Line: 10 k ohms, Balanced (May be Connected Unbalanced) |
| Outputs | 4 x Front-Panel XLR Connectors 2 x Rear-Panel Removable Terminal Blocks (2 Channels on Each Block) |
| Output Level | Mic/Line Switch-Selectable via Rear Panel |
| Output Impedance | 150 ohms Balanced |
| Gain | Mic: Off to 52dB (Lo), Off to 69dB (Hi) Line: Off to 15dB |
| Frequency Response | Mic: 80Hz - 50kHz Line: 15Hz - 50kHz |
| THD + N | Mic: Less than 0.1% Line: Less than 0.005% |
| Common Mode Rejection Ratio | Mic: Greater than 60dB Line: Greater than 50dB |
| Residual Noise | Mic: -79dB (50dB Gain), -70dB (60dB Gain) Line: -85dB |
| Headroom | Greater than 20dB Above +4 dBu Line Output |
| Power Requirements | 24 to 33 VDC @ 80mA (Can be input via Terminal Block or Power Input Jack) Batteries & Power Not Included |
| Packaging Info | |
|---|---|
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 6.7 x 6.2 x 2.8" |
