Description
Lowell Manufacturing LT2S-810-72-BB-VC Overview

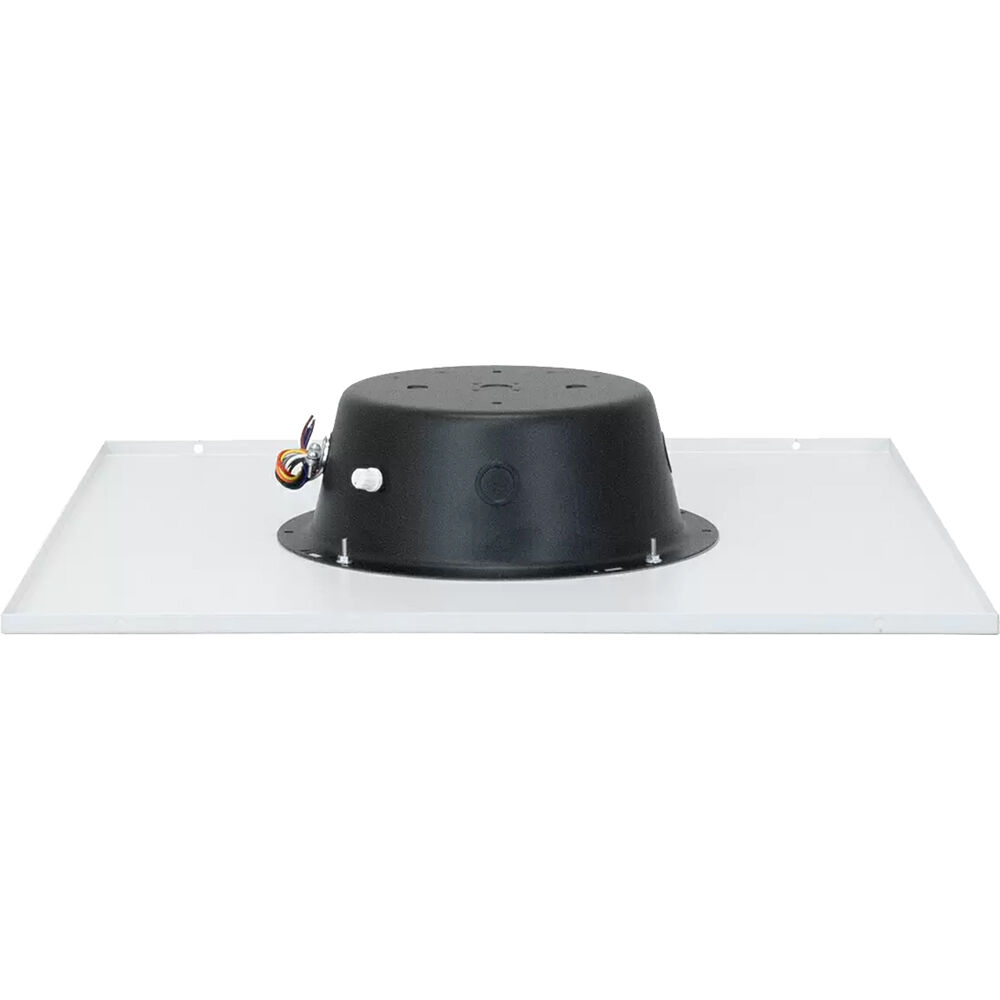

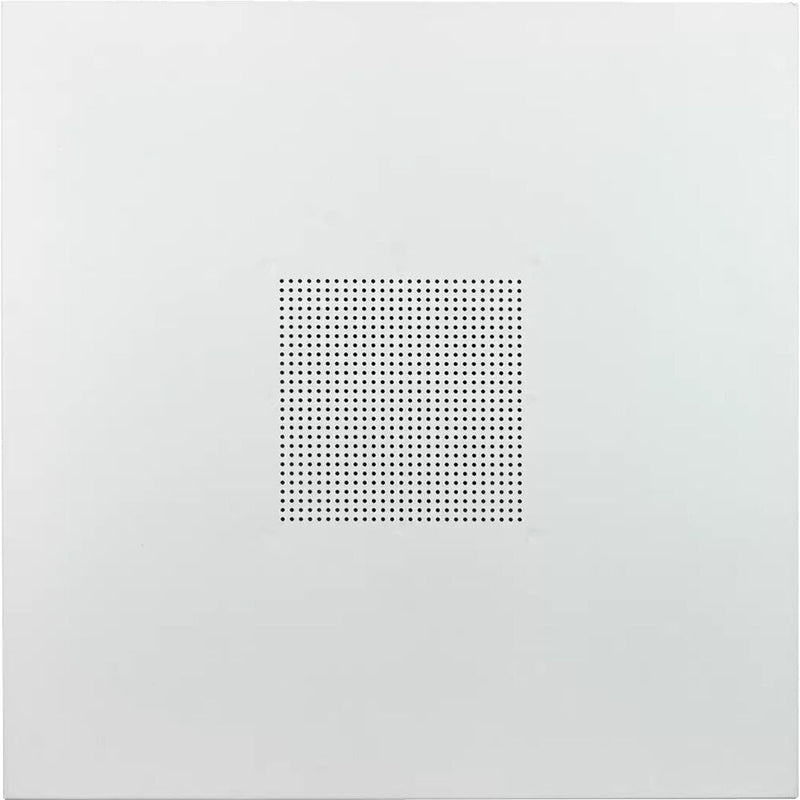

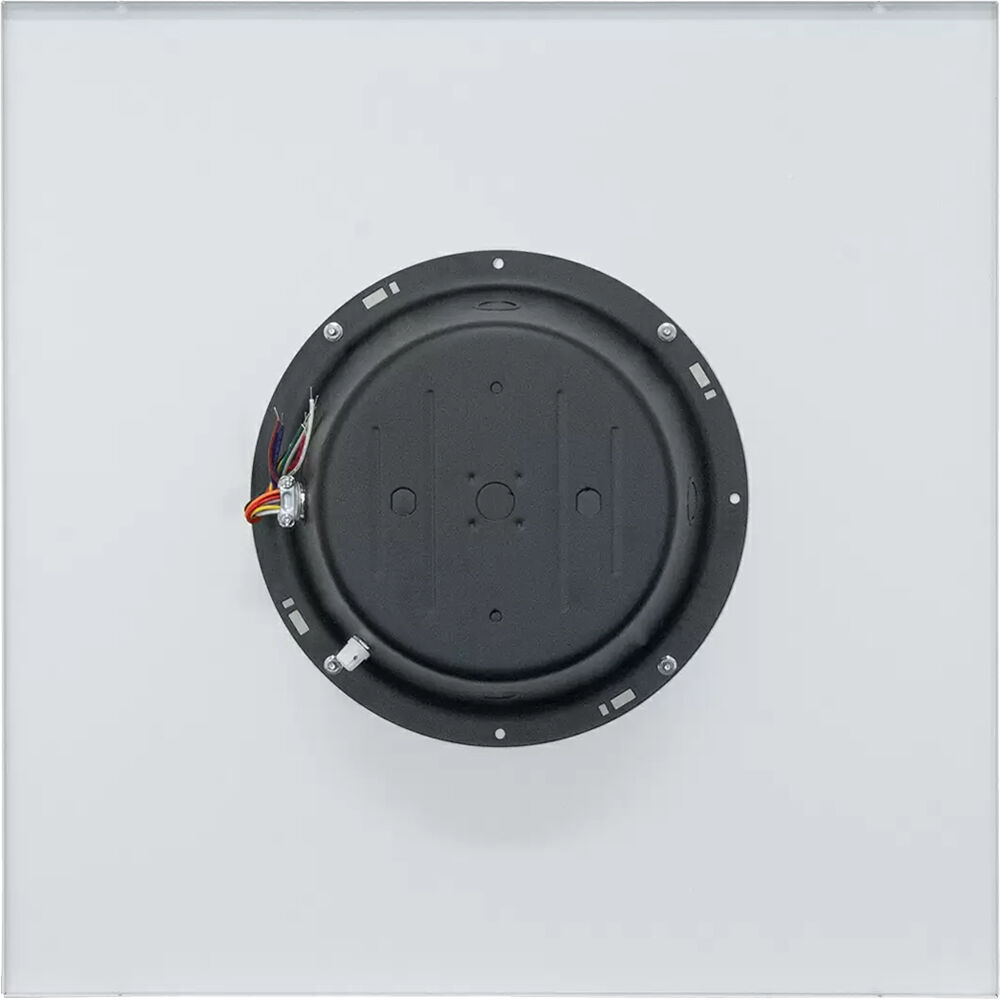

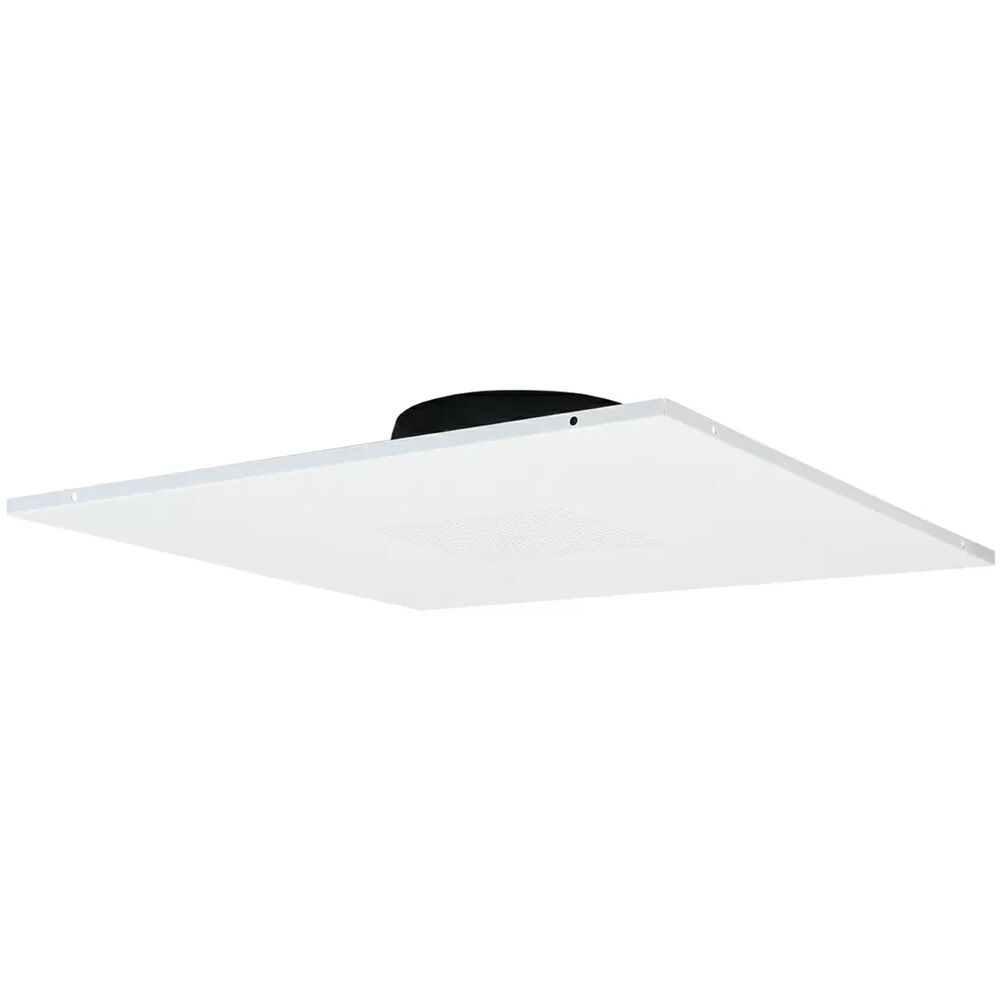

Ideal for commercial paging and background music, the 2 x 2' Lowell Manufacturing Dual-Cone Lay-In Tile Ceiling Speaker with Enclosure, 25/70V Transformer, and Volume Control is a simple and easy to install speaker system. The ready-made 8" speaker offers a 95° conical dispersion and is built into a steel backcan that's pre-attached to a white, powder coated tile frame. The speaker has a frequency response range of 54 Hz to 11.6 kHz (±6 dB), 50 Hz to 20 kHz (±6.6 dB), and a measured average sensitivity of 97.9 dB. The 25/70V transformer provides taps at 0.25, 0.5, 1, 2, and 5W.
UPC: 811859037198
Items Included
- Lowell Manufacturing Dual-Cone Lay-In Tile Ceiling Speaker with Enclosure, 25/70V Transformer, and Volume Control (2 x 2')
- Restraint Tabs
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lowell Manufacturing LT2S-810-72-BB-VC Specs
Key Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
15 W
|
| Constant Voltage / Transformer Taps |
25 V / 70 V
5 / 2 / 1 / 0.5 / 0.25 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Full-Range Driver |
1x 8" / 203.2 mm Cone
|
| Color |
White
|
Speaker
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
15 W
|
| Constant Voltage / Transformer Taps |
25 V / 70 V
5 / 2 / 1 / 0.5 / 0.25 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Transformer Wattage |
5 W
|
| Enclosure Type |
Sealed
|
Drivers
| Full-Range Driver |
1x 8" / 203.2 mm Cone
|
| Full-Range Voice Coil |
1" / 25.4 mm
|
| Magnet |
Ceramic, 10 oz / 284 g
|
Performance
| Frequency Response |
54 Hz to 11.6 kHz ±6 dB
50 Hz to 20 kHz ±6.6 dB |
| Maximum SPL |
109.7 dB
|
| Sensitivity |
97.9 dB
|
| Coverage Angle |
95° at 2 kHz (Conical)
|
Connectivity
| Inputs/Outputs |
2x Wire Lead
|
Physical
| Color |
White
|
| Dimensions |
23.75 x 12.75 x 4.13" / 60.33 x 32.38 x 10.49 cm
|
