Description
Lowell Manufacturing RPAK-810-72-LC Overview

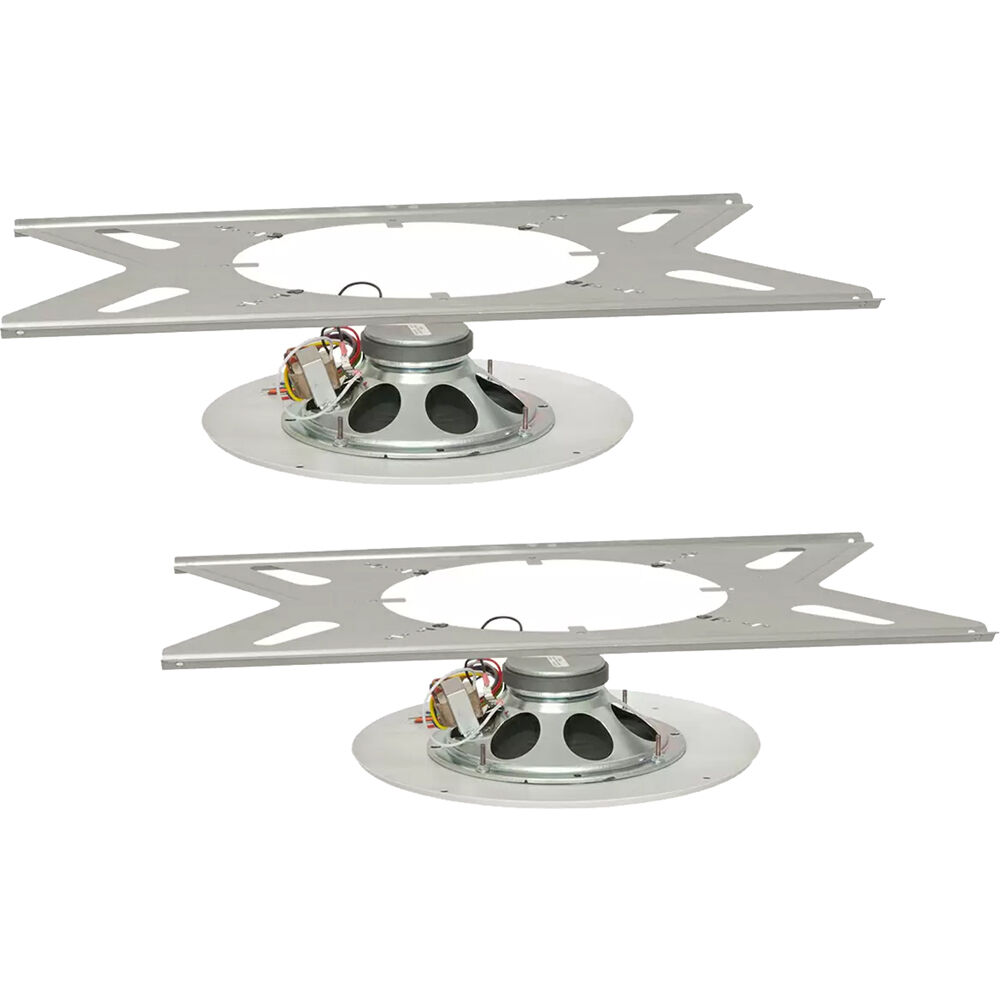

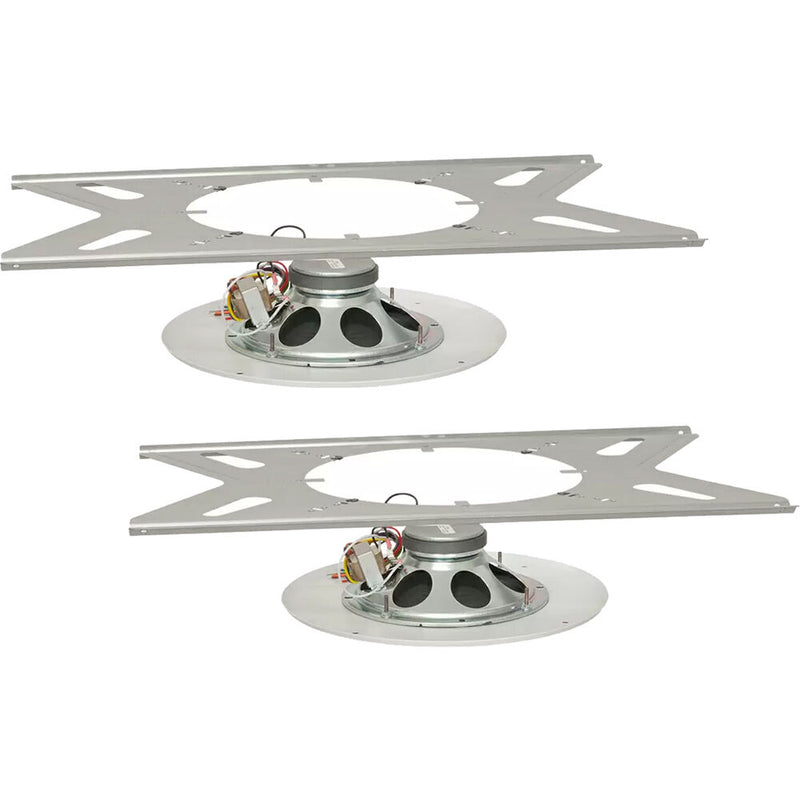

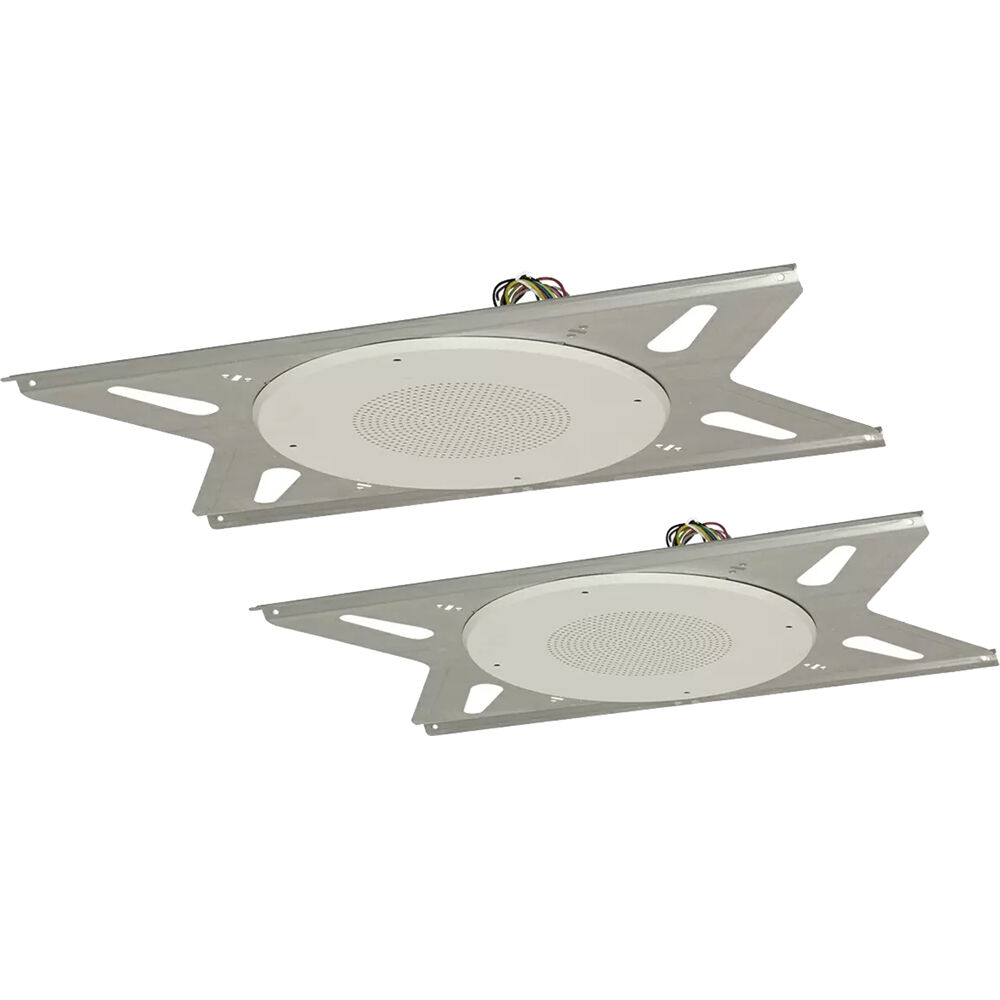

Ideal for commercial paging and background music, this 2-pack of Lowell Manufacturing Dual-Cone Lay-In Ceiling Speaker with 25/70V Transformer, Grille, and Bridge is a simple and easy to install speaker system. Each ready-made 8" speakers offers a 95° conical dispersion for wide coverage and include steel grilles, while the tile bridges transfer speaker assembly weight to the ceiling support structure in suspended tile ceilings. The speakers offer a frequency response range of 54 Hz to 11.6 kHz (±6 dB), 50 Hz to 20 kHz (±6.6 dB), and a measured average sensitivity of 97.9 dB. The 25/70V transformer provides taps at 0.25, 0.5, 1, 2, and 5W.
UPC: 811859037273
Items Included
- Lowell Manufacturing Dual-Cone Lay-In Ceiling Speaker with 25/70V Transformer, Grille, and Bridge (2-Pack)
- Restraint Tabs
- Limited 5-Year Manufacturer Warranty
Additional Resources
Lowell Manufacturing RPAK-810-72-LC Specs
Key Specs
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
15 W
|
| Constant Voltage / Transformer Taps |
25 V / 70 V
5 / 2 / 1 / 0.5 / 0.25 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Full-Range Driver |
1x 8" / 203.2 mm Cone
|
| Color |
White
|
Speaker
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
Full-Range
|
| Power Handling |
15 W
|
| Constant Voltage / Transformer Taps |
25 V / 70 V
5 / 2 / 1 / 0.5 / 0.25 W or 8 Ohms Bypass |
| Impedance |
8 Ohms
|
| Transformer Wattage |
5 W
|
| Enclosure Type |
Sealed
|
Drivers
| Full-Range Driver |
1x 8" / 203.2 mm Cone
|
| Full-Range Voice Coil |
1" / 25.4 mm
|
| Magnet |
Ceramic, 10 oz / 284 g
|
Performance
| Frequency Response |
54 Hz to 11.6 kHz ±6 dB
50 Hz to 20 kHz ±6.6 dB |
| Maximum SPL |
109.7 dB
|
| Sensitivity |
97.9 dB
|
| Coverage Angle |
95° at 2 kHz (Conical)
|
Connectivity
| Inputs/Outputs |
2x Wire Lead
|
Physical
| Color |
White
|
| Dimensions |
23.75 x 12.75 x 2.84" / 60.33 x 32.38 x 7.21 cm
|
| Weight |
2 lb / 0.9 kg (Each Speaker)
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
