Description
LEA Professional CS702D Overview
Ideal for sound installations in small- to moderate-sized spaces, the CS702D from LEA Professional is a 2-channel, 1400W Class-D power amplifier, capable of delivering 700W per channel, and supporting impedance loads of 2, 4, or 8 ohms as well as 25, 70, or 100V Hi-Z output loads per channel. Designed for fast, easy network control, the CS702D sports three methods of network connection: 100 MB/s Ethernet input port, two Dante ports (primary and secondary), and built-in Wi-Fi with both access-point and local Wi-Fi support. These allow you to easily connect to external control devices, including web- and (internet-of-things) IoT-based cloud services. Plus, you get an analog input for direct remote I/O control.
The CS702D features balanced analog Amphenol Anytek block terminal I/O for line inputs and speaker outputs. The Smart Power Bridge technology lets you dynamically double power on each channel when needed without sacrificing the power quality on other channels, and with 32-bit / 96 kHz DSP processing, you are assured clean, clear audio distribution with minimal latency. This amp includes all necessary block terminal cables for each input and output, two removable and washable foam filters for the front air intake, and one IEC power cable to get you started right away.
Items Included
- LEA Professional CS702D ConnectSeries 1400W 2-Channel Networked Amplifier
- 3 x 3-Position Amphenol Anytek Input Connector
- 2 x 2-Position Amphenol Anytek Output Connector
- 2 x Removable Foam Filter
- IEC Power Cable
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 3-Year (US Only)
Additional Resources
No additional resources available
LEA Professional CS702D Specs
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 700 W RMS per Channel 2 Ohms: 2x 350 W RMS per Channel 25 V: 2x 330 W RMS per Channel |
| Load Impedance / Voltage |
2 / 4 / 8 Ohms per Channel
25 / 70 / 100 V per Channel |
| DSP |
32-Bit Delta-Sigma DSP at 96 kHz
|

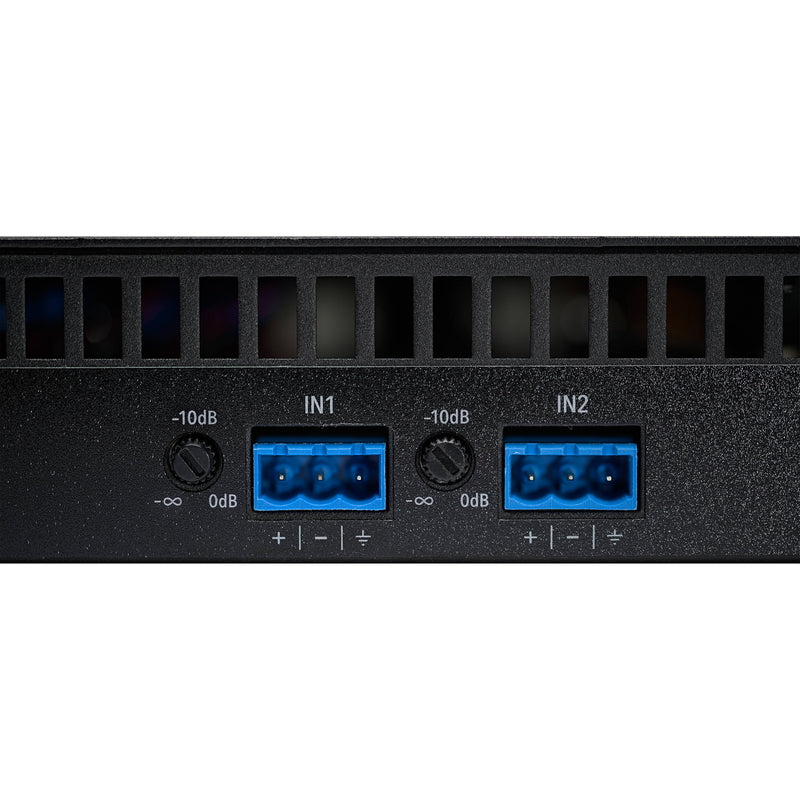

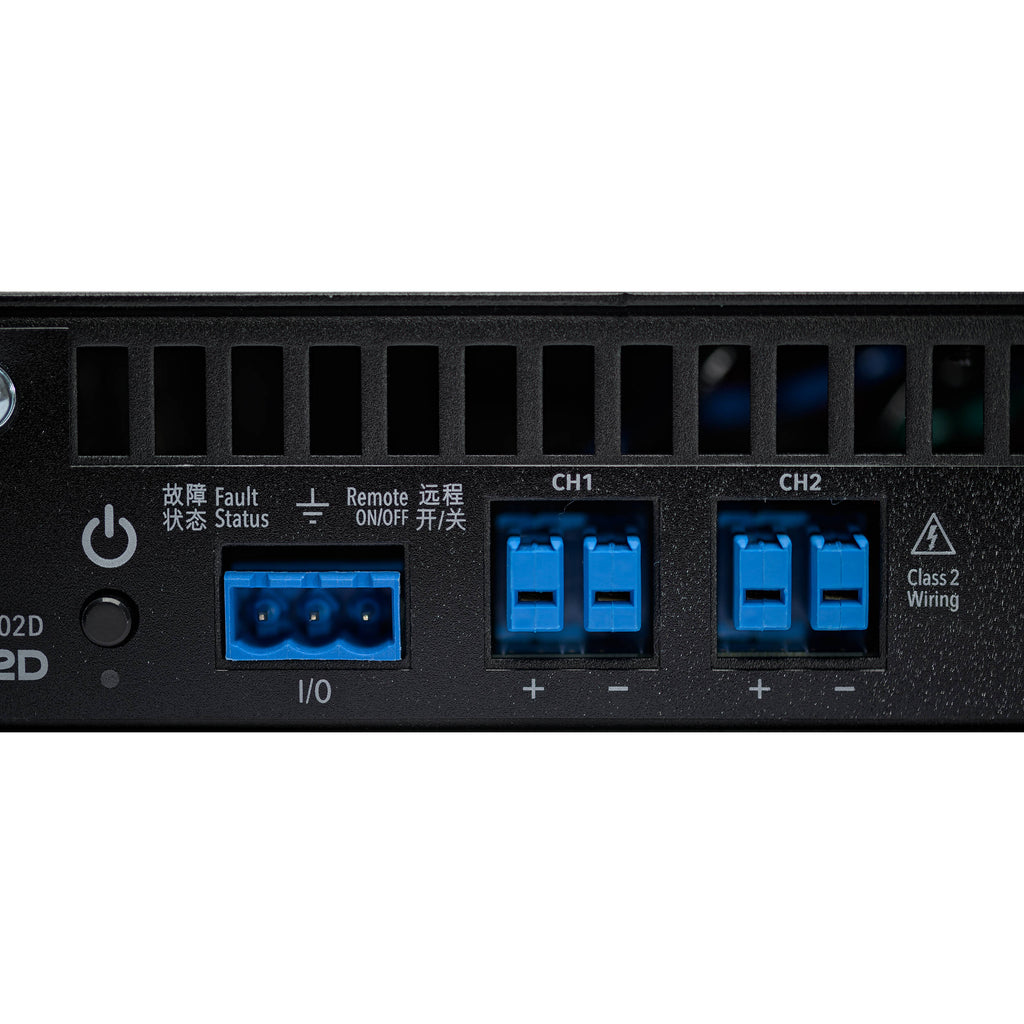

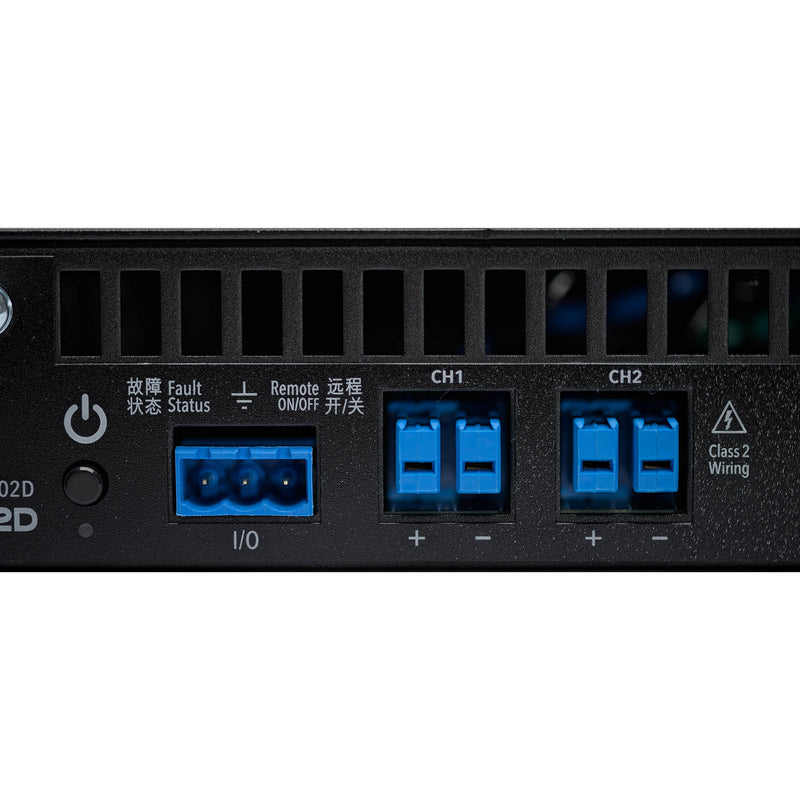

| Analog Audio I/O |
2x Block 3-Pin Balanced Line Input
2x Block 2-Pin Speaker Output |
| Digital I/O |
2x RJ45 Dante Input (I/O)
|
| Network I/O |
1x RJ45 Ethernet
|
| Rackmount Size |
1 U
|
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 700 W RMS per Channel 2 Ohms: 2x 350 W RMS per Channel 25 V: 2x 330 W RMS per Channel |
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
2 / 4 / 8 Ohms per Channel
25 / 70 / 100 V per Channel |
| Protections |
AC Coupling, AC Fuse
|
| Frequency Response |
20 Hz to 20 kHz ±0.5 dB
|
| Input Sensitivity |
Line:
34 dB (Balanced) |
| SNR |
105 dB
|
| THD+N |
0.1%
|
| Crosstalk |
70 dB
|
| Sample Rate |
Up to 96 kHz
|
| DSP |
32-Bit Delta-Sigma DSP at 96 kHz
|
| Latency |
1 ms
|
| Crossover |
48 dB/Octave Linkwitz-Riley
|
| EQ |
8-Band Parametric EQ per Channel
|
| Ducking/Muting |
No
|
| Limiting |
Yes
|
| Analog Audio I/O |
2x Block 3-Pin Balanced Line Input
2x Block 2-Pin Speaker Output |
| Digital I/O |
2x RJ45 Dante Input (I/O)
|
| Network I/O |
1x RJ45 Ethernet
|
| Other I/O |
1x Block 8-Pin Remote
|
| Mobile App Compatible |
Yes: Android & iOS
Functionality: Remote Control |
| Wireless |
Wi-Fi
*Built-In |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| AC Power Connector |
1x IEC
|
| Display & Indicators |
1x Blue LCD
|
| Rackmount Size |
1 U
|
| Cooling |
1x Fan
|
| Operating Conditions |
32 to 131°F / 0 to 55°C
|
| Storage Conditions |
-4 to 194°F / -20 to 90°C
|
| Dimensions |
19.0 x 1.8 x 14.3" / 48.3 x 4.6 x 36.3 cm
|
| Weight |
10 lb / 4.5 kg
|
