Description

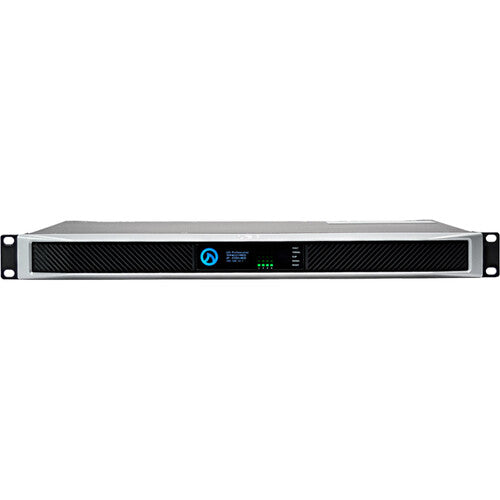

LEA Professional 354-G Overview
Ideal for sound installations in small- or medium-sized spaces, the CS354-G from LEA Professional is a 4-channel, 1400W class-D power amplifier, capable of delivering 350W per channel, and supporting impedance loads of 2, 4, or 8 ohms as well as 70 or 100V Hi-Z output loads per channel. Designed for fast and easy network control, the CS354-G sports a 100 mb/s Ethernet input port for connecting to external control devices, including web- and IoT-based cloud services as well as an analog input for direct remote I/O control.

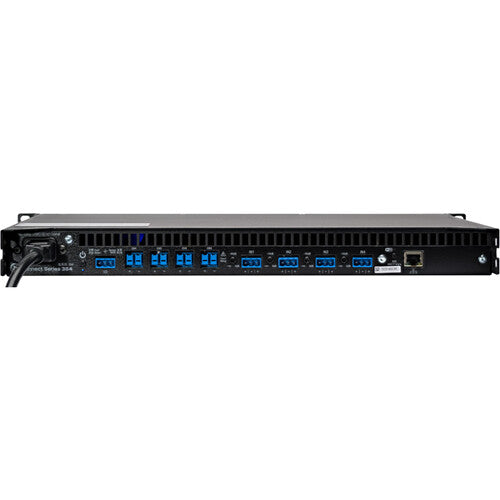

The CS354-G features balanced, analog Amphenol Anytek block terminal I/O for line inputs and speaker outputs. The Smart Power Bridge technology lets you dynamically double power on each channel when needed without sacrificing the power quality on other channels, and with 32-bit / 96 kHz DSP processing, you are assured clean, clear audio distribution with minimal latency. This amp includes all necessary block terminal cables for each input and output, two removable and washable foam filters for the front air intake, and one IEC power cable to get you started right away.
Items Included
- LEA Professional CS354-G ConnectSeries 1400W 4-Channel Networked Amplifier (Government Model)
- 5 x 3-Position 5.08mm Amphenol Anytek Input Connector
- 4 x 2-Position 7.62mm Amphenol Anytek Output Connector
- 2 x Removable Front-Panel Foam Filter
- IEC Power Cable
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 3-Year (US Only)
Additional Resources
LEA Professional 354-G Specs
| Number of Channels |
4
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
4x 350 W RMS 2 Ohms: 175 W RMS |
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
2 / 4 / 8 Ohms per Channel (2 Ohms Minimum)
70 / 100 V per Channel |
| DSP |
32-Bit Delta-Sigma DSP
|
| Analog Audio I/O |
4x Block 3-Pin Female Balanced Line Input (Detachable)
1x Block 3-Pin Female Balanced Remote Input/Output 4x Binding Post Pair Coaxial Female Speaker Output |
| Digital I/O |
1x RJ45 Ethernet Input (Control, Network, PoE, 100 Mb/s)
|
| Rackmount Size |
1 U
|
| Number of Channels |
4
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
4x 350 W RMS 2 Ohms: 175 W RMS |
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
2 / 4 / 8 Ohms per Channel (2 Ohms Minimum)
70 / 100 V per Channel |
| Protections |
AC Fuse, DC Fault, Infrasonic, Overcurrent, Thermal
|
| Frequency Response |
20 Hz to 20 kHz -2.5 dB (at 2 Ohms)
|
| SNR |
105 dB (at 8 Ohms)
|
| THD+N |
0.1% (20 Hz to 20 kHz)
|
| Crosstalk |
70 dB (20 Hz to 20 kHz)
|
| Sample Rate |
96 kHz
|
| DSP |
32-Bit Delta-Sigma DSP
|
| Latency |
1 ms
|
| Audio Delay |
Adjustable Up to 100 ms per Channel
|
| Crossover |
48 dB/Octave Linkwitz-Riley
48 dB/Octave Butterworth |
| EQ |
8-Band Parametric EQ per Channel
|
| Filters |
1x High-Pass
|
| Limiting |
Peak, Soft Clip
|
| Analog Audio I/O |
4x Block 3-Pin Female Balanced Line Input (Detachable)
1x Block 3-Pin Female Balanced Remote Input/Output 4x Binding Post Pair Coaxial Female Speaker Output |
| Digital I/O |
1x RJ45 Ethernet Input (Control, Network, PoE, 100 Mb/s)
|
| USB I/O |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: LEA Cloud Functionality: Adjust Settings, Remote Control |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| AC Power Connector |
1x IEC
|
| Current Consumption |
8 Ohms:
4.99 A (1/3 Power) 0.77 A (Idle) |
| Power Consumption |
8 Ohms:
125 W (1/3 Power) 75 W (Idle) |
| Display & Indicators |
Front Panel:
1x Green LED (Status, per Channel) |
| Rackmount Size |
1 U
|
| Cooling |
Fan (Variable Speed)
|
| Operating Conditions |
32 to 140°F / 0 to 60°C
|
| Storage Conditions |
-4 to 194°F / -20 to 90°C
|
| Dimensions |
19.0 x 1.7 x 14.2" / 48.3 x 4.3 x 36.1 cm
|
| Weight |
14 lb / 6.4 kg
|
| Package Weight |
18.4 lb
|
| Box Dimensions (LxWxH) |
22.4 x 21.4 x 3.8"
|
