Description
Lab.Gruppen CPA2401 Overview
- 1Description
- 2At a Glance
- 3Easy to Hook Up
- 4Easy to Install
- 5Automatic Power On/Off
- 6Simple Controls
- 7Output Configuration
- 8Expandable Remote Control
- 9System Scalability
- 10Real-World Energy Savings

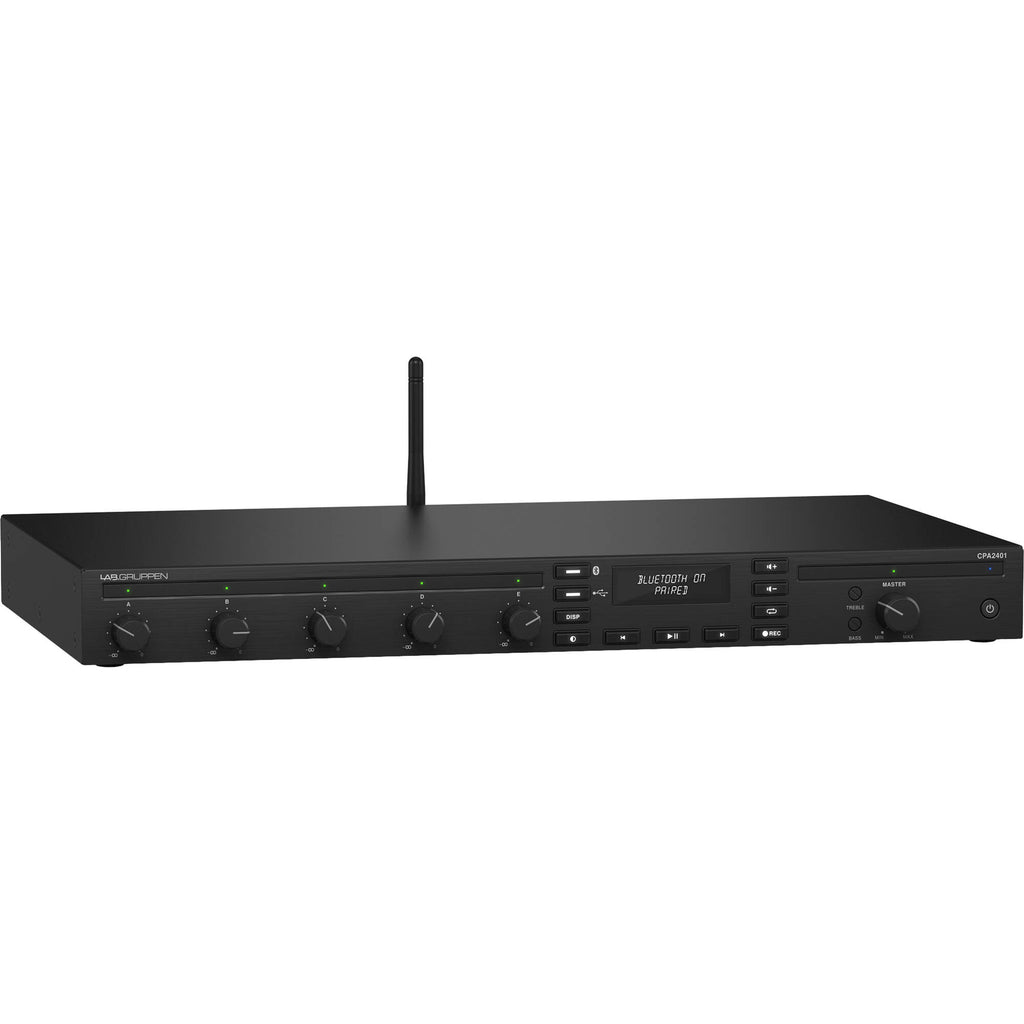

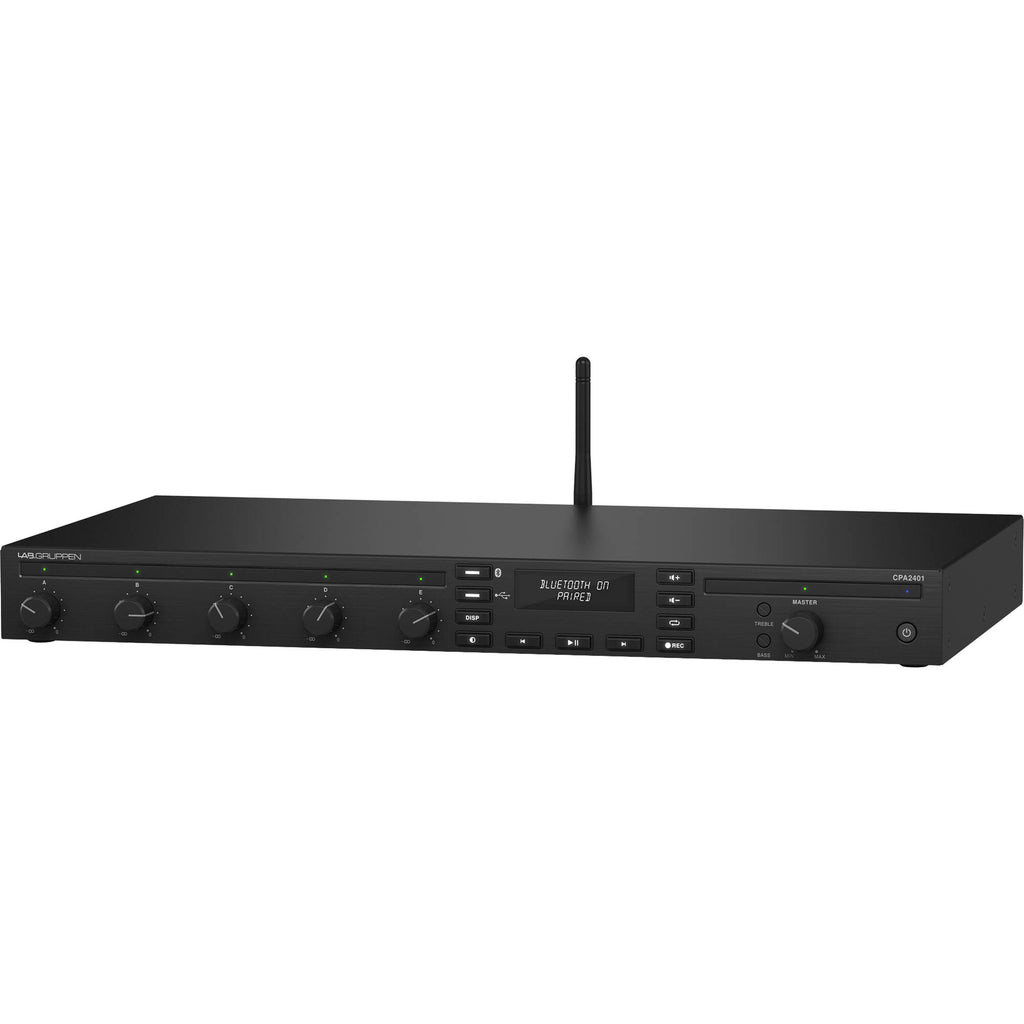

Add ambiance to your store or restaurant with the Lab.Gruppen CPA2401, a commercial mixer amplifier that's the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. The 5-input mixer features volume controls on the front panel as well as a front-panel master volume and bass/treble controls. The high-quality media player features an LCD display and allows you to switch between the USB (thumb drive) input or Bluetooth for streaming your favorite music wirelessly from your smart device.
The CPA2401 features a 240W amplifier that's capable of delivering high-quality sound over both Low-Z (4/8 ohms) and High-Z (70/100V) loudspeaker configurations, offering extreme flexibility. CPA2401 is easy to install and operate, even for non-technical personnel. It is ideally suited for bars, restaurants, retail destinations, hotels, corporate, education, or other venues needing background music as well as public address systems.
At a Glance
- 240W mixer amplifier for commercial and industrial applications
- Low-Z (4/8 ohm) and High-Z (70/100V) operation with switchable high-pass filter
- 3 mic/line inputs plus 2 line inputs, each with individual volume controls and output routing
- High-quality media playback via Bluetooth streaming
- USB media player with intuitive LCD navigation to play audio files via USB stick
- Individual front-panel master volume and bass/treble controls
- Configurable priority and chime muting function for background music override
- Direct drive, constant power technology for superior audio performance and reliability
- GPI remote volume control using standard RJ45 connector and Ethernet cable
- Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
- Front-panel power-control button for direct access
- Aux output for expansion to additional amplifiers
- Rack-mountable 1 RU, 19" enclosure with brackets for rack mounting
- Euroblock type mic/line input and output connectors
- Convection-cooled, fan-less amplifier technology for low noise
Easy to Hook Up

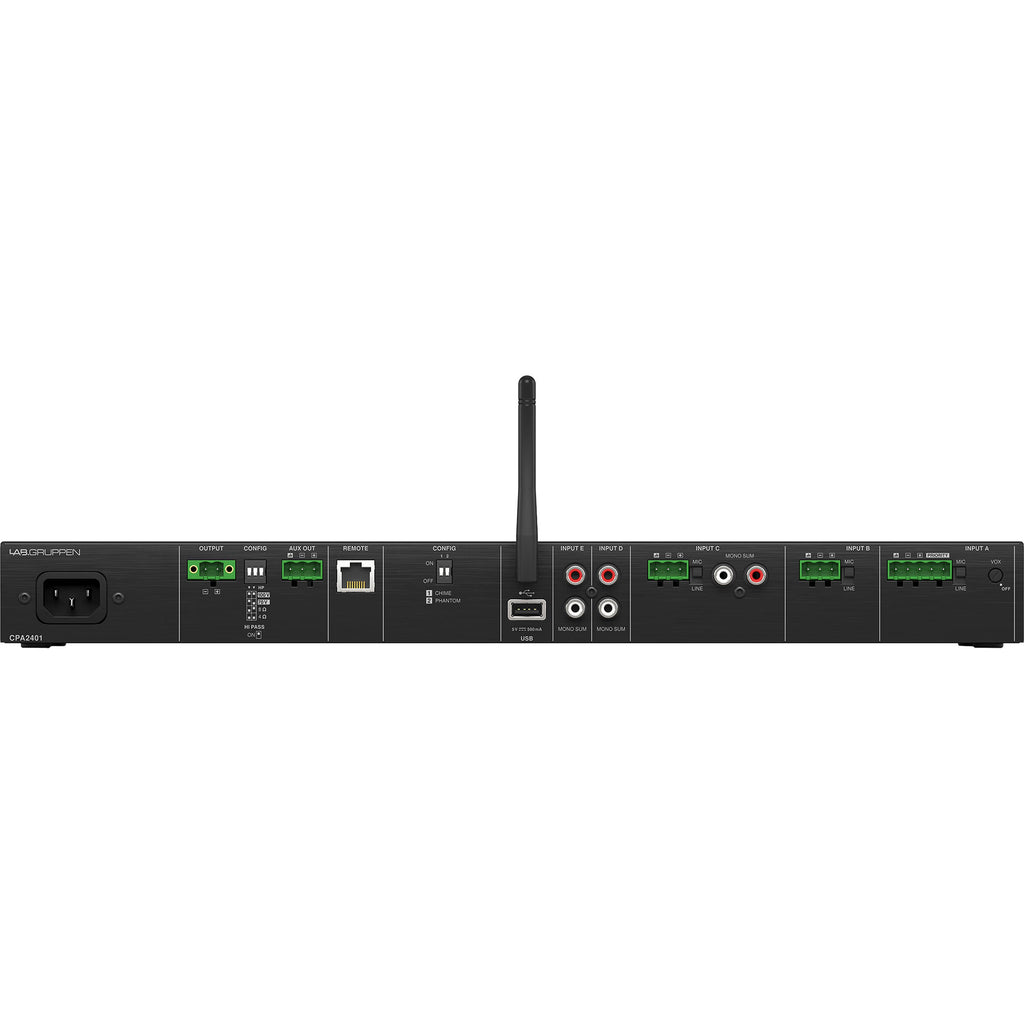

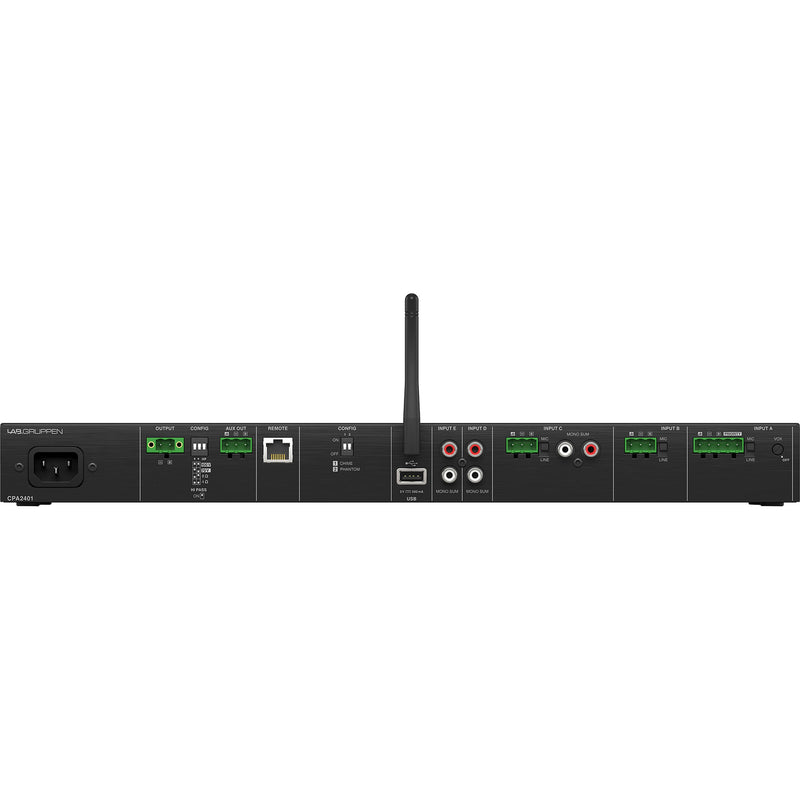

The days of tape decks and CD players are long gone. Now your music lives on your smartphone or computer tablet, so you can stop searching for those outdated cables and fancy adapters. Now with a simple wave of your hand, you can stream music from any Bluetooth-equipped device such as your smartphone, tablet, laptop, etc. The CPA2401 also provides a USB media player with an intuitive LCD navigation to play audio files via USB stick. For connecting a balanced source such as a mixer or audio processor, a standard 3-pin Euroblock Input socket is provided. Alternatively, RCA cables can be connected for unbalanced stereo sources (summed to mono), such as players, phones, or computers; however, only one input source should be used at a time. Loudspeaker Output is provided in the form of a standard 2-pin Euroblock socket.

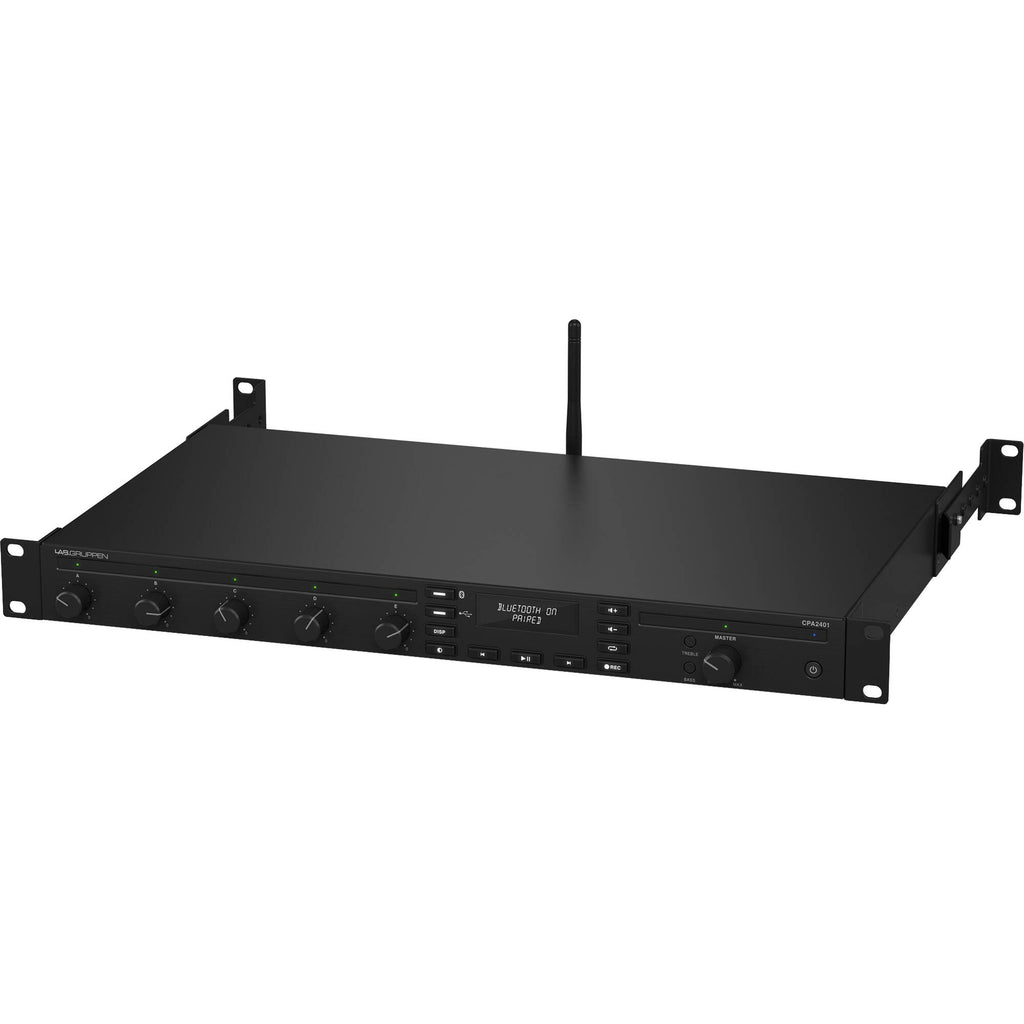

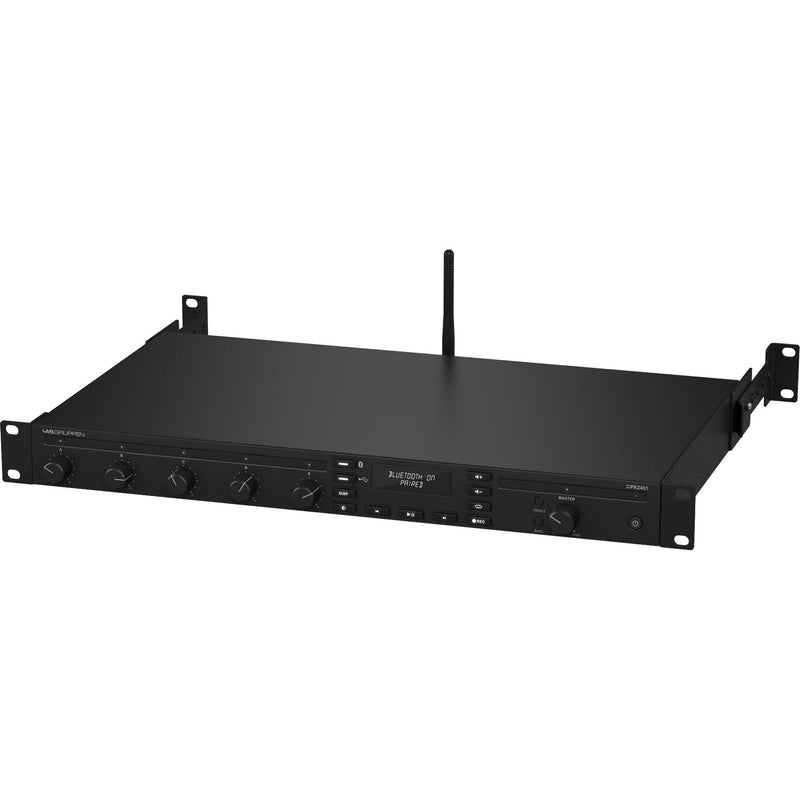

Easy to Install

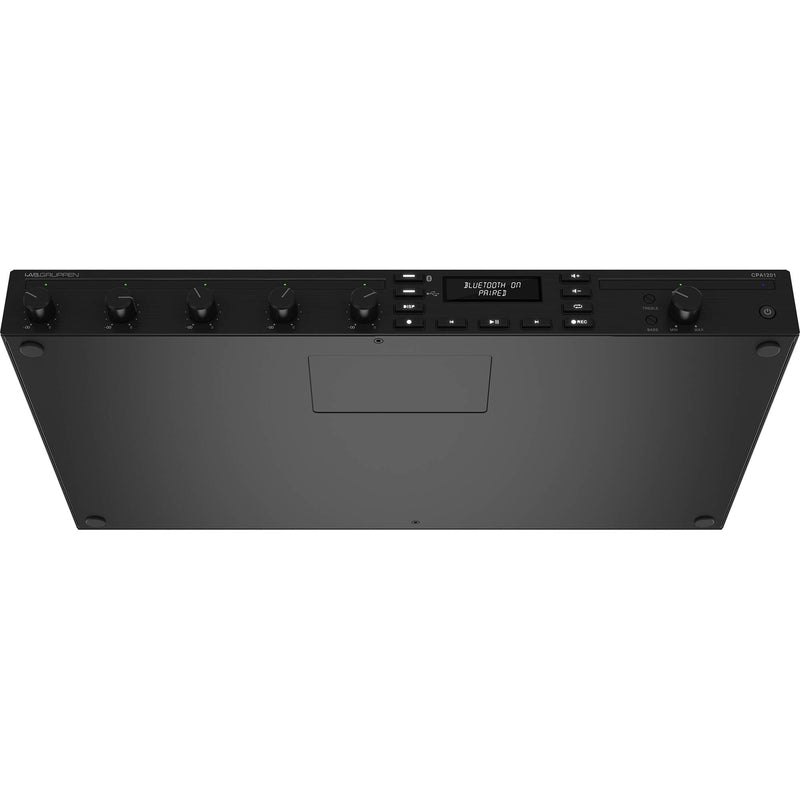

The CPA2401 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf, or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.
Automatic Power On/Off
The CPA2401 has a flexible power scheme with seamless and automatic power on/off based on the input signal, which reduces consumption when a signal is not present. With virtually zero configuration required, an energy smart and hassle-free amplifier system can easily be set up for hands-off operation. If the CPA2401 is powered on but does not receive an input signal for 20 minutes, the system automatically enters sleep mode to reduce power consumption. As soon as the Auto Ramp circuit detects a signal, the system powers on and normal operation resumes. The amplifier can also be instantly forced into standby mode or awakened via the front-panel power button.

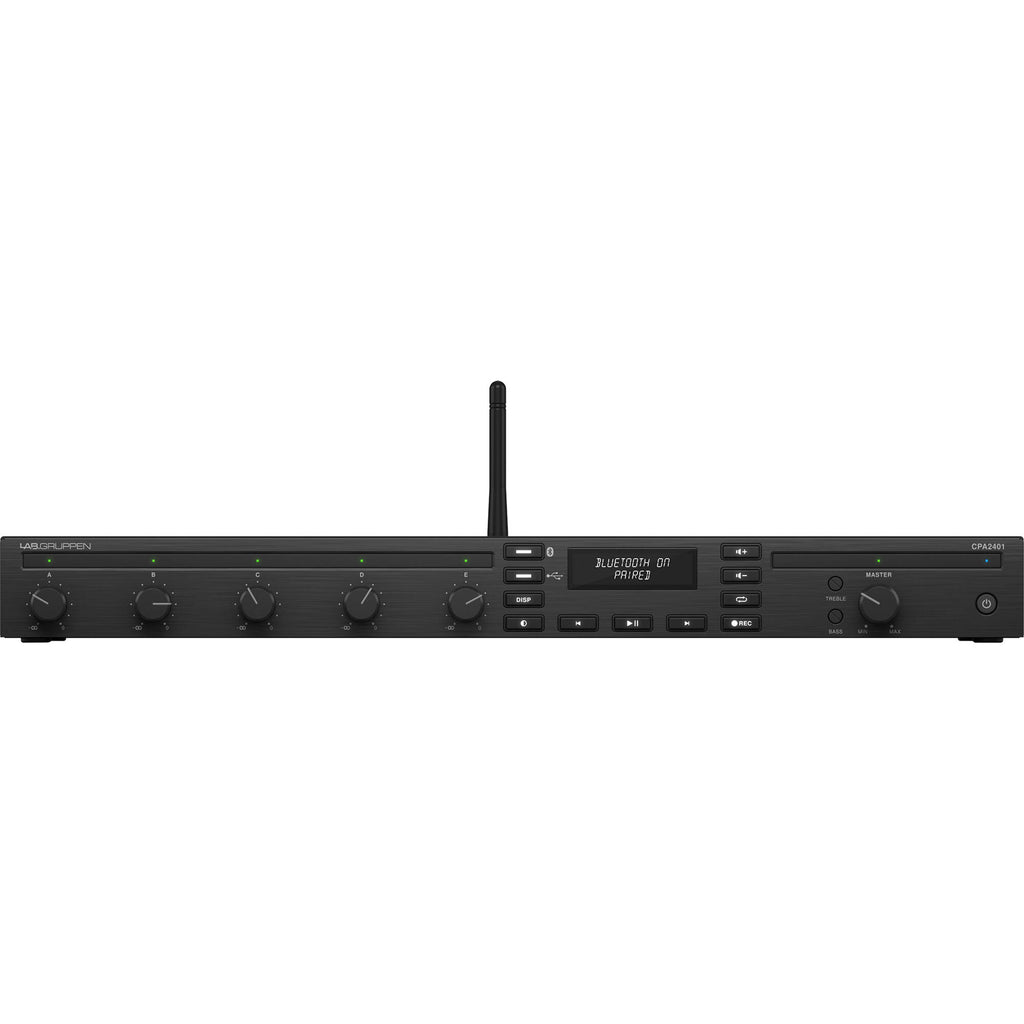

Simple Controls
CPA2401's controls are intuitive, allowing the operator to quickly adjust. The front-panel power button and Master volume knob are easily accessible, enabling virtually anyone to operate the system. Bass and Treble controls are also available for fine tuning, but require a tool when making changes.
Output Configuration

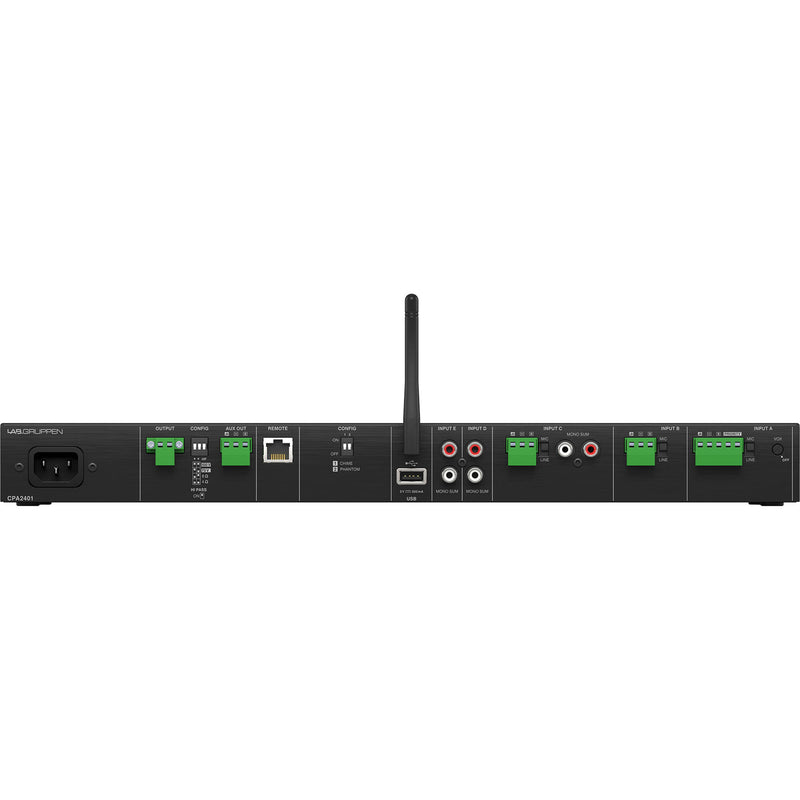

Intuitive configuration of the flexible outputs is provided directly adjacent to the rear panel Euroblock output connectors with dip switches, which allow selection of 100V, 70V, 8 ohms, or 4 ohms operation individually per channel. This configures both the maximum voltage of the output and the gain through the device. An individual control engages the built-in high-pass filter, which should be used on all constant voltage systems to avoid saturation on transformer-enabled loudspeakers and to help maintain sound integrity.
Expandable Remote Control
The RJ45 receptacle on the rear panel opens up a broad range of remote control options, including the CRC-V Series of wall controllers and a stylish tabletop controller, the LAB.LEVEL. All can be interconnected via inexpensive and readily available Ethernet cabling.
System Scalability
Commercial installs vary widely in scope and often grow and change over time. The CPA2401 is part of a family of products that provides both single- and dual-zone products that are perfect for building out a system to any size. With its individual zone volume and remote control capabilities, the CPA2401 is an ideal building block for a dynamic and scalable system solution.
Real-World Energy Savings
The CPA2401 120W Commercial Amplifier makes it easy to bring the highest-quality music and announcements to business and industrial environments in an easy to integrate, and even easier to operate system. Plus, with features such as its Auto Ramp and revolutionary direct drive constant power technology, the energy-efficient CPA2401 can generate enough energy savings to pay for itself in virtually no time at all.
In the Box
- Lab.Gruppen CPA2401 5-Input Commercial Mixer Amplifier with Bluetooth and USB Media Player
- Power Cord
- 3 x Euroblock Input Connectors
- 2 x Euroblock Output Connectors
- 2 x Front Angle Brackets
- 2 x Rear Flat Brackets
- Rear Angle Bracket with Shoulder Screw
- Set of Screws and Torx L-Key
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only)
Table of Contents
- Description
- At a Glance
- Easy to Hook Up
- Easy to Install
- Automatic Power On/Off
- Simple Controls
- Output Configuration
- Expandable Remote Control
- System Scalability
- Real-World Energy Savings
Lab.Gruppen CPA2401 Specs
Key Specs
| Number of Channels |
5 Input / 1 Output
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
1x 240 W Peak |
| Load Impedance / Voltage |
Mono/Stereo:
4 / 8 Ohms (Minimum) Mono/Stereo: 70 V (20 Ohms Minimum) 100 V (42 Ohms Minimum) |
| Audio I/O |
1x Block 5-Pin Balanced Line/Mic Input
2x Block 3-Pin Balanced Line/Mic Input 3x Stereo RCA TS Unbalanced Line Input 1x Block 3-Pin Balanced Aux Output |
| Digital Audio I/O |
No
|
| Network I/O |
1x RJ45 Ethernet
|
| USB I/O |
1x USB-A 2.0 (Audio)
|
| Rackmount Size |
1 RU (with Included Hardware)
|
Amplifier
| Form Factor/Type |
Rackmount (Rack-Mountable with Included Hardware)
|
| Number of Channels |
5 Input / 1 Output
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
1x 240 W Peak |
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
Mono/Stereo:
4 / 8 Ohms (Minimum) Mono/Stereo: 70 V (20 Ohms Minimum) 100 V (42 Ohms Minimum) |
Performance
| Protections |
DC Fault, Overcurrent, Thermal, Ultrasonic
|
| Frequency Response |
20 Hz to 20 kHz +0.5/-2 dB
|
| Input Sensitivity |
Block Mic:
0.038 V / -26 dBu Block Line: 1.23 V / +4 dBu RCA Line: 0.62 V / -2 dBu |
| I/O Impedance |
Block Line/Mic Input:
20 Kilohms (Balanced) 10 Kilohms (Unbalanced) |
| Input Level |
+16 dBu / 4.88 V Maximum
|
| Output Level |
Aux Output:
+16 dBu / 4.88 V Max |
| VCA Control |
Yes
|
| SNR |
> 95 dB
|
| Distortion |
< 0.5% (1/8th Rated Power)
|
| Crosstalk |
> 70 dB
|
Signal Processing
| EQ |
2-Band Shelving EQ per Channel:
Treble: ±10 dB at 10 kHz Bass: ±10 dB at 100 Hz |
| Filters |
1x High-Pass:
80 Hz |
| Ducking/Muting |
No
|
| Limiting |
Output
|
Connectivity
| Audio I/O |
1x Block 5-Pin Balanced Line/Mic Input
2x Block 3-Pin Balanced Line/Mic Input 3x Stereo RCA TS Unbalanced Line Input 1x Block 3-Pin Balanced Aux Output |
| Digital Audio I/O |
No
|
| Network I/O |
1x RJ45 Ethernet
|
| Speaker Outputs |
1x Block 2-Pin Main
|
| Number of Module Slots |
No
|
| USB I/O |
1x USB-A 2.0 (Audio)
|
| Phantom Power |
48 VDC
|
| Mobile App Compatible |
No
|
| Wireless |
Bluetooth 4.2
*Built-In |
| Bluetooth Profiles |
AVRCP 1.4, A2DP 1.2
|
| Wireless Range |
45' / 13.7 m
|
| Media/Memory Card Slot |
No
|
Power
| AC Input Power |
Universal:
100 to 240 VAC, 50 / 60 Hz (T 6.3 A L 250 V) |
| AC Power Connector |
1 x IEC 15 A / NEMA 5-15
|
| Power Consumption |
4 Ohms:
60 W (1/8 Power) |
| AC Outlet |
No
|
Physical
| Rackmount Size |
1 RU (with Included Hardware)
|
| Cooling |
Convection
|
| Dimensions |
17.2 x 1.7 x 9.8" / 436.9 x 43.2 x 248.9 mm
|
| Weight |
7 lb / 3.2 kg
|
