Description
- Built-in Power Sequencing Inputs
- Back-Slope AC Voltage Stabilization

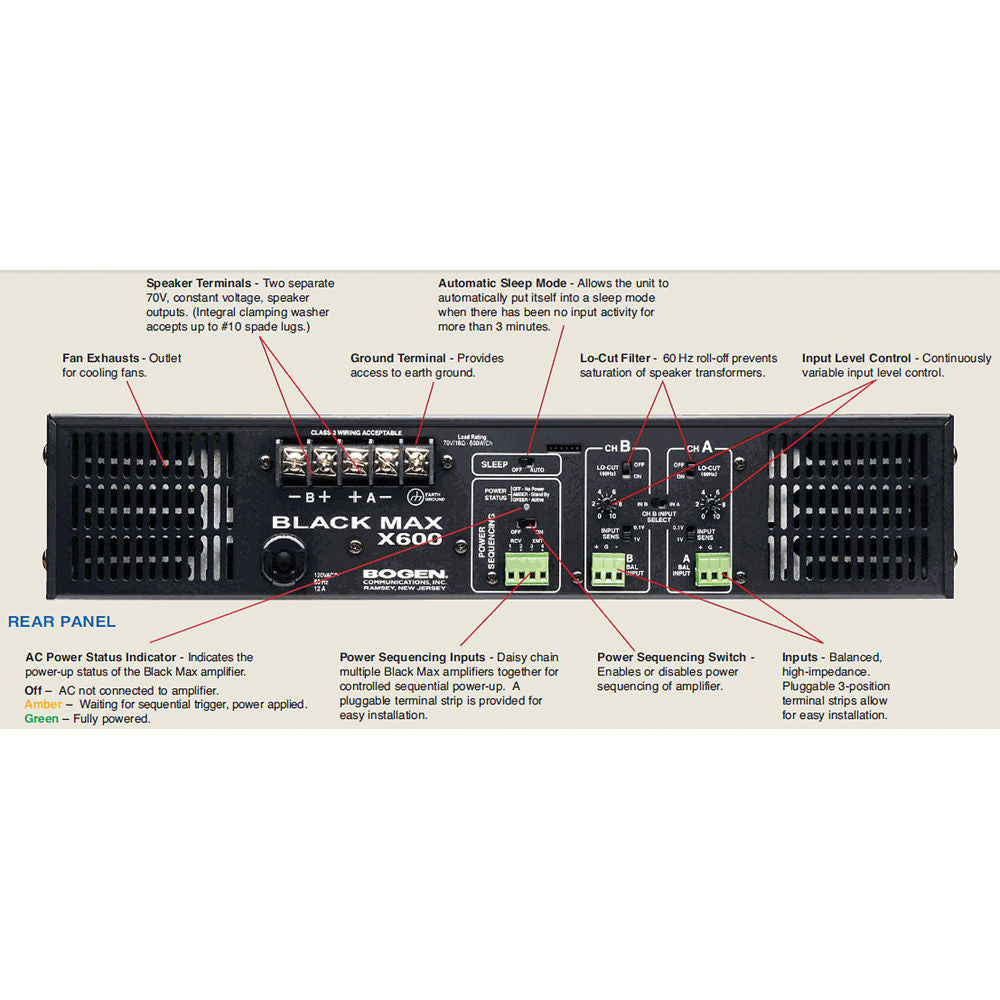

The X600 Black Max Power Amplifier from Bogen is powered by 600W per channel at 70V. Black Max amplifiers are designed with high efficiency class H amplification. The auto-sleep feature makes this amp ideal for continuously powered systems. The X600 features rear mounted volume controls, low-cut filters on each input and pluggable input terminal strips designed for permanent installations. Integrated power sequencing for controlling multiple Black Max amps in large systems help prevent in-rush problems. These features are packed in to a 14-gauge heavy duty chassis that only occupies 2 rack spaces.
- 600W per channel at 70V with independent low-cut filters on each input
- Low noise and distortion with high slew rate
- H class amplifiers are high efficiency
- Dual independent continuously variable cooling fans
- Pluggable terminal strip for sequencing wiring in multi-amp installations
UPC: 765368140019
In the Box
Bogen Communications X600 Black Max Power Amplifier 600W/per Channel @ 70V
- 15A Line Cord
- 1-Year Warranty
| Power Rating | 600W per channel @ 70V |
| Damping Factor | Not specified by the manufacturer |
| Input Sensitivity | 1V |
| Input Impedance | 8 ohms |
| Gain | Not specified by the manufacturer |
| Frequency Response | 20Hz-20kHz |
| Signal-to-Noise Ratio | 104 dB ref. 70V, F.P. |
| Total Harmonic Distortion (THD) | <0.02% |
| Input Connections | Pluggable 3-pin terminal strips |
| Output Connectors | Pluggable 3-pin terminal strips |
| Controls Front Panel | 5-pin "touch-proof" barrier strip |
| Controls (Rear) | Sleep Lo-Cut Filter x 2 Power Sequencing |
| Indicators | Status, Signal, Limit, AC Power Status (rear) |
| Cooling | Dual forced air variable speed fan |
| Power Consumption | 20A |
| Power Requirements | 95-130V AC, 60Hz |
| Dimensions | 17 x 3.5 x 16" (431.8 x 88.9 x 406.4mm) |
| Weight | 46 lbs (20.86kg) |
| Specialties | Auto sleep mode Power Sequencing |
| Packaging Info | |
|---|---|
| Package Weight | 54.0 lb |
| Box Dimensions (LxWxH) | 24.0 x 23.5 x 9.5" |
