Description
- 3 Modes -Stereo/Mono/70V Mono

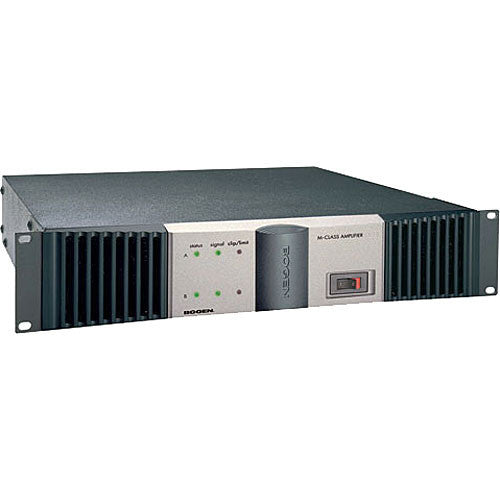

The M300 from Bogen is a Power Amplifier that produces 300W stereo and 600W mono power. This powerful amp is flexible and reliable for a variety of professional installations. The M300 relies on a massive power toroid, heat sinks, Back-Slope AC voltage stabilization in a heavy duty 14-gauge chassis. 3 modes of operation are available including 70V mono, dual mono and stereo plus 2 modular input bays for prioritized inputs. This full featured amp is packaged in only 2 rack spaces and can be stacked above or below without extra space.
- 3 selectable low-frequency roll-off choices at flat/65/125Hz
- 2x1 mixer function when in mono modes
- Post- and Pre-EQ Output Feeds (in mono mode)
- DC, overload, and thermal protection circuits
- Back-Slope AC voltage stabilization provides dependable performance even with varying AC line voltages
UPC: 765368391046
| Power Rating | 600W @ 8 ohms 300W per channel 200W per channel |
| Damping Factor | Not specified by the manufacturer |
| Input Sensitivity | 0.840V for 300W @ 4 ohms |
| Input Impedance | 4-8 ohms, 70V |
| Gain | Not specified by the manufacturer |
| Frequency Response | 20Hz-20kHz |
| Signal-to-Noise Ratio | 103 dB ref. 8 ohms, F.P. |
| Total Harmonic Distortion (THD) | <.02% |
| Input Connections | 2 new Bogen std. 12-pin connector modules/RCA input |
| Output Connectors | 5-pin "touch-proof" Barrier Strip, RCA Pre- & Post-EQ Output |
| Controls Front Panel | Power on/off Volume Control |
| Controls (Rear) | Channel Balance Lo-Cut Filter Impedance Selector |
| Indicators | Status (On/Protect/Sleep), Clip/Limit, Signal |
| Cooling | Forced Air Variable Speed Fan |
| Power Consumption | 12A |
| Power Requirements | 95-130VAC/60Hz |
| Dimensions | 17 x 3.5 x 16" (431.8 x 88.9 x 406.4mm) |
| Weight | 41 lbs (18.6kg) |
| Specialties | 2 module bays |
| Packaging Info | |
|---|---|
| Package Weight | 46.0 lb |
| Box Dimensions (LxWxH) | 24.0 x 24.0 x 10.0" |
In the Box
Bogen Communications M300 Power Amplifier 300W Stereo/600W Mono
- 15A Line Cord
- Balanced, High Impedance Stereo Input Module
- 1-Year Warranty
