Description

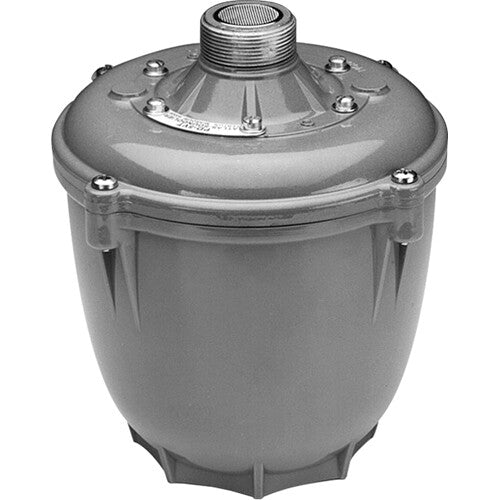

AtlasIED PD-5VT Overview
Add powerful sound reproduction to your business with the Atlas PD-5VT Compression Driver, a versatile, 40W / 70.7V driver that's ideal for a variety of applications including recreational and athletic facilities, arenas, church towers, exhibit and meeting halls, civil defense and government facilities, transportation and storage terminals, factories, warehouses, and more.
The PD-5VT is fully environment-resistant for indoor or outdoor applications and feature a sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, and a 2" voice coil. The internal components are enclosed within a protective die-cast housing. The PD-5VT is equipped with a ceramic magnet and includes a built-in, varnish-impregnated, tropic-sealed, multi-tap 70.7V line-matching transformer, (also adaptable to 25V audio system operation) which offers a selection of terminals for matching to the appropriate impedance and power taps.
- 40W power rating
- Environment-resistant construction for indoor/outdoor use
- Powerful driver mounts to large-format horns to deliver outstanding sound reproduction for music, public address, and signaling systems
- Extended frequency response range for optimum intelligibility
- Terminated in standard 1-3/8"-18 thread male coupling for use with screw-on horns or with Atlas Sound Model DA-FH and YDA-TH adapters for bolt-on large-format horns
- Equipped with corrosion-resistant, screw-type, wiring terminals
- Protected by a transparent impact-resistant plastic cover (also provides strain relief for interconnecting cable)
- Die-cast housing, finished in gray baked epoxy
In the Box
- AtlasIED PD-5VT High-Efficiency Compression Driver for Large-Format Horn Speaker with 40W / 70V Transformer
- Limited 60-Month Manufacturer Warranty
Additional Resources
No additional resources available
AtlasIED PD-5VTSpecs
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Horn
|
| Power Handling |
40 W
|
| Constant Voltage / Transformer Taps |
40 / 20 / 10 / 5 / 2.5 W or 16 Ohms Bypass
|
| Impedance |
16 to 2000 Ohms
|
| Color |
Gray
|
| Active/Passive |
Passive
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Horn
|
| Power Handling |
40 W
|
| Constant Voltage / Transformer Taps |
40 / 20 / 10 / 5 / 2.5 W or 16 Ohms Bypass
|
| Impedance |
16 to 2000 Ohms
|
| Transformer Wattage |
40 W
|
| Full-Range Voice Coil |
2" / 50.8 mm
|
| Frequency Response |
190 Hz to 4.2 kHz ±5 dB
|
| Maximum SPL |
111.2 dB
|
| Maximum Input Voltage |
70 V
|
| Inputs/Outputs |
1x Screw Terminal 2-Pin Speaker Input
|
| Environmental Resistance |
No
|
| Color |
Gray
|
| Dimensions |
6.9 x 6.4" / 175 x 162 mm
|
| Weight |
7 lb / 3.2 kg
|
