Description

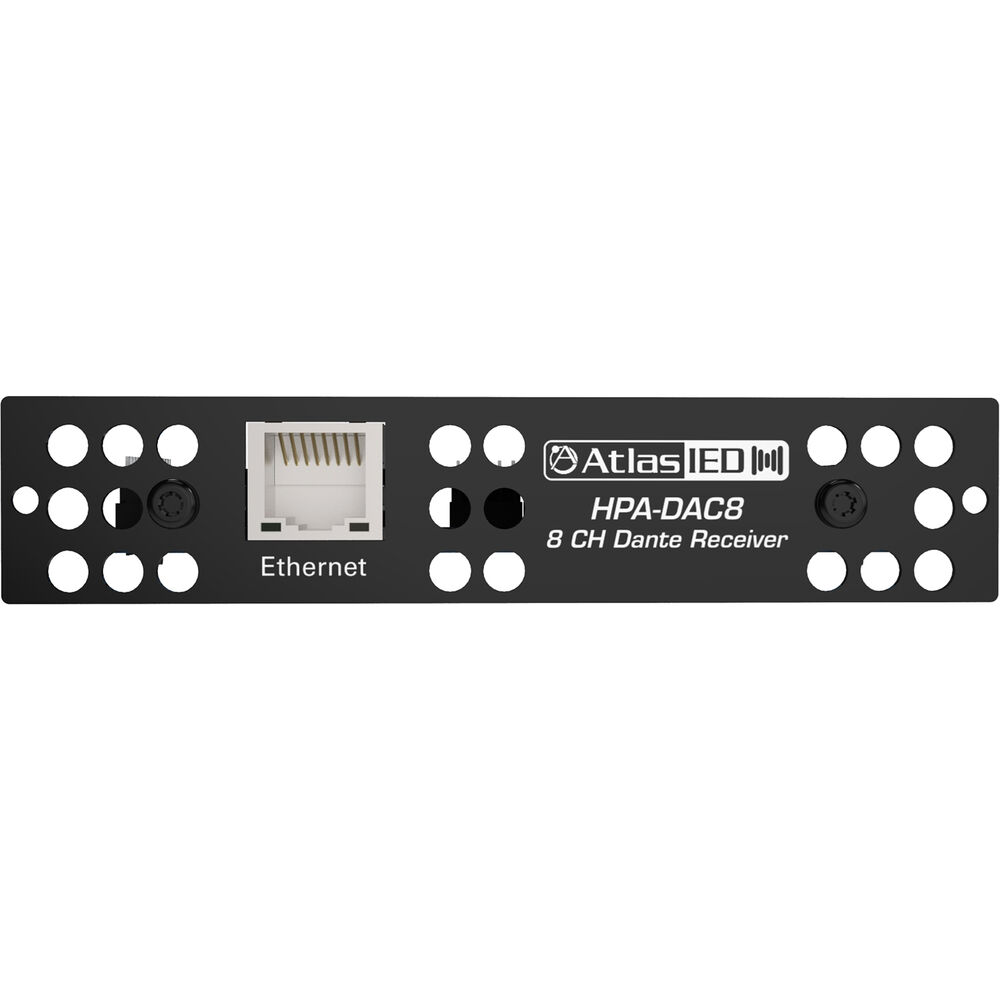

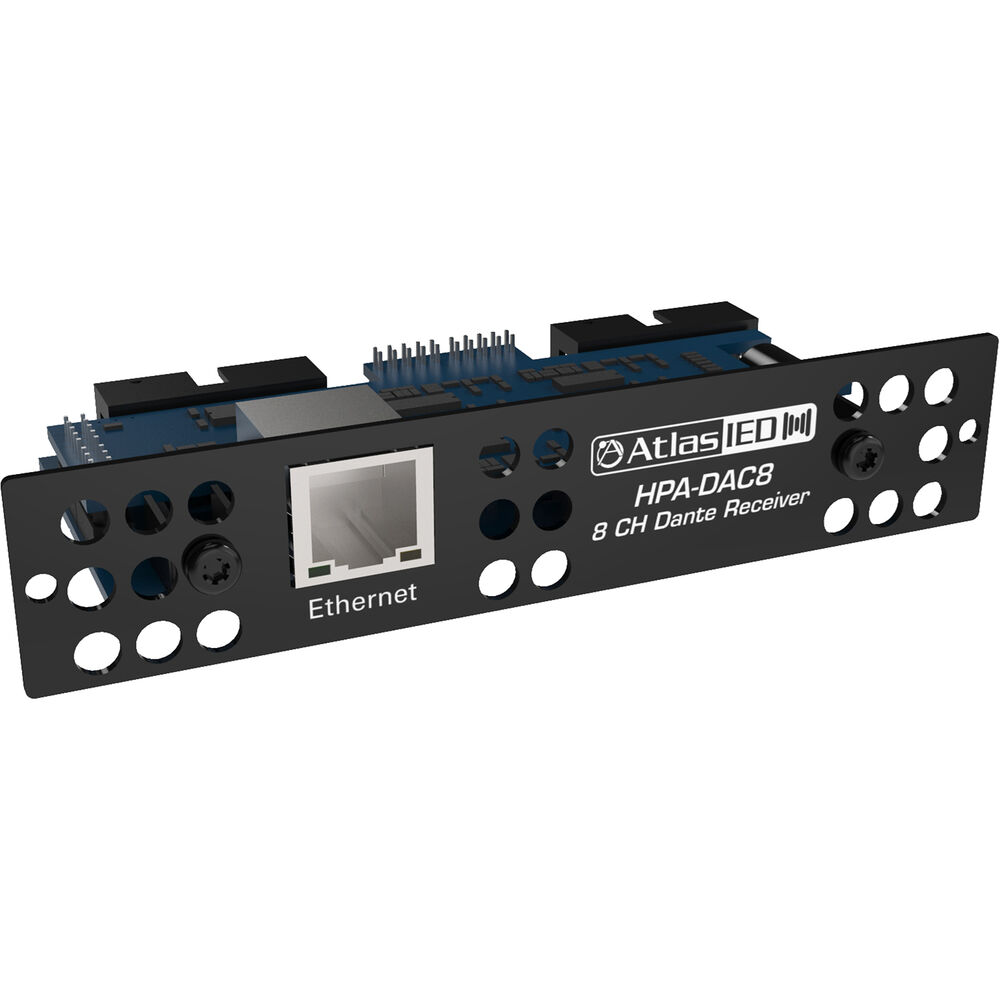

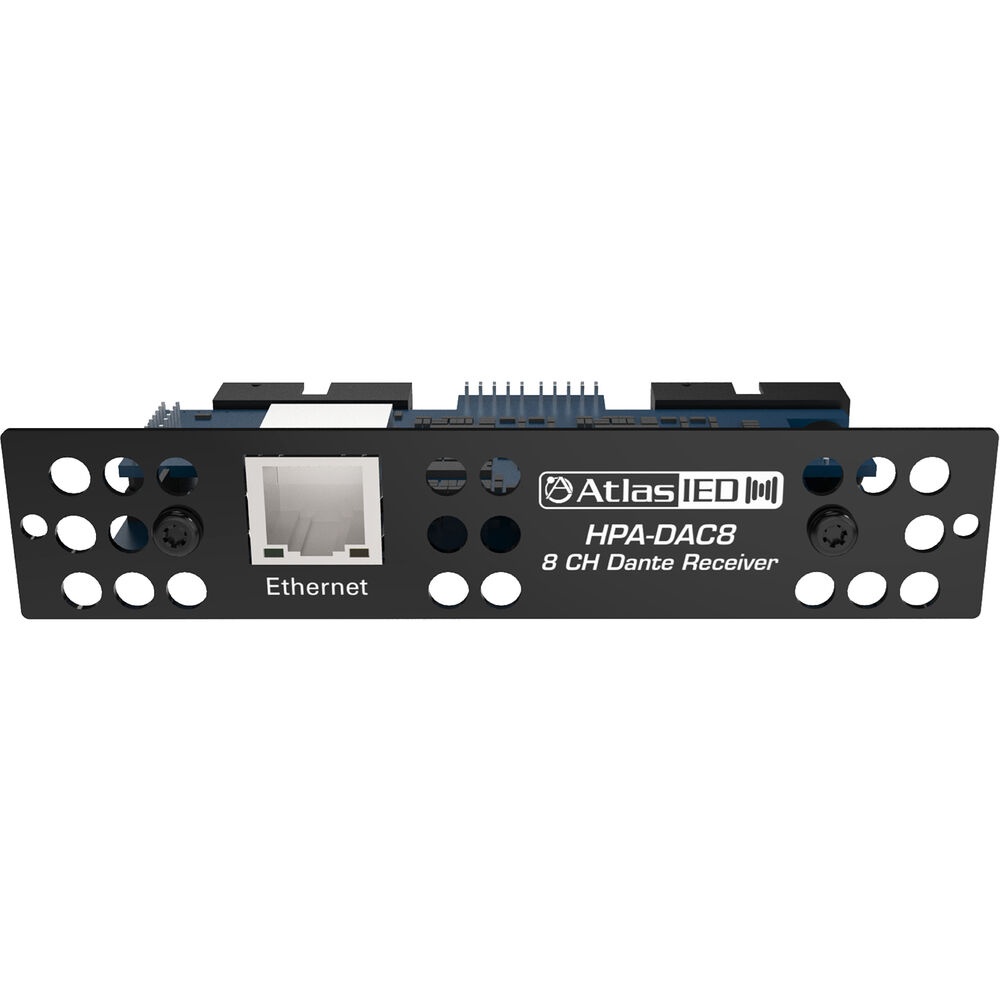

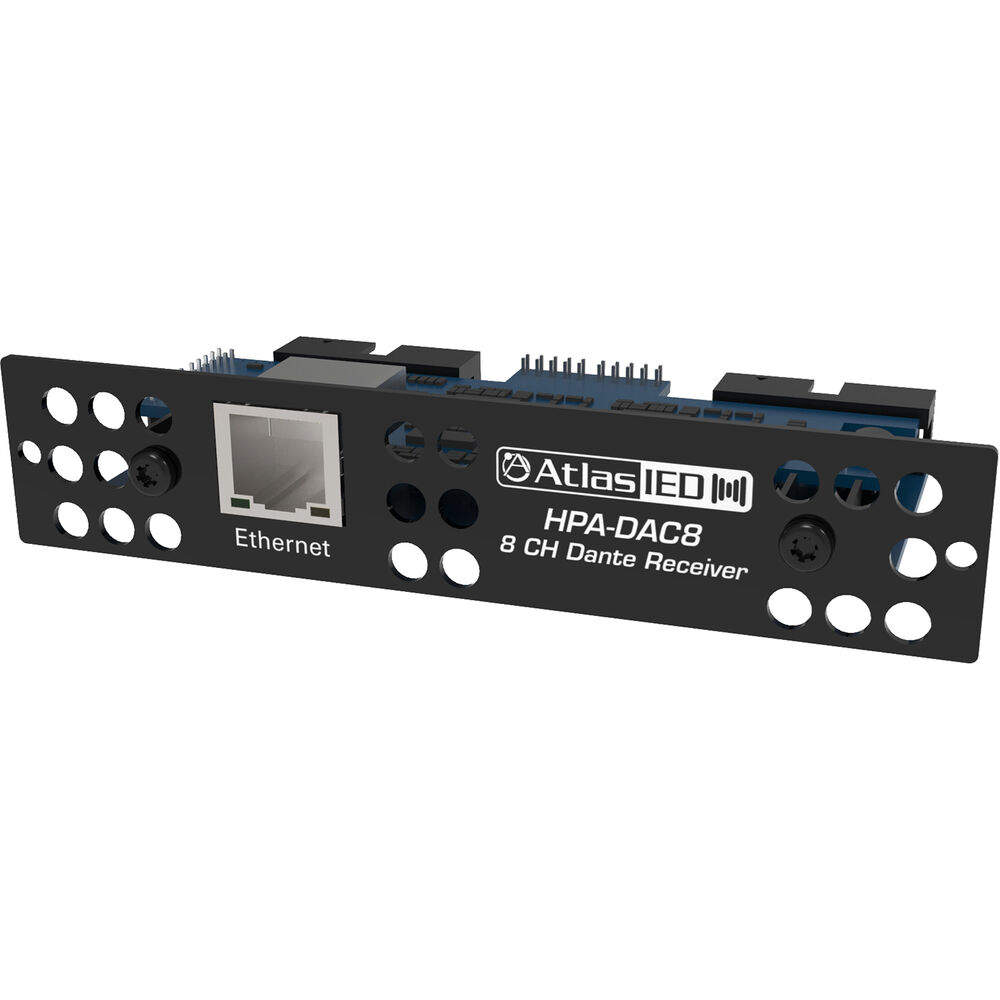

AtlasIED HPA-DAC8 Overview
Add eight Dante inputs to your amplifier with the AtlasIED HPA-DAC8, an accessory card that's designed for 8-channel HPA series amplifiers. The card is easily installed and features digital audio transportation over standard IP networks.
All amplifier channels are isolated from each other and are electronically summed together forming a mixed output. t. Both the Dante input and the analog balanced input levels to the amplifier channel are controlled by their respective channels.
At a Glance
- Dante digital audio platform
- 8-channel receiver
- Integrates with 8-channel HPA amplifiers
Items Included
- AtlasIED HPA-DAC8 Eight-Input Dante Accessory Card For HPA Amplifiers
- Limited 3-Year Manufacturer Warranty
Additional Resources
AtlasIED HPA-DAC8 Specs
General
| Compatibility |
AtlasIED HPA Amplifiers
|
Inputs/Outputs
| System |
Type: 8 Input Dante Receiver Card for the HPA Series Amplifiers
Connection: Single RJ-45 Cable Quality: CAT-5 Gain Settings: None Indicators: Ethernet Network Activity LED Green / Yellow Amplifier Interface: 2 x 16 Pin HPA Amplifier Connections |
| Electrical |
Dante Transmission Speed: 100 Mbps
Frequency Response: 20 Hz to 20 kHz ±1 dB THD: 0.06% at 1 kHz Maximum Input Level: 13 dBu, 3.5 V Noise: -83dBu |
Power
| Power Source |
Proprietary Interface
|
Physical
| Color |
Black
|
| Material of Construction |
Steel
|
| Dimensions |
4.7 x 2.5 x 0.97" / 11.9 x 6.3 x 2.46 cm
|
| Weight |
0.15 lb / 0.07 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 150106.6 |
| 3-5 | ₹ 148574.9 |
| 5-10 | ₹ 145511.5 |
| 10+ | ₹ 142448.1 |
Bulk discount will be automatically applied during checkout based on quantity.
