Description

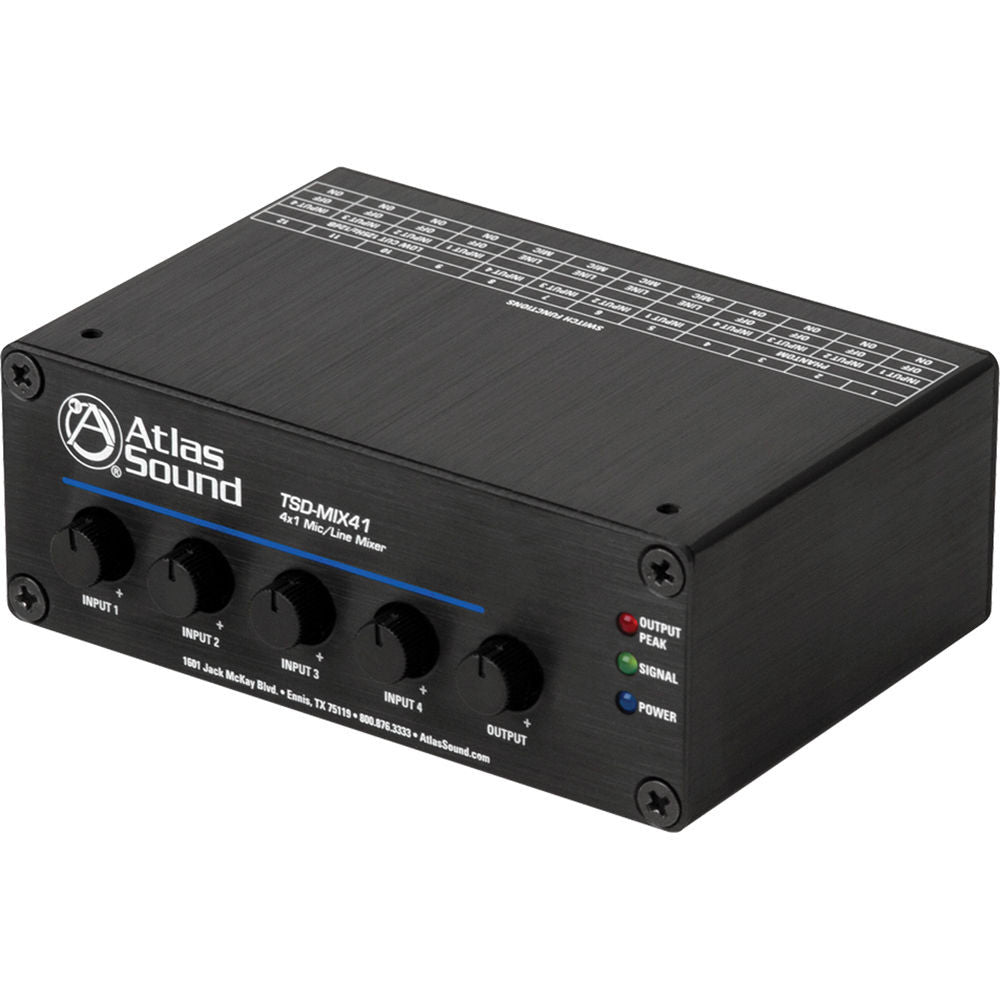

The TSD-MIX41 4x1 Mic/Line Mixer from Atlas Sound is designed for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 can be used to combine similar sources such as choir microphones to a single mixer channel. The unit also works as a stand-alone mic/line mixer that can be interfaced with Atlas Sound amplifiers. Other applications include restaurants, conference rooms, and schools.
Each input is mic/line switchable with phantom power provided for condenser microphones. The low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter at 125Hz also is available on each input to minimize bass rumble and low frequency feedback. A 24VDC power supply (available separately) is required for operation.
- Audio Applications
-
- Mic Preamp
- Line Preamp
- Line Drive
- Choirs
- Four Balanced Mic/Line Inputs
- Four Microphone Preamps with Switchable 24V Phantom Power
- Up to 50dB Mic Gain Per Input
- 12dB/Octave Low Cut Filter @ 125Hz
- Balanced Line Output
- Input Peak & Signal Indicator LEDs
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections

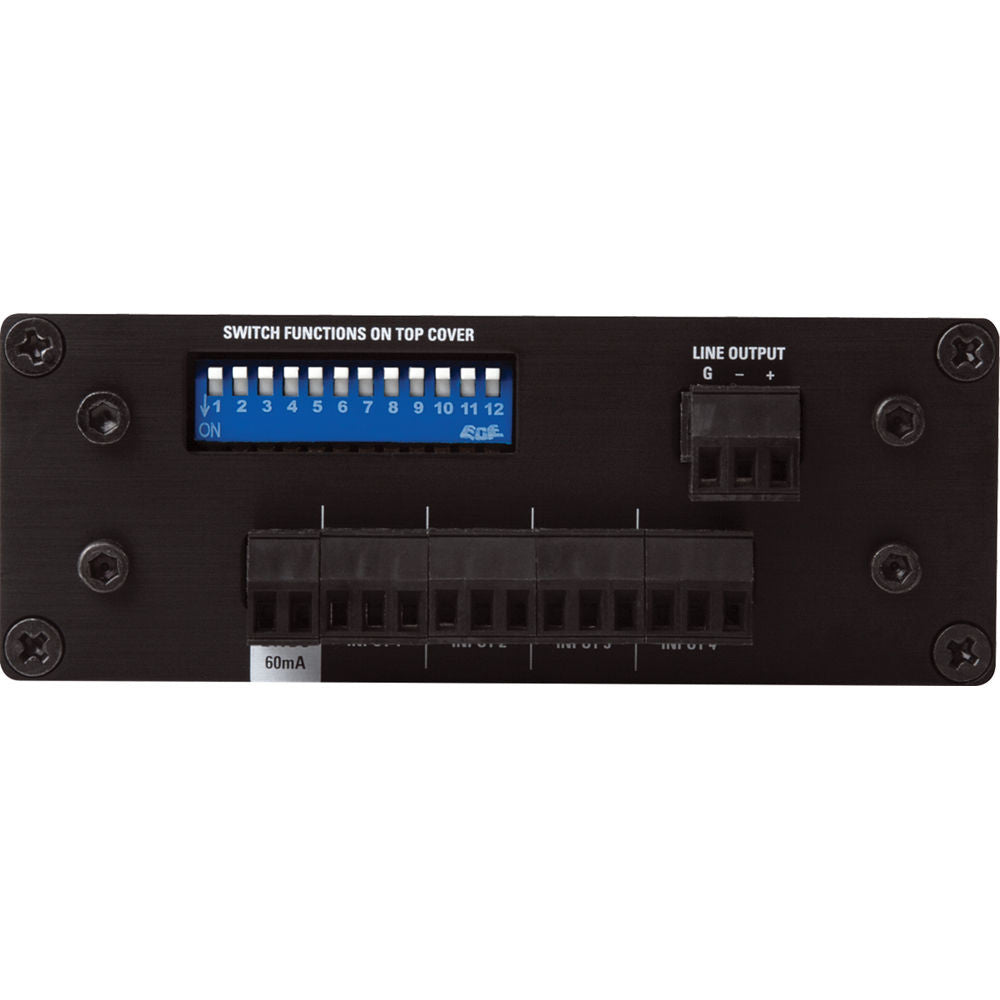

- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
- Set of Security Covers for Front Panel Controls
- Set of Hook and Loop Fasteners
- 2 x Brackets
- 2 x Cable Retainers
- Limited 1-Year Warranty
| Inputs | |
|---|---|
| Type | 4x Balanced mic or line selectable removable 3-position captive screw 1/8" (3.5 mm) spacing |
| Impedance | Balanced: 1.2 k? Unbalanced: 600 ? |
| Phantom Power | 24 V DC, defeatable |
| Low Cut Filters | 125 Hz/12 dB, defeatable |
| Line Input Level | 1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output Maximum Input: 6 V (+15 dBV) |
| Mic Input Level | 46 dB Gain, 1 0mV (-40 dB) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 40 mV (-27 dBV) |
| Outputs | |
|---|---|
| Type | 2x Balanced line removable 3 position captive screw 1/8" (3.5 mm) spacing |
| Impedance | Balanced: 300 ? Unbalanced: 150 ? |
| Line Output Level | 1 V (0 dBV) In = 2 V (+6 dBV) Maximum Output: 6 V (15 dBV) |
| Controls | |
|---|---|

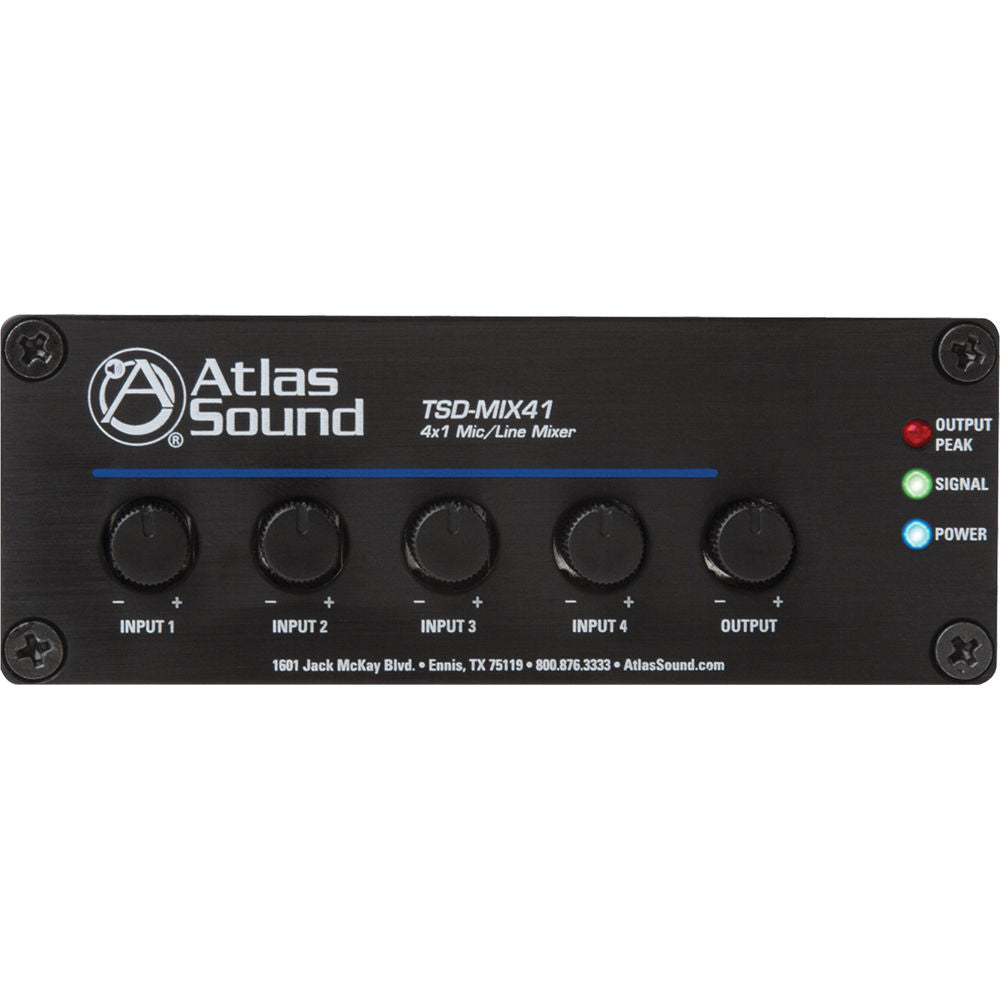

| Input Level | 4x Removable Knobs with Security Covers |
| Output Level | 1x Removable Knob with Security Cover |

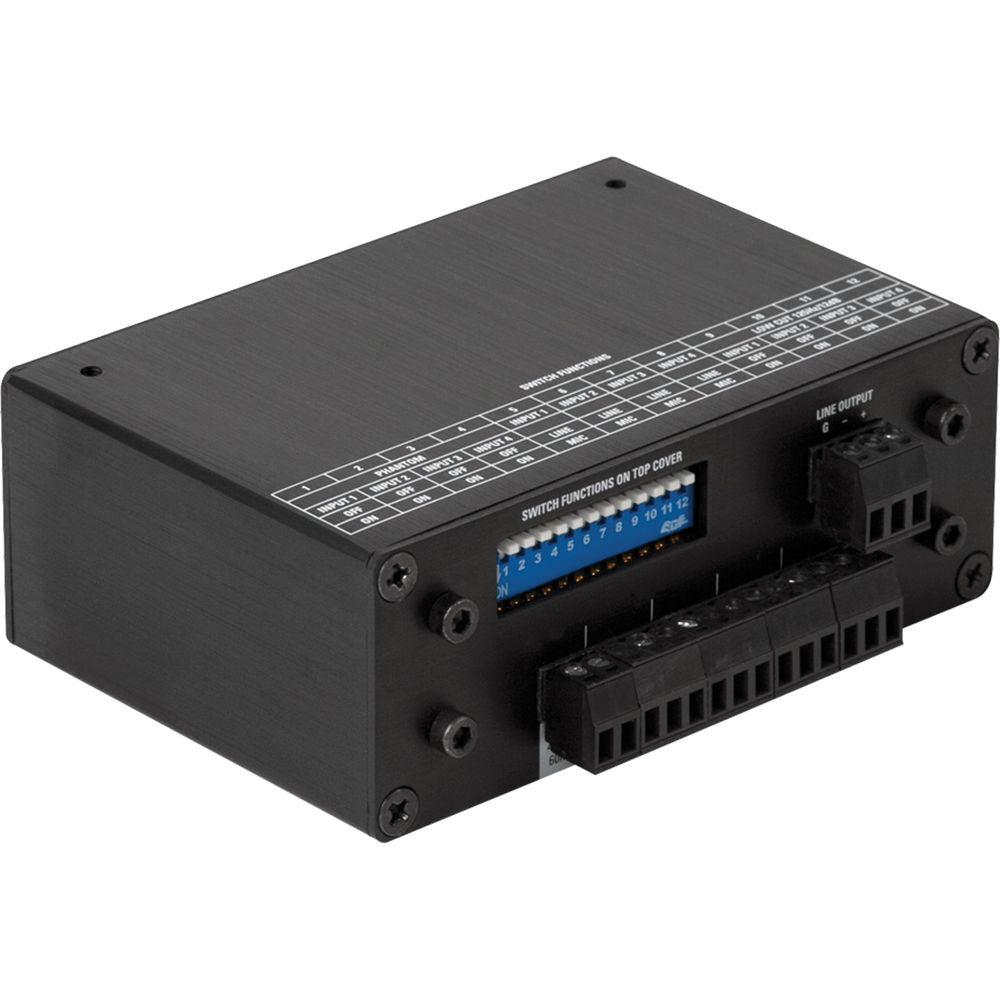

| Dip Switches | 4x Phantom Power 24 VDC 4x Input Mic/Line Select 4x Input 125 Hz/12 dB High Pass Filters |
| Indicators | |
|---|---|
| Output Signal | Green, 25 mV On Threshold |
| Peak | Output Peak: Red, -3 dB Before Clip |
| Power | Blue |
| Electrical | |
|---|---|
| Frequency Response | 20 Hz to 20 kHz (�1 dB) |
| THD | 0.06% @ 1 kHz |
| Signal to Noise Ratio | Line to Line: 85 dBV Mic to Line: 78 dBV |
| Power Requirements | |
|---|---|
| Voltage | 24 VCD |
| Power Consumption | 60 mA 1.4 W |
| General | |
|---|---|
| Chassis | Aluminum |
| Certifications | External Power Supply: cUL, CE, RoHS, TUV |
| Dimensions (H x W x D) | 1.5 x 4 x 2.75" (39 x 101 x 70 mm) |
| Weight | 6 oz (165 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
