Description
Teledyne Flir Oryx 10GigE 7.1MP Overview

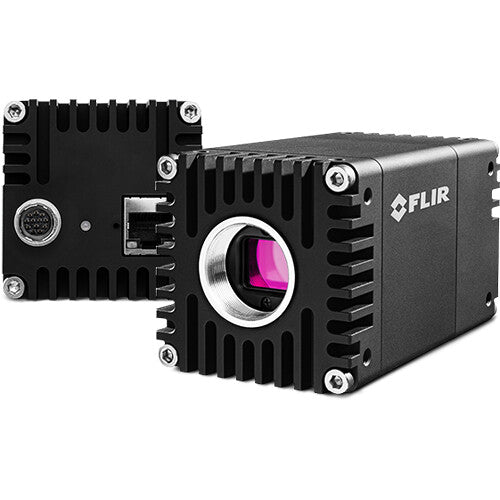

The Teledyne FLIR Oryx 10GigE 7.1MP 4K Color Camera delivers UHD imaging with a 1.1", 7.1MP Sony CMOS global shutter sensor and advanced onboard image processing. Supporting capture of 4K 12-bit video at up to 60 fps, the camera outputs over a 10GBASE-T interface for reliable, uncompressed transfer across cable runs exceeding 164' on Cat 6a. Its 240MB image buffer, motion-tuned processing features, and precise IEEE1588 clock synchronization make it well suited for applications requiring accurate timing and low-latency acquisition.
The Oryx 10GigE integrates seamlessly into GigE Vision workflows and provides flexibility for system designers through hardware and software triggers, multiple acquisition modes, and support for both manual and automatic white balance. Image optimization tools, including gamma, lookup table, pixel correction, target gray value, and sharpness, reduce host-side processing demands. The 12 to 24V power is supplied via a 12-pin Hirose connector, while its robust design and C-mount lens interface ensure adaptability across machine vision, broadcast, and industrial environments.
- 1.1" 7.1MP Sony IMX420 CMOS sensor with 3208 x 2200 resolution
- Global shutter with 4.5?m pixel size
- Capture 12-bit color video up to 60 fps over 10GigE
- Pixel correction, gamma, lookup table, target gray value, and sharpness processing
- Exposure range of 10 ?s to 30 seconds with manual and automatic gain control
- RJ45 port with 10GBASE-T for data transfer over Cat 6a and Cat 5e cables
- IEEE1588 clock synchronization for precise multi-device timing
- Fully GigE Vision compliant with third-party software support
- Synchronization via software trigger, hardware trigger, or action command
- 12-pin Hirose connector for 12 to 24V power input
- 240MB image buffer with continuous, single, and multi-frame acquisition modes
- 4MB onboard flash memory for nonvolatile storage
- C-mount lens interface with IR cut filter (670nm)
Items Included
- Teledyne Flir Oryx 10GigE 7.1MP 4K Color Camera (C-Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Teledyne Flir Oryx 10GigE 7.1MP Specs
| Image Sensor |
1.1"-Type CMOS
|
| Sensor Resolution |
Effective: 7.1 Megapixel
|
| Lens Mount |
C
|
| Video Output |
RJ45
3208 x 2200 |
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x RJ45 (HDBaseT) Output
|
| Power I/O |
1x Hirose 12-Pin Input
|
| Adapter / Cable |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
12.0 to 24.0 VDC
|
| Power Consumption |
13.6 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, IEEE1588, KCC, REACH, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
3.9 x 2.4 x 2.4" / 10 x 6 x 6 cm
|
| Weight |
1.1 lb / 500 g
|
