Description

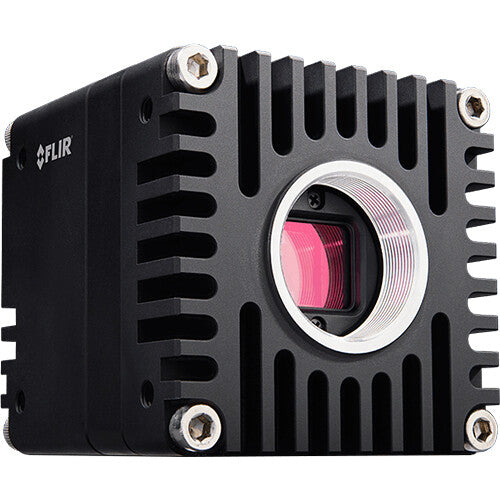

Teledyne Flir Oryx 10GigE 5MP Overview
The Teledyne FLIR Oryx 10GigE 5MP 4K Black and White Camera delivers monochrome UHD imaging with a 2/3", 5MP Sony CMOS global shutter sensor and advanced onboard image processing. Supporting capture of 4K 12-bit video at up to 60 fps, the camera outputs over a 10GBASE-T interface for reliable, uncompressed transfer across cable runs exceeding 164' on Cat 6a. Its 240MB image buffer, motion-tuned processing features, and precise IEEE1588 clock synchronization make it well suited for applications requiring accurate timing and low-latency acquisition.
The Oryx 10GigE integrates seamlessly into GigE Vision workflows and provides flexibility for system designers through hardware and software triggers, multiple acquisition modes, and support for both manual and automatic gain control. Image optimization tools, including gamma, lookup table, and sharpness, reduce host-side processing demands. The 12 to 24V power is supplied via a 12-pin Hirose connector, while its robust design and C-mount lens interface ensure adaptability across machine vision, broadcast, and industrial environments.
- 2/3" 5MP Sony IMX250 CMOS sensor with 2448 x 2048 resolution
- Global shutter with 3.5?m pixel size
- Capture 12-bit black and white video up to 60 fps over 10GigE
- Gamma, lookup table, and sharpness processing
- Exposure range of 17 ?s to 30 seconds with manual and automatic gain control
- RJ45 port with 10GBASE-T for data transfer over Cat 6a and Cat 5e cables
- IEEE1588 clock synchronization for precise multi-device timing
- Fully GigE Vision compliant with third-party software support
- Synchronization via software trigger, hardware trigger, or action command
- 12-pin Hirose connector for 12 to 24V power input
- 240MB image buffer with continuous, single, and multi-frame acquisition modes
- 4MB onboard flash memory for nonvolatile storage
- C-mount lens interface
Items Included
- Teledyne Flir Oryx 10GigE 5MP 4K Black and White Camera (C-Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Teledyne Flir Oryx 10GigE 5MP Specs
| Image Sensor |
2/3"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| Lens Mount |
C
|
| Supports Color Recording |
No
|
| Video Output |
RJ45
2448 x 2048 |
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x RJ45 (HDBaseT) Output
|
| Power I/O |
1x Hirose 12-Pin Input
|
| Adapter / Cable |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
12.0 to 24.0 VDC
|
| Power Consumption |
12.3 W
|
| Operating Conditions |
32 to 158?F / 0 to 70?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, IEEE1588, KCC, REACH, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
2.5 x 2.4 x 2.4" / 6.4 x 6 x 6 cm
|
| Weight |
0.8 lb / 386 g
|
