| ₹ 765055.0 includes GST and import duties. | |
| B2B customers can avail ₹ 116670.89 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

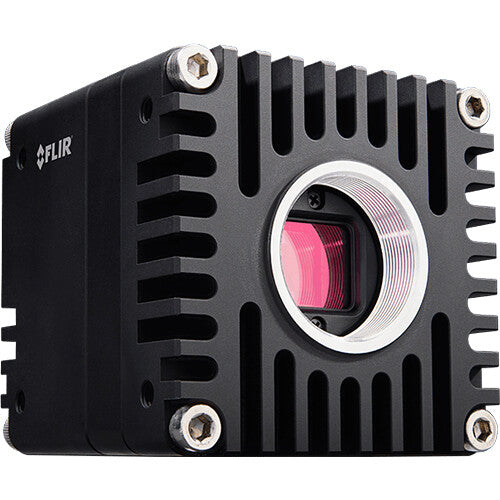

Teledyne Flir Oryx 10GigE 24.5MP Overview
The Oryx 10GigE 24.5MP Black & White Camera from Teledyne Flir captures up to 5320 x 4600 resolution video and offers 10 Gb/s Ethernet output. Its maximum standard frame rate is 44 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. For a wide variety of varifocal and fixed focal length lenses, utilize separately available C or F lens mounts.
Features include a Sony IMX530 1.2" 24.5MP CMOS sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera using a 12-pin Hirose power source.
Internal Camera Features
- Acquisition modes: Continuous, Single Frame, Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 7 ?s to 30 seconds
- Flash memory: 4MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 240MB
- Image processing: gamma, lookup table, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
Performance
- Absolute sensitivity threshold (y): 3.95
- Dynamic range: 70.23 dB
- Gain range: 0 to 48 dB
- Quantum efficiency mono: 72 at 530nm
- Saturation capacity (e-): 9259
- Temporal dark noise (read noise): 2.35
Items Included
- Teledyne Flir Oryx 10GigE 24.5MP Black & White Camera
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Teledyne Flir Oryx 10GigE 24.5MP Specs
Imaging
| Image Sensor |
1.2"-Type CMOS
|
| Sensor Resolution |
Effective: 24.5 Megapixel
|
| Lens Mount |
Interchangeable Mount
|
| Image Stabilization |
No
|
Recording
| Supports Color Recording |
No
|
| Video Output |
RJ45
5320 x 4600 |
Exposure Control
| Shutter Type |
Electronic Global Shutter
|
Interface
| Video I/O |
1x RJ45 (HDBaseT) Output
|
| Power I/O |
1x Hirose 12-Pin Input
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
Power
| Voltage |
12.0 to 24.0 VDC
|
| Power Consumption |
13.8 W
|
Environmental
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
General
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
4.5 x 2.4 x 2.4" / 115 x 60 x 60 mm
|
| Weight |
1.1 lb / 508 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 749753.9 |
| 3-5 | ₹ 742103.35 |
| 5-10 | ₹ 726802.25 |
| 10+ | ₹ 711501.15 |
Bulk discount will be automatically applied during checkout based on quantity.
