Description
Teledyne Flir DR-U3-50Y2M-C1 Overview

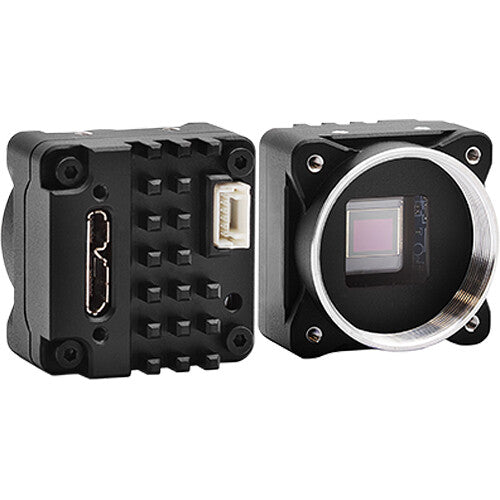

The Dragonfly S USB3 5MP Black & White Camera with Back Connector from Teledyne Flir captures up to 2952 x 1944 resolution video in tight spaces for biomedical, 3D scanning, inspection, and other industrial applications. The camera has a micro-USB 3.1 Gen 1 interface, a 5MP 1/2.5" onsemi AR0521 CMOS sensor, and a maximum frame rate of 49 fps.
A CS lens mount provides support for a variety of varifocal and fixed focal length lenses. The camera provides core machine vision capabilities including USB3 Vision v1.0 standard, hardware triggering, and automatic gain control, and it has a rolling shutter. One user configuration set is available for custom camera settings.
- Acquisition modes: Continuous / Single Frame / Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 9 ?s to 0.5 seconds
- Flash memory: 6MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 96MB
- Image processing: gamma, lookup table, saturation, and sharpness
- Partial image modes: pixel binning, ROI
- User sets: one user configuration set for custom camera settings
- White balance: manual, automatic (AWB)
- Absolute sensitivity threshold (y): 4.5
- Dynamic range: 69 dB
- Gain range: 0 to 27 dB
- Quantum efficiency mono: 81 at 525nm
- Saturation capacity (e-): 10080
- Temporal dark noise (read noise): 3.04
Items Included
- Teledyne Flir Dragonfly S USB3 5MP Black & White Camera with Back Connector (Cased, CS-Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
Guides & Manuals
Teledyne Flir DR-U3-50Y2M-C1 Specs
| Image Sensor |
1/2.5"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| Lens Mount |
CS
|
| Supports Color Recording |
No
|
| Video Output |
USB
2592 x 1944 |
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x Micro-USB 3.0 / 3.1/3.2 Gen 1 Output
|
| Power I/O |
1x Micro-USB Input
|
| Other I/O |
1x Micro-USB Input/Output
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
5.0 VDC
|
| Power Consumption |
2.4 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 95% Humidity
|
| Certifications |
CE, FCC, REACH, RoHS
|
| Machine Vision Standard |
USB3 Vision
|
| Dimensions |
1.2 x 1.2 x 0.9" / 29.5 x 29.5 x 23 mm
|
| Weight |
0.6 oz / 17 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 34280.4 |
| 3-5 | ₹ 33930.6 |
| 5-10 | ₹ 33231.0 |
| 10+ | ₹ 32531.4 |
Bulk discount will be automatically applied during checkout based on quantity.
