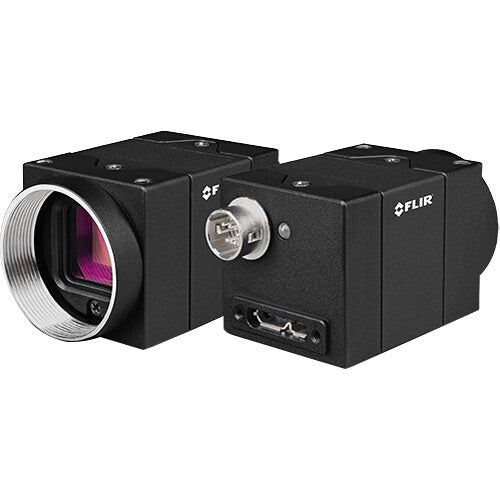

Teledyne Flir Blackfly S USB3 2MP Overview
The Blackfly S USB3 2MP Color Camera from Teledyne Flir captures up to 1616 x 1240 resolution video and offers micro-USB 3.1 Gen 1 output. Maximum standard frame rate is 175 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the USB3 Vision v1.0 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX422 1/1.7" 2MP CMOS color sensor, two custom user settings, color correction, gamma, LUTs, and a global shutter. You can power the camera using a 6-pin Hirose power source or via the USB port.
- Acquisition modes: Continuous / Single Frame / Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 9 ?s to 30 seconds
- Flash memory: 6MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 240MB
- Image processing: color correction matrix, gamma, lookup table, saturation, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
- White balance: manual, automatic (AWB)
- Absolute sensitivity threshold (y): 5.07 (HCG) / 10.16 (LCG)
- Dynamic range: 70.80 (HCG) / 71.87 (LCG) dB
- Gain range: 0 to 47 dB
- Quantum efficiency blue: 51 (HCG) / 52 (LCG) at 460nm
- Quantum efficiency green: 62 (HCG) / 63 (LCG) at 525nm
- Quantum efficiency red: 50 (HCG) / 50 (LCG) at 630nm
- Saturation capacity (e-): 10868 (HCG) / 25023 (LCG)
- Temporal dark noise (read noise): 2.64 (HCG) / 5.88 (LCG)
Items Included
- Teledyne Flir Blackfly S USB3 2MP Color Camera (C Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
No additional resources available
Teledyne Flir Blackfly S USB3 2MP Specs
| Image Sensor |
1/1.7"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| Lens Mount |
C
|
| Video Output |
USB
1616 x 1240 |
| Partial Image Processing |
Pixel Binning/Decimation/Region of Interest (ROI)
|
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x Micro-USB 3.0 / 3.1/3.2 Gen 1 Output
|
| Power I/O |
1x Micro-USB Input
|
| Other I/O |
1x Micro-USB Output
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
8.0 to 24.0 VDC
|
| Power Consumption |
4.2 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
USB3 Vision
|
| Dimensions |
1.5 x 1.1 x 1.1" / 39 x 29 x 29 mm
|
| Weight |
1.9 oz / 53 g
|
