Description
Teledyne Flir Blackfly S GigE 20MP Overview

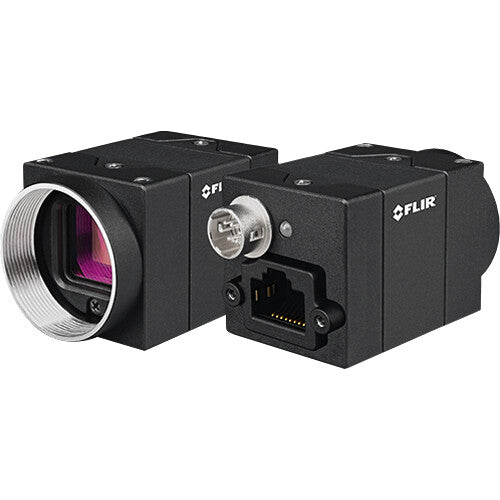

The Blackfly S GigE 20MP Black & White Camera from Teledyne Flir captures up to 4504 x 4504 resolution video and offers Gigabit Ethernet output. Its maximum standard frame rate is 6 fps and 13 fps with turbodrive and lossless compression. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A C mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX541 1.1" 20MP CMOS sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
- Acquisition modes: Continuous, Single Frame, Multi Frame
- Exposure control: Hardware trigger, programmable via camera API, automatic
- Exposure range: 27 ?s to 30 seconds
- Flash memory: 6MB nonvolatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 240MB
- Image processing: Gamma, lookup table, and sharpness
- Partial image modes: Pixel binning, decimation, ROI
- User sets: Two user configuration sets for custom camera settings
- Absolute sensitivity threshold (y): 4.1
- Dynamic range: 70.7 dB
- Gain range: 0 to 47 dB
- Quantum efficiency mono: 68.1 at 525nm
- Saturation capacity (e-): 9657
- Temporal dark noise (read noise): 2.3
Items Included
- Teledyne Flir Blackfly S GigE 20MP Black & White Camera (C Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Teledyne Flir Blackfly S GigE 20MP Specs
| Image Sensor |
1"-Type CMOS
|
| Sensor Resolution |
Effective: 20 Megapixel
|
| Lens Mount |
C
|
| Supports Color Recording |
No
|
| Video Output |
RJ45
5472 x 3648 |
| Partial Image Processing |
Pixel Binning/Decimation/Region of Interest (ROI)
|
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x RJ45 LAN Output
|
| Power I/O |
1x Hirose 6-Pin Input
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
8.0 to 24.0 VDC
|
| Power Consumption |
4.2 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, IEEE1588, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
1.5 x 1.1 x 1.1" / 39 x 29 x 29 mm
|
| Weight |
1.9 oz / 53 g
|
