JAI Go-X 24.5MP Pregius S 4th Gen Camera (GigE Vision, Monochrome)

Built for Non-Stop Operation

Go-X Series cameras are built to withstand the shock, vibration, and thermal demands of typical industrial environments, so they can keep critical inspection systems running 24/7, 365 days a year.

Pre-Screened for Dust & Other Particles

Special dust prevention measures include clean room assembly, internal seals around the sensor compartment, and a pre-screening process to ensure every camera shipped delivers the best possible image quality via a clean, dust-free optical path.

Backside Illumination Pixel Technology

The small but highly sensitive 2.74-micron pixels to pack more resolution into less silicon, so you get more megapixels for your money. The backside illumination (BSI) pixel technology delivers low-noise and high-light sensitivity, matching the image quality of sensors with much larger pixels.

At a Glance

• 24.5MP camera with 2.74-micron pixels and 1.2" optical format
• Backside-illuminated Sony Pregius S CMOS image sensor
• GigE Vision 2.0 interface supporting long cable lengths and network configurations
• "Xpress" lossless compression function included to enable faster frame rates and more compact image streams

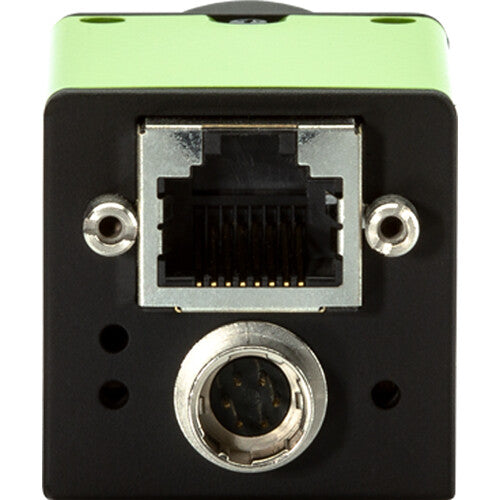

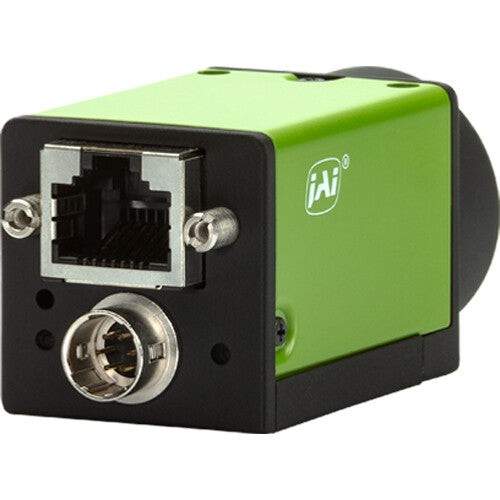

• Can be powered over the interface (PoE) or from an optional external power supply via 6-pin Hirose connector
• Small and lightweight to mount easily on robotic arms, UAVs, and any other machine vision systems where motion or portability are vital
• Mounting holes to fit most existing installations with no re-tooling required
• Industrial grade performance with ratings of 80 g shock, 10 g vibration, and optimal thermal dissipation
• Includes new "Xscale" function supporting virtual, sub-pixel rescaling of output for greater binning flexibility or when matching the resolution and FOV of cameras in existing systems
• Includes color enhancement function and support for color conversion to sRGB, Adobe RGB, CIE XYZ, or custom RGB formats

JAI Pregius S Specs

Type	Area Scan

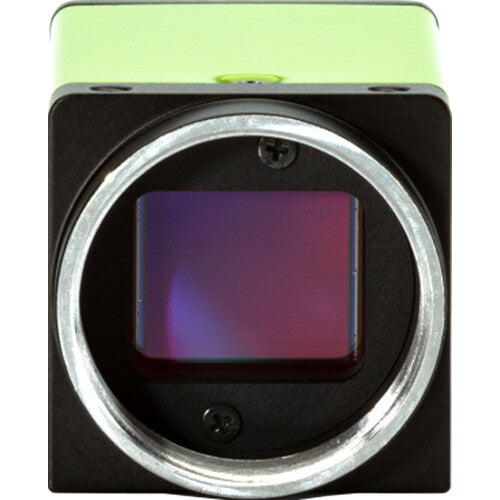

Lens Mount	C-Mount
Interface	GigE Vision 1-Cable (PoE)
Image Sensor	1.2" IMX540 Pregius S 24.5MP Monochrome Sensor
Sensor Resolution	5328 x 4608
Frame Rate	4 fps
Shutter Type	Global
Video Output	8/10/12-Bit

Power Source	PoE (Built-In), Plug-In Power (Not Included)
DC Input Power	10 to 57 VDC
Power Consumption	4.1 W

Mounting	Multiple M3 Threaded Holes
Color	Black / Green
Certifications	CE, EU, FCC, KC, RoHSChina, RoHS, WEEE
Operating Conditions	23 to 113°F / -5 to 45°C at 20 to 80% Humidity
Storage Conditions	-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
Dimensions	2.2 x 1.1 x 1.1" / 55 x 29 x 29 mm
Weight	2.5 oz / 70 g
