Description
JAI Pregius S Overview

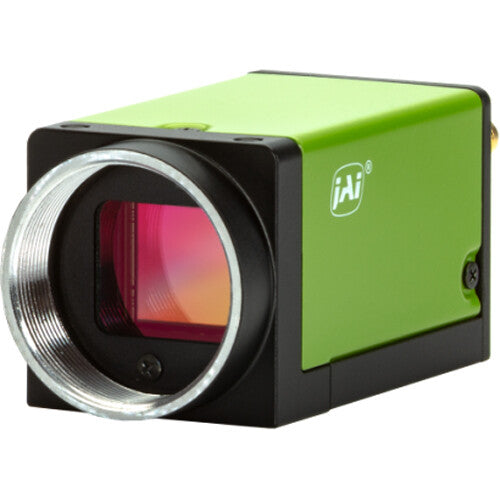

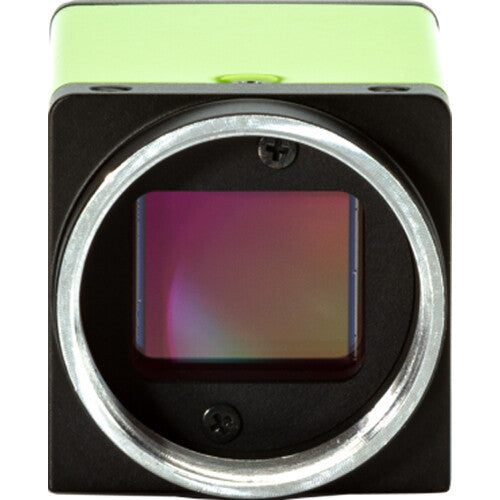

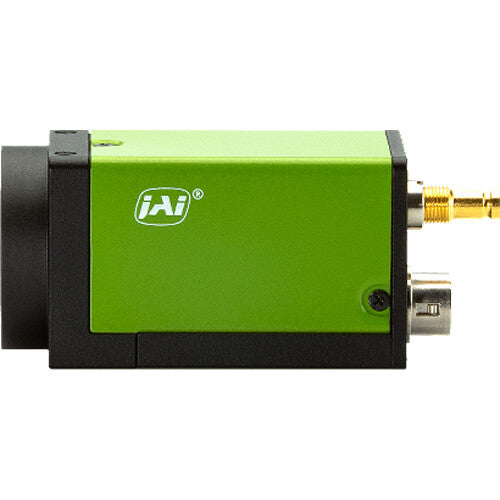

The Go-X 20.3MP Pregius S 4th Gen Camera from JAI is a compact, industrial area scan camera with a state-of-the-art 1.1" Sony Pregius X global shutter sensor with backside illumination (BSI) technology. Equipped with a C-mount lens mount, the camera integrates a CoaXPress 2.0 interface featuring CXP-6 (6.25 Gb/s) output over a single connector. It captures 20.3MP monochrome images with 4512 x 4512 resolution at 29 fps, and it offers 8-, 10-, and 12-bit video output. The shock- and vibration-resistant unit powers over the CoaXPress interface or via the integrated 6-pin Hirose port using an optional power cable, and it comes with a sensor protection cap.
Built for Non-Stop Operation
Go-X Series cameras are built to withstand the shock, vibration, and thermal demands of typical industrial environments so they can keep critical inspection systems running 24/7, 365 days a year.
Pre-Screened for Dust & Other Particles
Special dust prevention measures include clean room assembly, internal seals around the sensor compartment, and a pre-screening process to ensure every camera shipped delivers the best possible image quality via a clean, dust-free optical path.
Backside Illumination Pixel Technology
The small but highly sensitive 2.74-micron pixels to pack more resolution into less silicon, so you get more megapixels for your money. The backside illumination (BSI) pixel technology delivers low-noise and high-light sensitivity, matching the image quality of sensors with much larger pixels.
At a Glance
- 20.3MP camera with 2.74-micron pixels and 1.1" optical format
- Backside-illuminated Sony Pregius S CMOS image sensor with monochrome output
- CoaXPress 2.0 interface featuring CXP-6 (6.25 Gb/s) output over a single connector

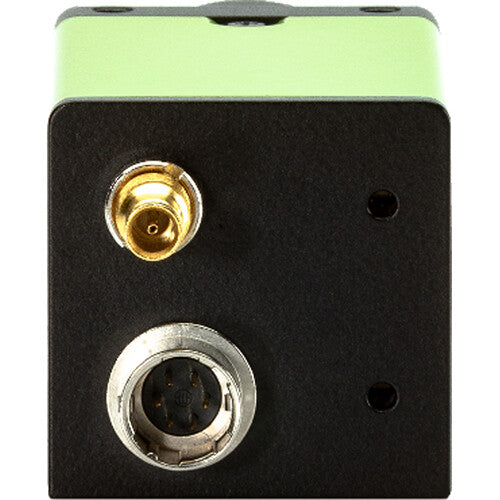

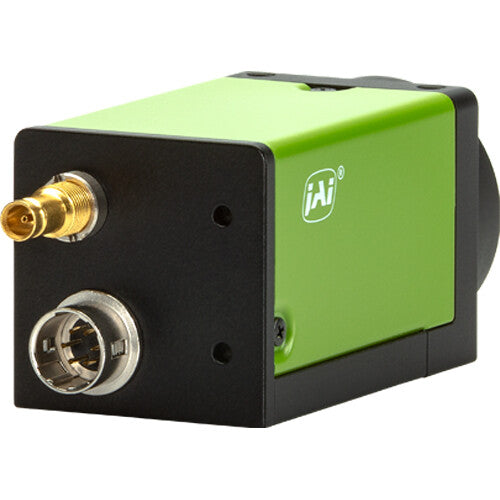

- Can be powered over the interface (PoCXP) or from an optional external power supply via 6-pin Hirose connector
- Small and lightweight to mount easily on robotic arms, UAVs, and any other machine vision systems where motion or portability are vital
- Mounting holes to fit most existing installations with no re-tooling required
- Industrial grade performance with ratings of 80G shock, 10G vibration, and optimal thermal dissipation
- Includes new "Xscale" function supporting virtual, sub-pixel rescaling of output for greater binning flexibility or when matching the resolution and FOV of cameras in existing systems
Items Included
- JAI Go-X 20.3MP Pregius S 4th Gen Camera (CoaXPress, Monochrome)
- Sensor Protection Cap
- Limited 6-Year Manufacturer Warranty
Additional Resources
JAI Pregius S Specs
General
| Type |
Area Scan
|
| Lens Mount |
C-Mount
|
| Interface |
CoaXPress-1-Lane (PoCXP)
|
| Image Sensor |
1.1" IMX541 Pregius S 20.34MP Monochrome Sensor
|
| Sensor Resolution |
4512 x 4512
|
| Frame Rate |
29 fps
|
| Shutter Type |
Global
|
| Video Output |
8/10/12-Bit
|
Power
| Power Source |
Proprietary Interface (Built-In), Plug-In Power (Not Included)
|
| DC Input Power |
10 to 25 VDC
|
| Power Consumption |
4.1 W
|
Physical
| Mounting |
Multiple M3 Threaded Holes
|
| Color |
Black / Green
|
| Certifications |
CE, EU, FCC, KC, RoHSChina, RoHS, WEEE
|
| Operating Conditions |
23 to 113°F / -5 to 45°C at 20 to 80% Humidity
|
| Storage Conditions |
-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
|
| Dimensions |
2.2 x 1.1 x 1.1" / 55 x 29 x 29 mm
|
| Weight |
2.1 oz / 60 g
|
