Description
JAI Pregius Overview

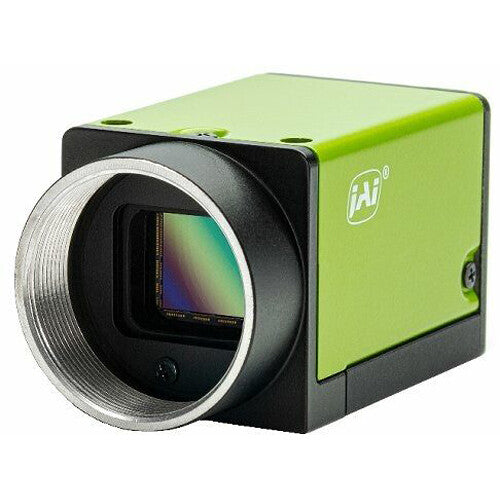

The Go-X 2.3MP Pregius 2nd Gen Compact Camera from JAI is a compact, industrial area scan camera with a state-of-the-art 1/2.3" Sony Pregius X global shutter sensor. Equipped with a C-mount lens mount, the camera integrates a GigE Vision interface and captures 2.3MP monochrome images with 1920 x 1200 resolution at 50 fps. It offers 8-, 10-, and 12-bit video output. The shock- and vibration-resistant unit powers over GigE Vision interface or via the integrated 6-pin Hirose port using an optional power cable.
Built for Non-Stop Operation
Go-X Series cameras are built to withstand the shock, vibration, and thermal demands of typical industrial environments so they can keep critical inspection systems running 24/7, 365 days a year.
Pre-Screened for Dust & Other Particles
Special dust-prevention measures include clean room assembly, internal seals around the sensor compartment, and a pre-screening process to ensure every camera shipped delivers the best possible image quality via a clean, dust-free optical path.
Sophisticated Vision System
The unit offers a robust set of capabilities like region-of-interest (ROI), image flipping and mirroring, 8/10/12-bit output, blemish compensation, and shading correction, along with advanced features like two different sequencer modes and an intelligent, user-customizable auto-exposure function (ALC).
At a Glance
- 2.3MP camera with 3.45-micron pixels and 1/2.3" optical format
- Low-noise Sony Pregius IMX392 CMOS image sensor
- GigE Vision interface supports long cable lengths and network configurations
- Can be powered over the GigE Vision interface (PoE) or from an external power supply via the 6-pin Hirose connector
- Small and lightweight to mount easily on robotic arms, UAVs, and any other machine vision systems where motion or portability are vital
- Mounting holes to fit most existing installations with no re-tooling required
- Industrial-grade performance with ratings of 80G shock, 10G vibration, and optimal thermal dissipation
- Free SDK supporting Windows, Linux, and Linux for ARM embedded system development
Items Included
- JAI Go-X 2.3MP Pregius 2nd Gen Compact Camera (GigE Vision, Monochrome)
- Limited 6-Year Manufacturer Warranty
Additional Resources
JAI Pregius Specs
General
| Type |
Area Scan
|
| Lens Mount |
C-Mount
|
| Interface |
GigE Vision
|
| Sensor |
1/2.3" Pregius IMX392 2.3MP Monochrome Sensor
|
| Sensor Resolution |
1920 x 1200
|
| Frame Rate |
50 fps
|
| Shutter Type |
Global
|
| Video Output |
8/10/12-Bit
|
Power
| Power Source |
PoE (Built-In), Plug-In Power (Not Included)
|
| DC Input Power |
10 to 57 VDC
|
| Power Consumption |
3.7 W
|
Physical
| Color |
Black / Green
|
| Certifications |
CE, EU, FCC, KC, RoHSChina, RoHS, WEEE
|
| Operating Conditions |
23 to 113°F / -5 to 45°C at 20 to 80% Humidity
|
| Storage Conditions |
-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
|
| Dimensions |
2 x 1.1 x 1.1" / 51.5 x 29 x 29 mm
|
| Weight |
2.3 oz / 65 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
