Description

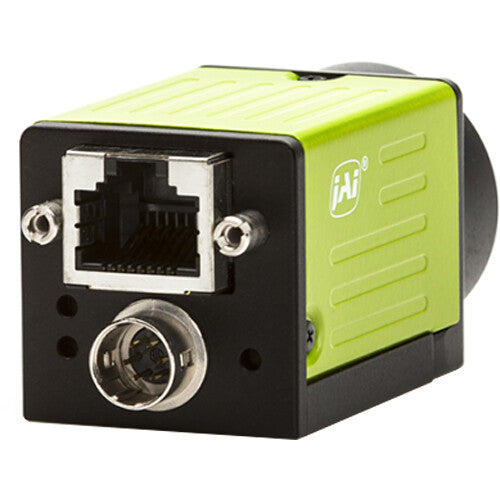

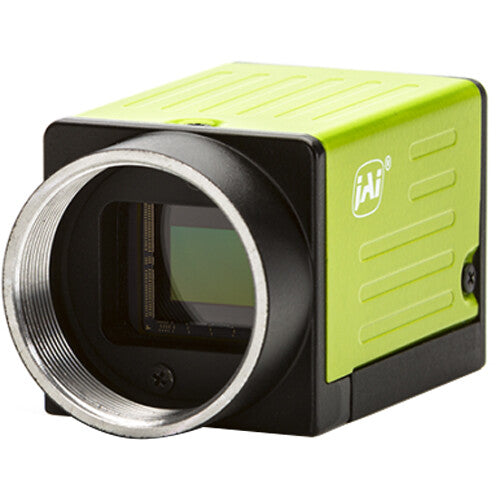

JAI GO-5101M-PGE Overview
The Go Series GigE 5.1MP Compact Camera from JAI captures up to 2464 x 2056 resolution video and offers RJ45 Gigabit Ethernet output. The maximum standard frame rate is 22.7 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision standard. This model features 8/10/12-bit output with black-and-white/monochrome capture.
A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses. Features include a Sony IMX274 2/3" 5.1MP CMOS sensor with a global shutter, exposure control, automatic level control (ALC), and more. You can power the camera using a 6-pin Hirose power source or via PoE.
- 5.1MP camera with 3.45-micron pixels and 2/3" CMOS sensor
- Global shutter
- Power over GigE Vision interface supporting long cable lengths and network configurations
- Temporal dark noise rating <3e-
- 14.7 µs minimum exposure control time up to 8 seconds in 1 µs steps
- 2x binning for increased sensitivity
- Single and multi-ROI modes for flexible windowing and use of smaller optics
- Industrial-grade performance with 80G shock, 10G vibration, and over 180,000-hour MTBF ratings
Items Included
- JAI Go Series GigE 5.1MP Compact Camera (Mono, C Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
JAI GO-5101M-PGE Specs
| Compatibility |
Not Specified by Manufacturer
|
| Sensor |
Sony IMX274 2/3" CMOS, 5.1 MP
|
| Shutter |
Global
|
| Resolution |
2464 x 2056
|
| Lens Mount |
C
|
| Frame Rate |
Standard: Up to 22.7 fps
|
| Bit Depth |
Mono, 10-Bit, 12-Bit
|
| Electronic Shutter |
Timed Exposure: 14.7 µs to 8 Sec in 1 µs Steps
Trigger Width: 14 µs to Infinite in 1 µs Steps |
| Level Control |
Shutter Range from 100 µs to 44.053 ms
Gain Range for 0 dB to +24 dB Tracking Speeds and Min/Max Values Adjustable |
| Other I/O |
1 x RJ45 Gigabit Ethernet
1 x 6-Pin Hirose (Power) |
| Power Source |
PoE (Not Included), Plug-In Power (Not Included)
|
| DC Input Power |
12 to 24 VDC
|
| Power Consumption |
4.6 W (Maximum)
3.2 W |
| Mounting |
4x M2 Threads
3x M3 Threads |
| Color |
Black
|
| Impact Resistance |
Shock/Vibration-Resistant (Unrated)
|
| Certifications |
CE, FCC, RoHS, WEEE
|
| Operating Conditions |
23 to 113°F / -5 to 45°C at 20 to 80% Humidity
|
| Storage Conditions |
-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
|
| Dimensions |
1.6 x 1.1 x 1.1" / 41.5 x 29 x 29 mm
|
| Weight |
2.3 oz / 65 g
|
