Description

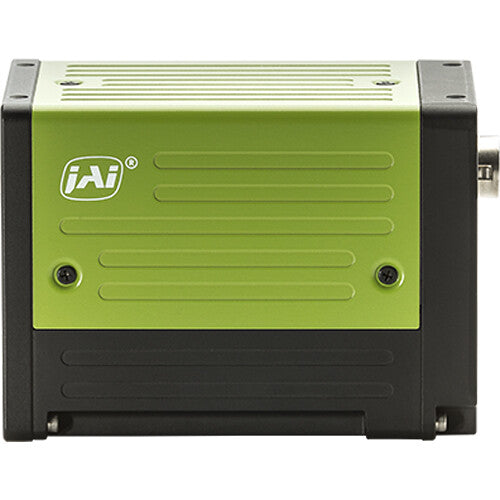

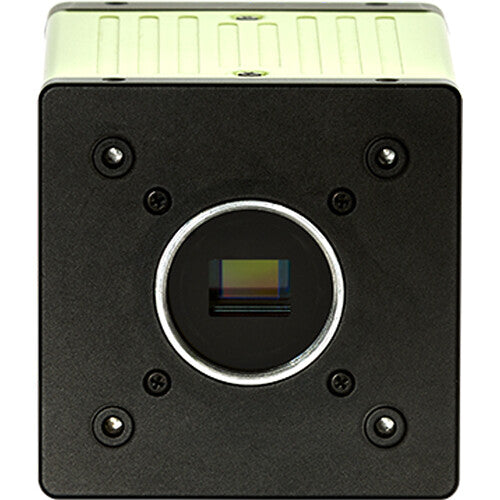

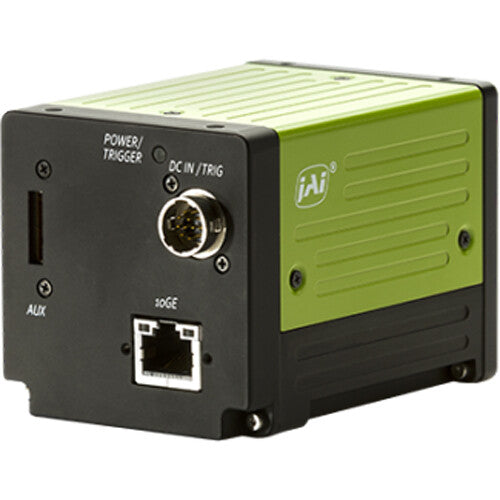

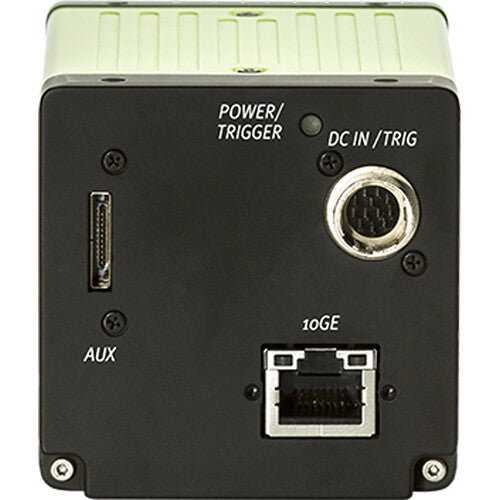

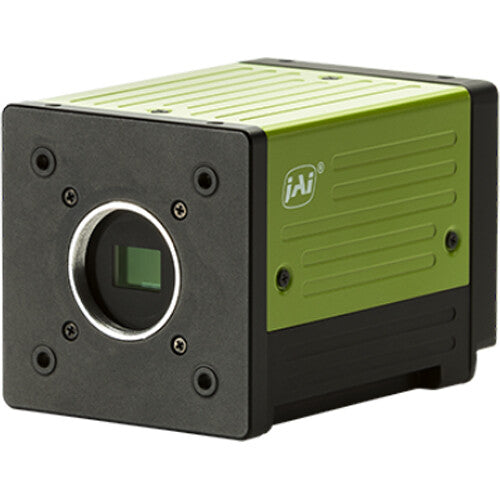

JAI FS-3200T-10GE-NNC Overview
The 3.2MP Fusion Series Multispectral Camera from JAI is a powerful 3-CMOS sensor, prism-based multispectral camera. It is designed to deliver simultaneous images of different spectral bands with a visible color channel from 400-670 nm, a near infrared (NIR) channel from 700-800 nm, and a second NIR channel from 820-1000 nm. Boasting an effective pixel resolution of 2048 x 1536 and a maximum frame rate of 107 fps, the camera has a C-mount lens mount and is ideal for the inspection of surface properties and sub-surface defects in the target subjects when combined across both NIR bands or within a single NIR band. It is equipped with a backwards-compatible 10 GigE Vision interface with dual-stream output for optimal networking flexibility, speed, and overall performance.
- Backwards-compatible 10 GigE Vision interface auto-negotiates to match the speed of connected equipment including NBaseT (5 GigE and 2.5 GigE) and standard 1 Gb/s 1000BaseT GigE Vision
- Sequence trigger mode for on-the-fly change of gain, exposure, and ROI
- Supports IEEE 1588 Precision Time Protocol for synchronization in multi-camera applications
- Triple-stream output enables color and NIR images to be simultaneously output over a single cable
- Single- and multi-ROI modes
- Significantly higher NIR sensitivity than previous CCD models
Items Included
- JAI 3.2MP Fusion Series Multispectral Camera (10 GigE, 107 fps, Color, C-Mount)
- Sensor Protection Cap
- Limited 6-Year Manufacturer Warranty
Additional Resources
No additional resources available
JAI FS-3200T-10GE-NNC Specs
| Type |
Area Scan
|
| Lens Mount |
C-Mount
|
| Interface |
10 Gb/s GigE Vision
|
| Sensor |
1/1.8" IMX252 3.2MP Color Sensor
|
| Sensor Resolution |
2048 x 1536
|
| Frame Rate |
109 fps
|
| Shutter Type |
Global
|
| Video Output |
8/10/12-Bit
|
| Power Source |
Plug-In Power (Not Included)
|
| DC Input Power |
10 to 25 VDC
|
| Power Consumption |
11.6 W
|
| Color |
Black / Green
|
| Certifications |
CE, FCC, RoHS, WEEE
|
| Operating Conditions |
23 to 113°F / -5 to 45°C at 20 to 80% Humidity
|
| Storage Conditions |
-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
|
| Dimensions |
3.4 x 2.4 x 2.4" / 86.5 x 62 x 62 mm
|
| Weight |
9.5 oz / 270 g
|
