Description

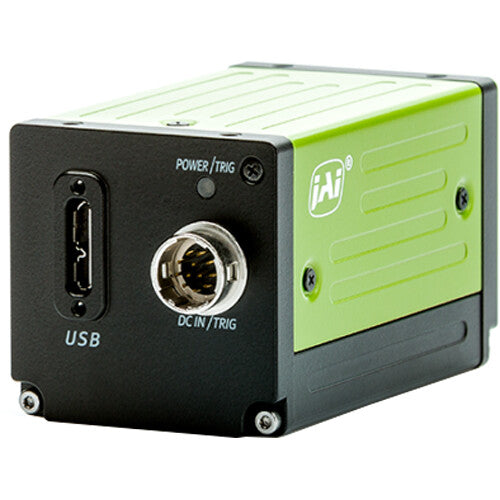

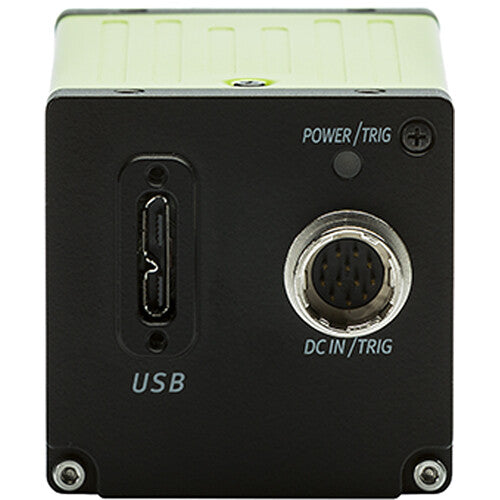

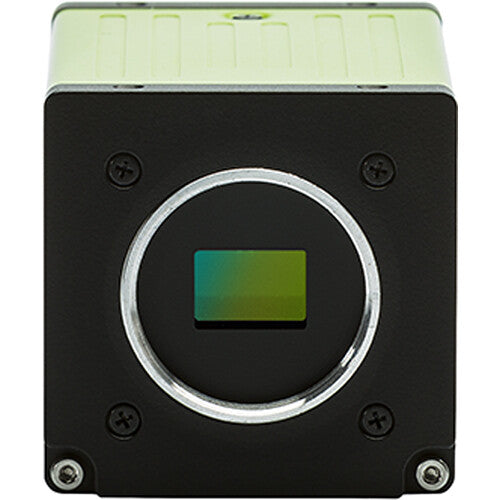

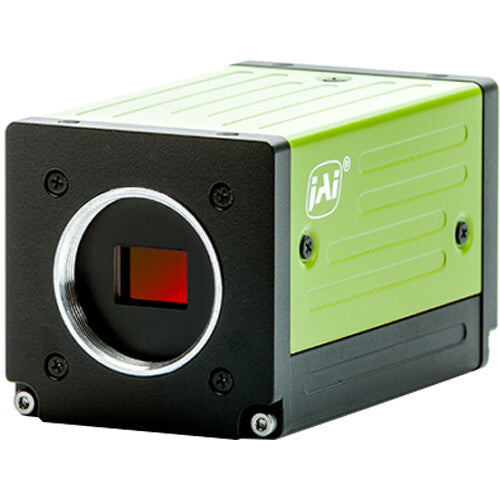

JAI AP-3200T-USB-1 Overview
The 3.2MP Apex Series Prism Camera from JAI is a powerful 3-CMOS sensor, prism-based RGB camera which boasts an effective pixel resolution of 2064 x 1544 and a maximum frame rate of 38.3 fps. This standard model has an integrated IR cut filter. Designed for life science and industrial digital microscopy applications, the Apex Prism camera has a built-in USB3 Vision interface for signal connectivity with flexible color space conversion functionality.
Accurate Color Image Data
Using a special prism-based imaging technique, the incoming light is separated into red, green, and blue wavelengths, captured by three precisely aligned CMOS sensors. The result is better color accuracy and spatial precision than traditional color cameras using the Bayer mosaic technique.
Flexible Color Space Conversion
Enhanced flexibility in onboard color space conversion, including RGB to HSI color space conversion and RGB to CIE-XYZ color space conversion (sRGB and Adobe RGB color spaces are also supported).
At a Glance
- Analog gain and exposure setting for each individual R-G-B channel
- Flexible color space conversion
- Single and multi-Region-of-Interest (ROI)
- Automatic level control
- Shading correction on ROI
- Color temperature presets
- Built-in color enhancer and edge enhancer functions
- Pixel binning (2x1, 1x2, and 2x2)
- Chunk data for each image
- Robust and compact design (shock 50G/vibration 3G)
- Compatible with Image-Pro and Micro-Manager software packages for integration with digital microscopy applications
Items Included
- JAI 3.2MP Apex Series Prism Camera (USB3 Vision, Standard Model)
- Sensor Protection Cap
- Limited 6-Year Manufacturer Warranty
Additional Resources
JAI AP-3200T-USB-1 Specs
General
| Type |
Area Scan
|
| Interface |
USB3 Vision
|
| Image Sensor |
1/1.8" f/4 Sony Pregius IMX265 3.2MP Sensor
|
| Sensor Resolution |
2064 x 1544
|
| Frame Rate |
38.3 fps
|
| Shutter Type |
Global
|
| Video Output |
8/10/12-Bit
|
Power
| Power Source |
USB (Built-In), Plug-In Power (Not Included)
|
| DC Input Power |
12 to 24 VDC
|
| Power Consumption |
5.3 W
|
Physical
| Color |
Black / Green
|
| Certifications |
CE, EU, FCC, KC, RoHS, WEEE
|
| Operating Conditions |
23 to 113°F / -5 to 45°C at 20 to 80% Humidity
|
| Storage Conditions |
-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
|
| Dimensions |
2.9 x 1.7 x 1.7" / 74 x 44 x 44 mm
|
| Weight |
6 oz / 170 g
|
