Description

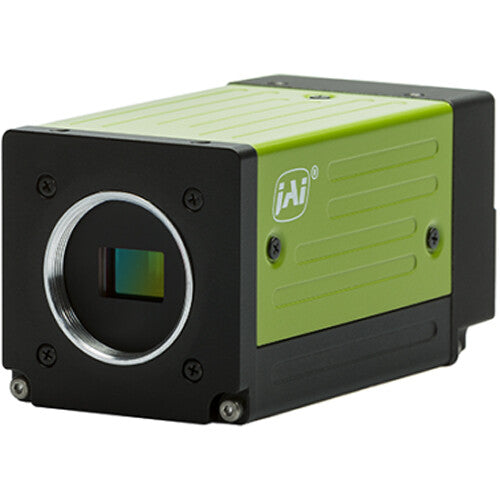

JAI AP-3200T-PGE Overview
The 3.2MP Apex Prism Camera from JAI is a powerful 3-CMOS sensor, prism-based RGB camera, which boasts an effective pixel resolution of 2064 x 1544 and a maximum frame rate of 12 fps. Designed for life science and industrial digital microscopy applications, the Apex Prism camera has a built-in GigE Vision interface for signal connectivity with flexible color space conversion functionality.
Accurate Color Image Data
Using a special prism-based imaging technique, the incoming light is separated into red, green, and blue wavelengths, captured by three precisely aligned CMOS sensors. The result is better color accuracy and spatial precision than traditional color cameras using the Bayer mosaic technique.
High Resolution & High Frame Rate
Built around three Sony PregiusTM IMX265 sensors. Combined with GigE Vision interface, this machine vision camera can output as much as 3 x 3.2MP at 2064 x 1544 in full resolution.
Flexible Color Space Conversion
The camera provides great flexibility in onboard color space conversion, including RGB to HSI color space conversion and RGB to CIE-XYZ color space conversion (sRGB and Adobe RGB color spaces are also supported).
At a Glance
- Three IMX265 Sony Pregius sensors
- True raw image data (red, green, and blue)
- Analog gain and exposure setting for each individual RGB channel
- Single and multi-Region-of-Interest (ROI)
- Automatic level control
- Shading correction on ROI
- Color temperature presets
- Color enhancer tool
- Pixel binning (2x1, 1x2, and 2x2)
- Chunk data for each image
- Robust and compact design (Shock 50G/Vibration 3G)
Items Included
- JAI 3.2MP Apex Series Prism Camera (GigE Vision)
- Sensor Protection Cap
- Limited 6-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
JAI AP-3200T-PGE Specs
Imaging
| Image Sensor |
1/1.8"-Type 3-Chip CMOS
|
| Sensor Resolution |
Effective: 3.2 Megapixel
|
| Lens Mount |
C
|
Recording
| Video Output |
10/12/8-Bit via RJ45
4096 x 3000 |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
Interface
| Power I/O |
1x LEMO 6-Pin
|
| Adapter / Cable |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
Power
| Voltage |
12.0 to 57.0 VDC
|
| Power Consumption |
7.5 W
|
Environmental
| Operating Conditions |
23 to 113?F / -5 to 45?C at 20 to 80% Humidity
|
General
| Certifications |
CE, FCC, KC, RoHS, WEEE
|
| Machine Vision Standard |
GigE Vision
|
| Dimensions |
3.3 x 1.7 x 1.7" / 84 x 44 x 44 mm
|
| Weight |
7.1 oz / 200 g
|
