Description

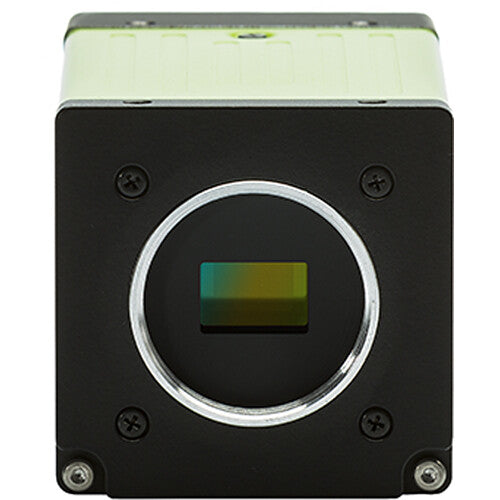

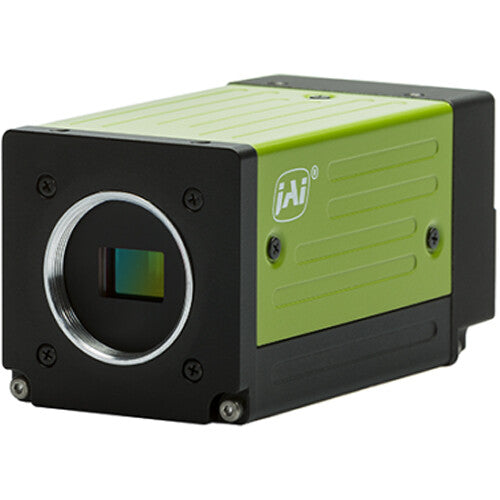

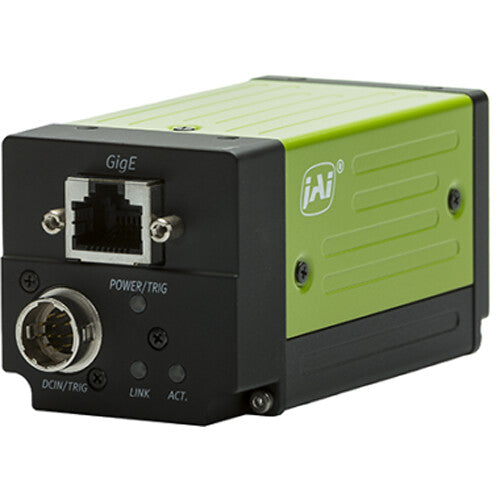

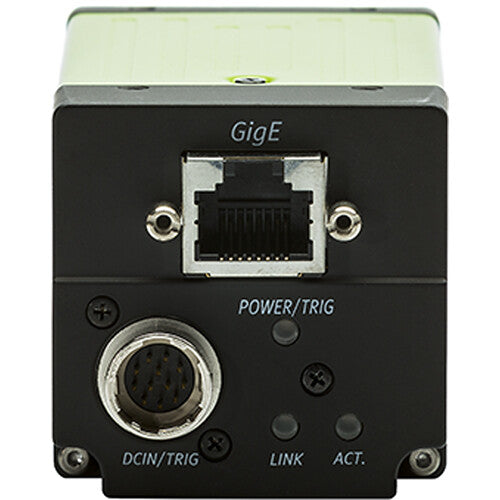

JAI AP-1600T-PGE-1 Overview
The 1.6MP Apex Prism Camera from JAI is a powerful 3-CMOS sensor, prism-based RGB camera, which boasts an effective pixel resolution of 1456 x 1088 and a maximum frame rate of 24 fps. Designed for life science and industrial digital microscopy applications, the Apex Prism camera has a built-in GigE Vision interface for signal connectivity with flexible color space conversion functionality.
Accurate Color Image Data
Using a special prism-based imaging technique, the incoming light is separated into red, green, and blue wavelengths, captured by three precisely aligned CMOS sensors. The result is better color accuracy and spatial precision than traditional color cameras using the Bayer mosaic technique.
High Resolution & High Frame Rate
Built around three Sony PregiusTM IMX273 sensors. Combined with GigE Vision interface, this machine vision camera can output as much as 3 x 1.6MP at 1456 x 1088 in full resolution.
Flexible Color Space Conversion
The camera provides great flexibility in onboard color space conversion, including RGB to HSI color space conversion and RGB to CIE-XYZ color space conversion (sRGB and Adobe RGB color spaces are also supported).
At a Glance
- Three IMX273 Sony Pregius sensors
- True raw image data (red, green, and blue)
- Analog gain and exposure setting for each individual RGB channel
- Single and multi-Region-of-Interest (ROI)
- Automatic level control
- Shading correction on ROI
- Color temperature presets
- Color enhancer tool
- Pixel binning (2x1, 1x2, and 2x2)
- Chunk data for each image
- Robust and compact design (Shock 50G/Vibration 3G)
Items Included
- JAI 1.6MP Apex Series Prism Camera (GigE Vision)
- Sensor Protection Cap
- Limited 6-Year Manufacturer Warranty
Additional Resources
JAI AP-1600T-PGE-1 Specs
General
| Type |
Area Scan
|
| Lens Mount |
C-Mount
|
| Sensor |
1/2.9" Pregius IMX273 1.6MP Sensor
|
| Sensor Resolution |
1456 x 1088
|
| Frame Rate |
24 fps
|
| Shutter Type |
Global
|
| Video Output |
8/10/12-Bit
|
Power
| Power Source |
PoE (Built-In), Plug-In Power (Not Included)
|
| DC Input Power |
12 to 57 VDC
|
| Power Consumption |
7.5 W
|
Physical
| Color |
Black / Green
|
| Certifications |
CE, FCC, KC, RoHS, WEEE
|
| Operating Conditions |
23 to 113°F / -5 to 45°C at 20 to 80% Humidity
|
| Storage Conditions |
-13 to 140°F / -25 to 60°C at 20 to 80% Humidity
|
| Dimensions |
3.3 x 1.7 x 1.7" / 84 x 44 x 44 mm
|
| Weight |
7.1 oz / 200 g
|
