Description
Ikegami ECO-HD13 Overview

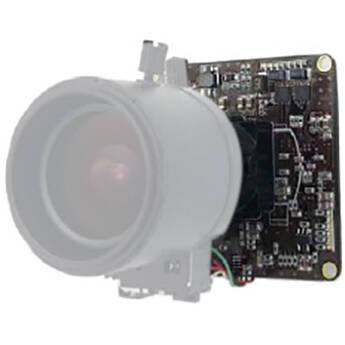

Ideal for professional CCTV applications, this ECO-HD13 1.3MP Analog Color WDR Board Camera from Ikegami features a 1/3" CMOS 1.3MP sensor to capture high-resolution 1000 TV lines. The camera outputs composite NTSC video with a 30 fps wide dynamic range. It's designed to perform in all lighting conditions thanks to its 0.14 lux maximum illumination.
Included with the board camera is a 2.8 to 12mm varifocal lens with a f1.2 aperture. The camera can be controlled remotely via RS-485/UTC protocols. Easy icon style OSD ensures intuitive control over camera parameters.
In the Box
- Ikegami ECO-HD13 1.3MP Analog Color WDR Board Camera
- 2.8-12mm 2MP Varifocal Lens
- Limited 2-Year Manufacturer Warranty
Ikegami ECO-HD13 Specs
Inputs / Outputs
| Video I/O |
1 x Proprietary (Composite) Output
|
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 VDC
|
| Power Consumption |
1.68 W
|
| Operating Current |
400 mA
|
Environmental
| Operating Humidity |
90% (Non-Condensing)
|
Physical
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
1.7 x 1.7" / 42 x 42 mm
|
| Weight |
Not Specified by Manufacturer
|
