Description
AIDA Imaging HD-X3L Overview
- 1Description
- 2Functions
- 3Remote Control
- 4Weather Resistant

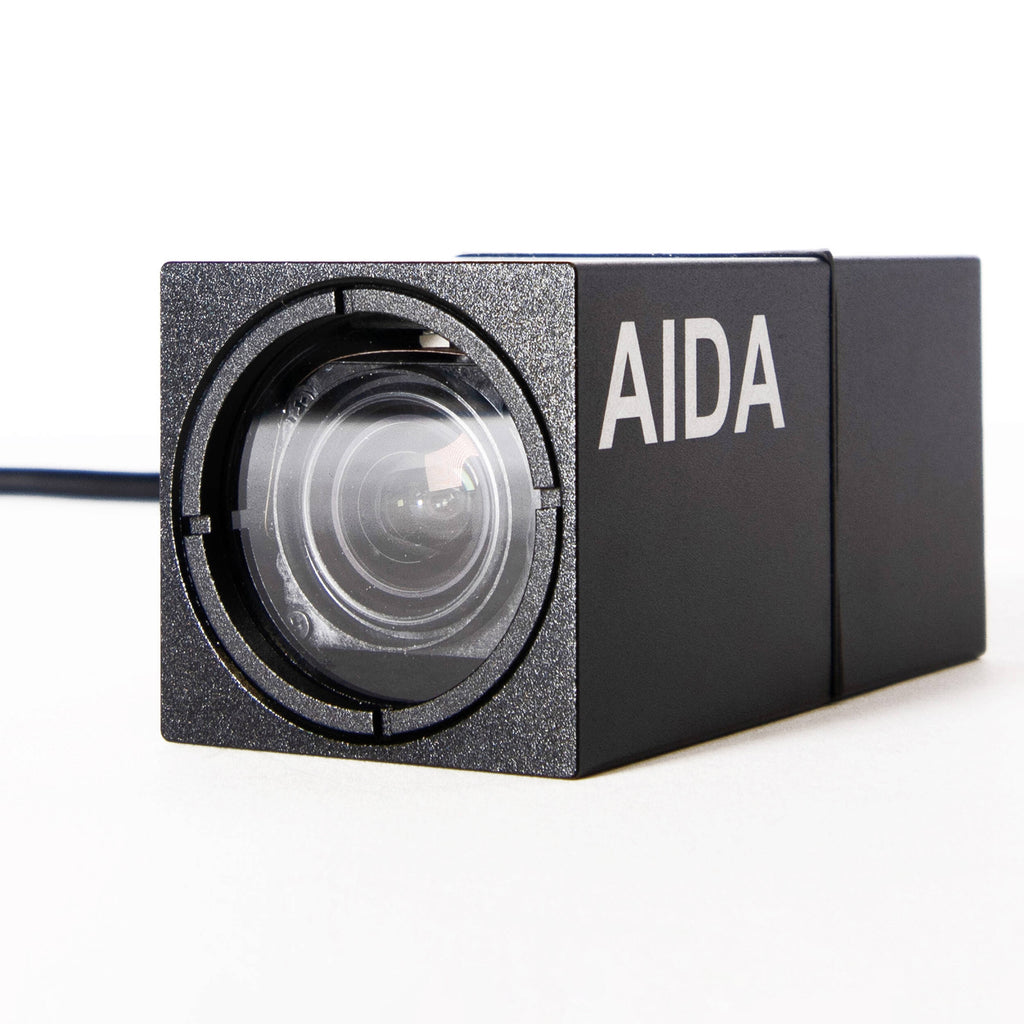

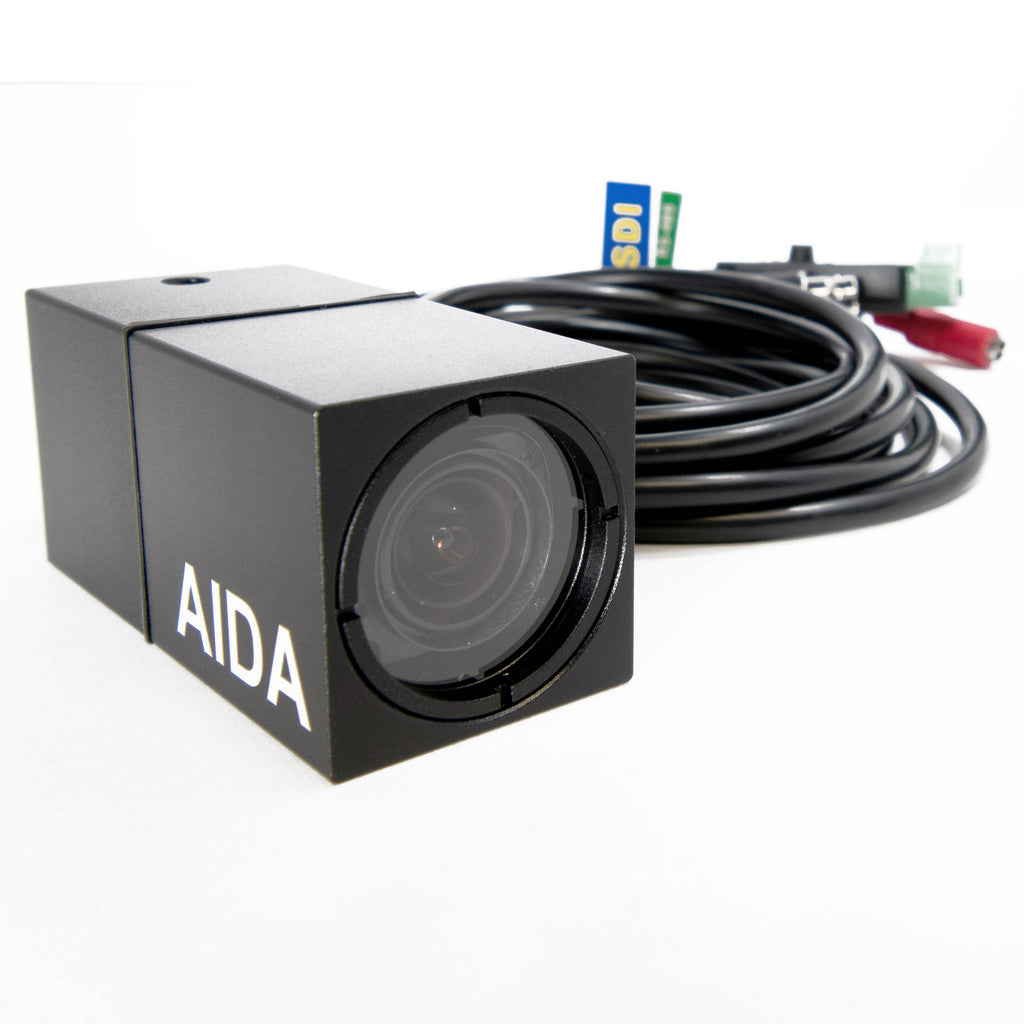

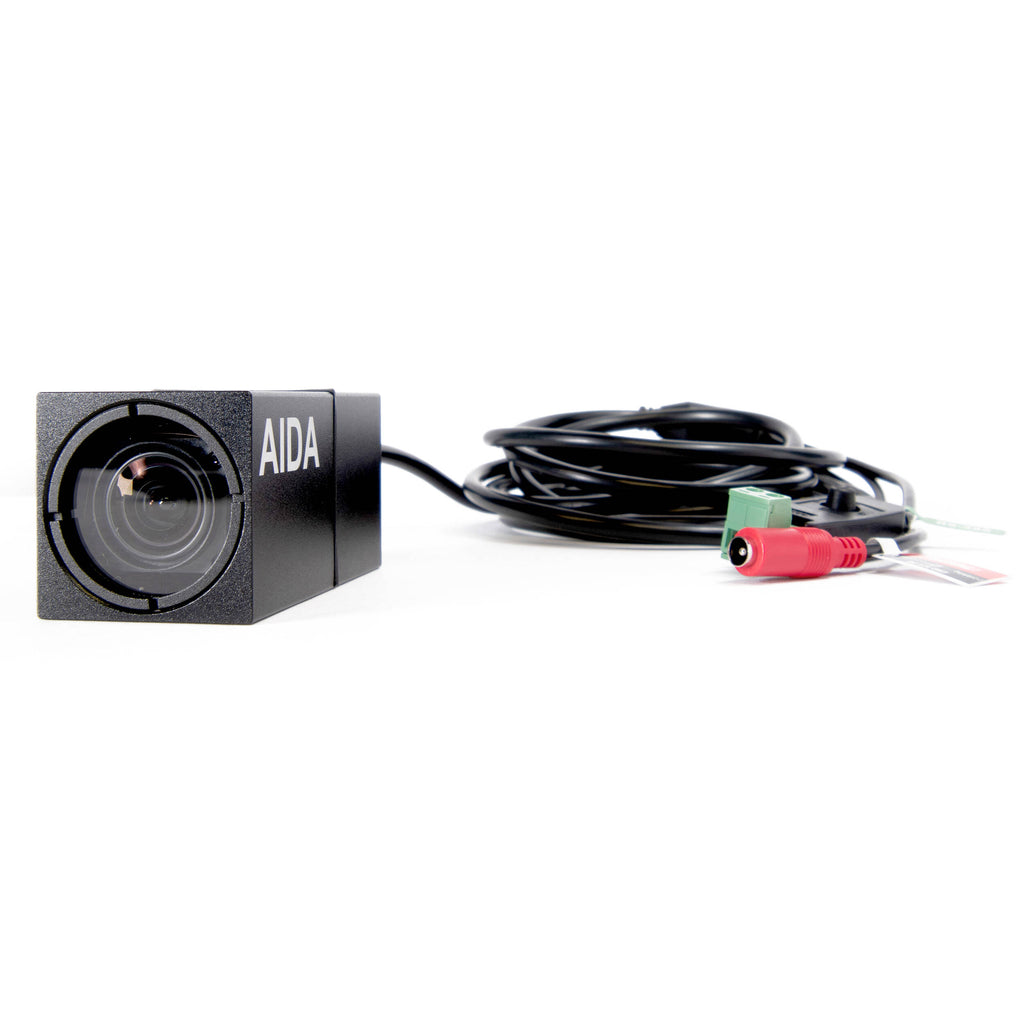

The ultracompact Weatherproof 3G-SDI 1080p POV Camera with 3.5x Optical Zoom from AIDA Imaging is suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2" wide by 2" tall and 3.25" deep, the camera can fit in a variety of spaces where a small footprint and wide-angle lens are advantageous, such as a dashcam or discretely in the corner of a surgical room. The camera captures up to 1080p60 resolution video, and it features a wide-angle, built-in 3x zoom lens.

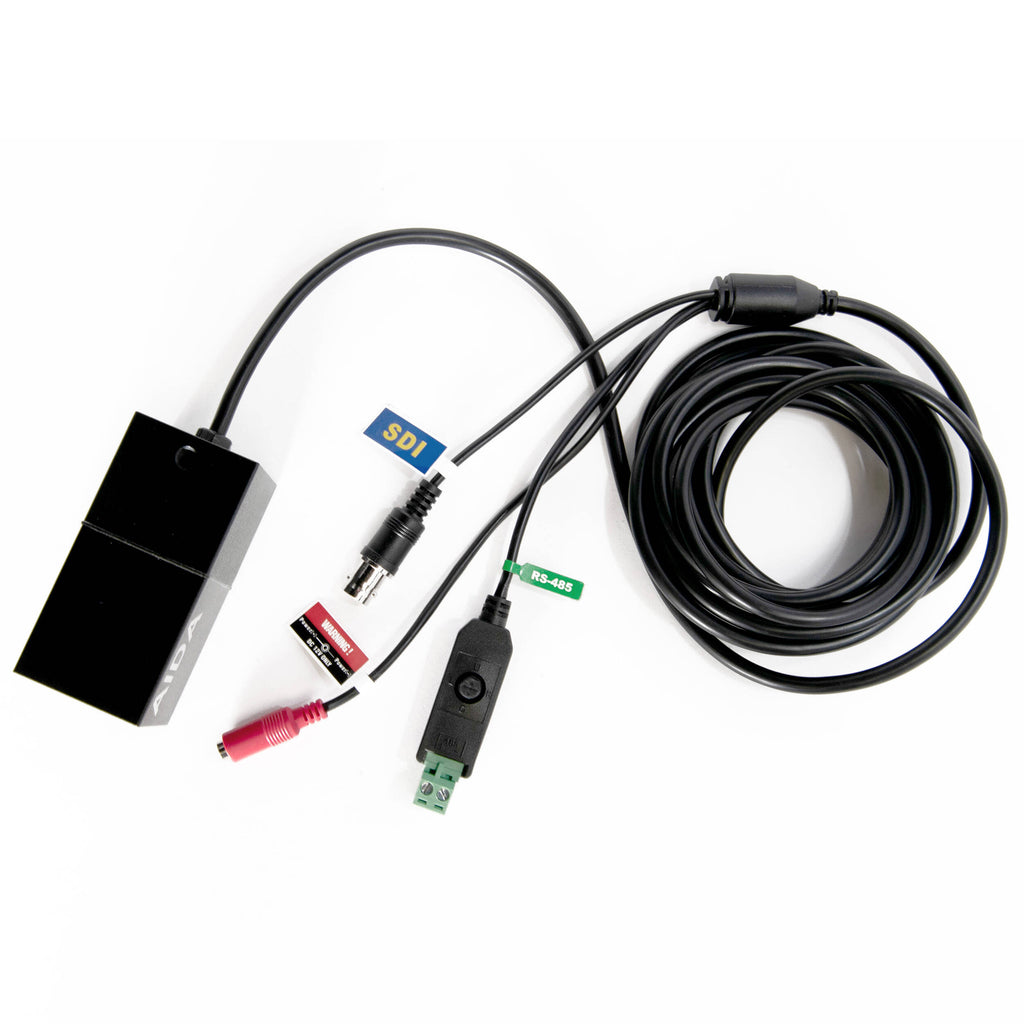

The camera has a 3G-SDI output that allows you to connect it to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included 10' long breakout cable provides inputs for power, RS-485, and VISCA serial control. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools, such as 2D/3D noise reduction, digital slow shutter, black level compensation, flicker detection as well as selecting the exposure mode. The camera body includes both a power and SDI indicators allowing you to confirm its operation at a glance. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the top, allow you options when mounting the camera.
Functions
- AWB/AE/AF
- Exposure
- Full Auto
- Bright
- Shutter Priority
- Iris Priority
- Manual
- Image
- WDR
- DIS (Digital Image Stabilization)
- 2D/3D Noise Reduction
- Digital Slow Shutter
- Black Level Compensation
- Flicker Detection
Remote Control
Weather Resistant
In the Box

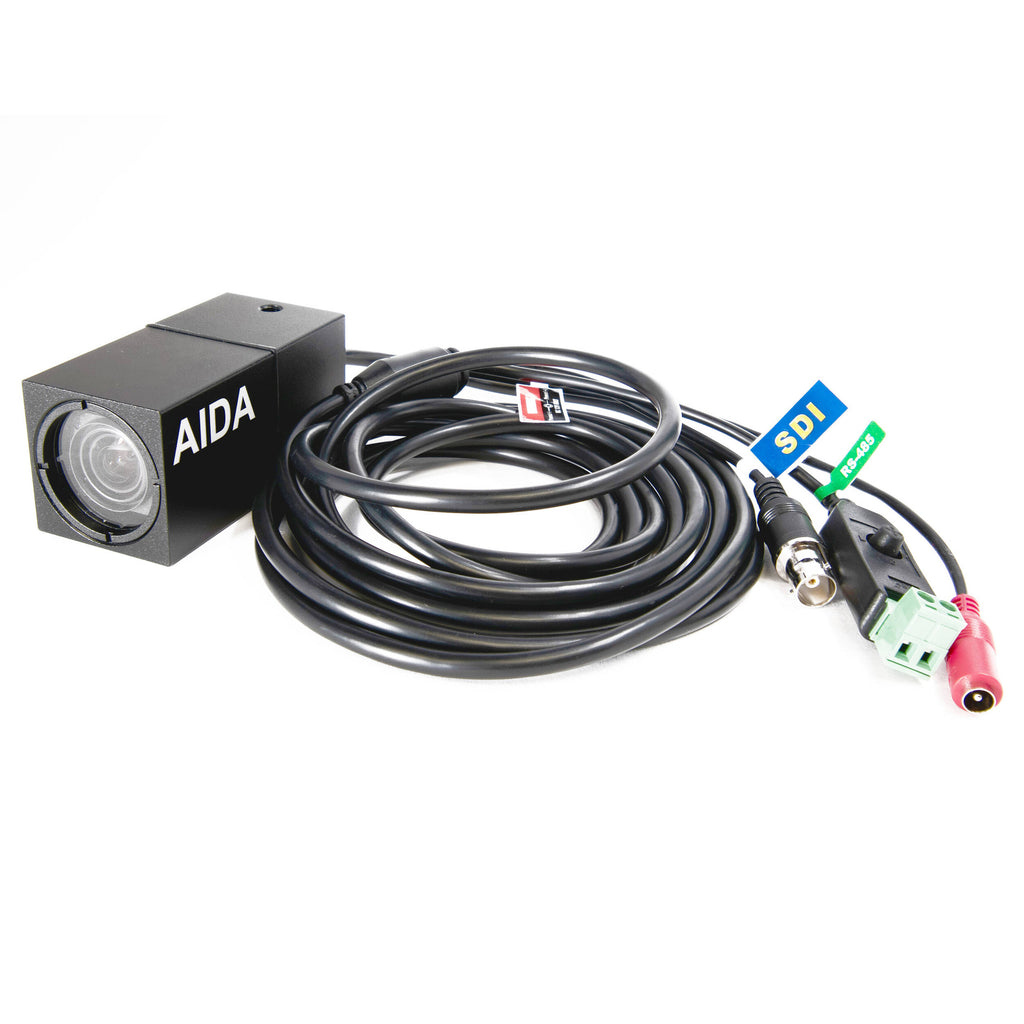

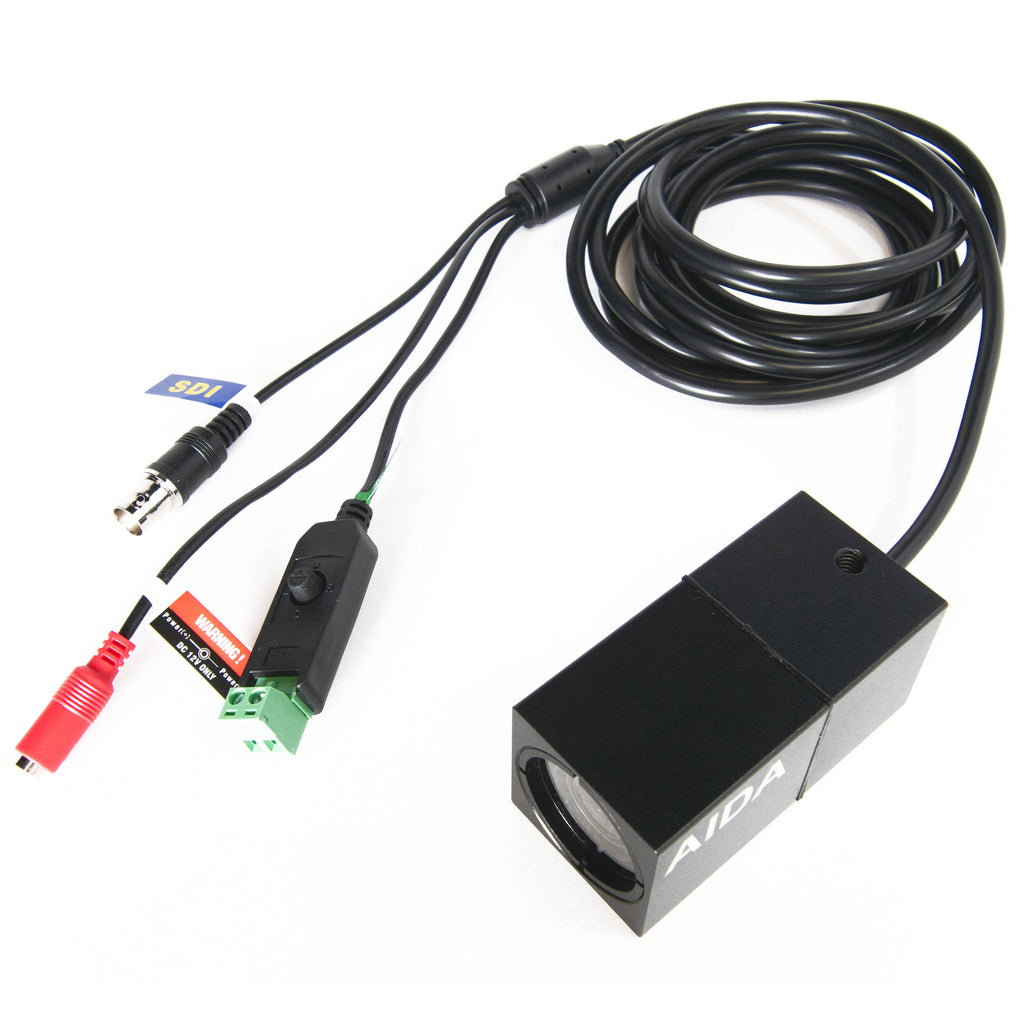

- AIDA Imaging Weatherproof 3G-SDI 1080p POV Camera with 3x Optical Zoom
- OSD Control Breakout Cable
- Power Adapter with 3 Universal Plug Adapters
- Limited 2-Year Warranty
- Description
- Functions
- Remote Control
- Weather Resistant
AIDA Imaging HD-X3L Specs
| Image Sensor | 1/3" Progressive CMOS |
| Effective Pixels | 1920 x 1080 |
| Pixel Size | 2.75 µm x 2.75 µm |
| Resolution | 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Color Space | 4:2:2 (YCbCr) 10-Bit |
| Standards | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 |
| Connections | Video Output: 1 x BNC 3G-SDI I/O: 1 x 2-Pin RS-485 Power: 1 x Barrel Female |
| Focal Length | 3.85 to 13.4mm |
| Angle of View | 78 to 25° |
| Optical Zoom | 3x |
| Mount Type | 2 x 1/4"-20 Threaded Hole |
| Power | 12 VDC (9 to 15 VDC) |
| IP Rating | IP67 |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 3.3 x 1.9 x 1.9" / 8.31 x 4.8 x 4.8 cm |
| Weight | 4.8 oz / 140 g |
| Package Weight | 1.92 lb |
| Box Dimensions (LxWxH) | 9.5 x 5.2 x 4.2" |
AIDA Imaging HD-X3L Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 91453.6 |
| 3-5 | ₹ 90520.4 |
| 5-10 | ₹ 88654.0 |
| 10+ | ₹ 86787.6 |
Bulk discount will be automatically applied during checkout based on quantity.
