Description

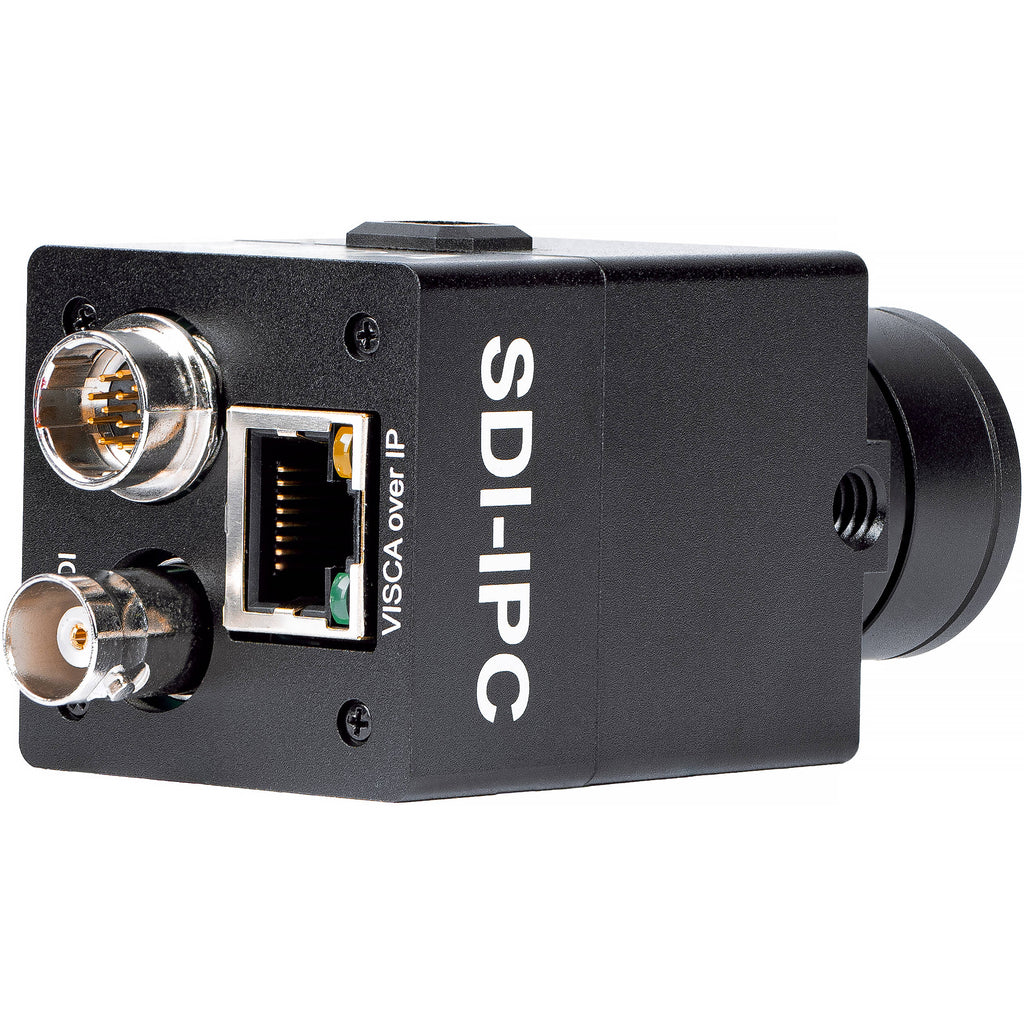

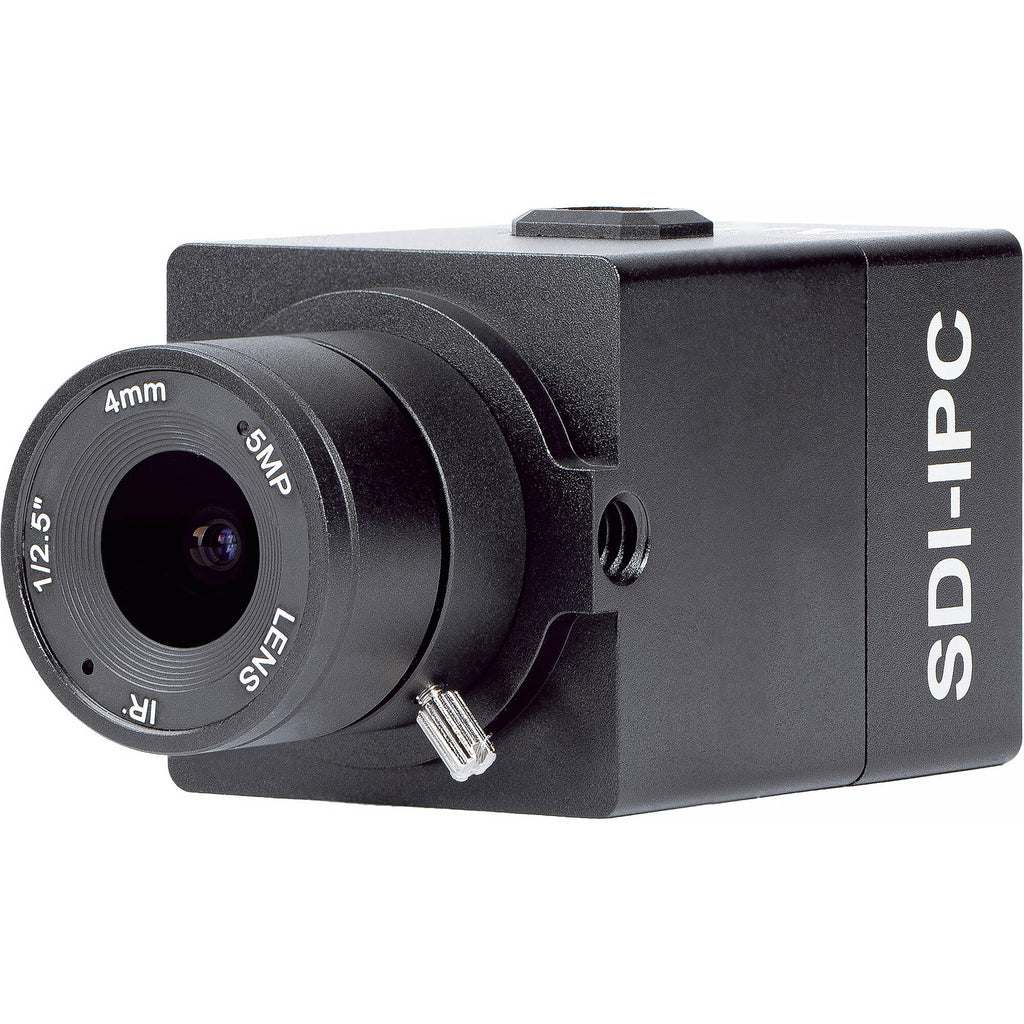

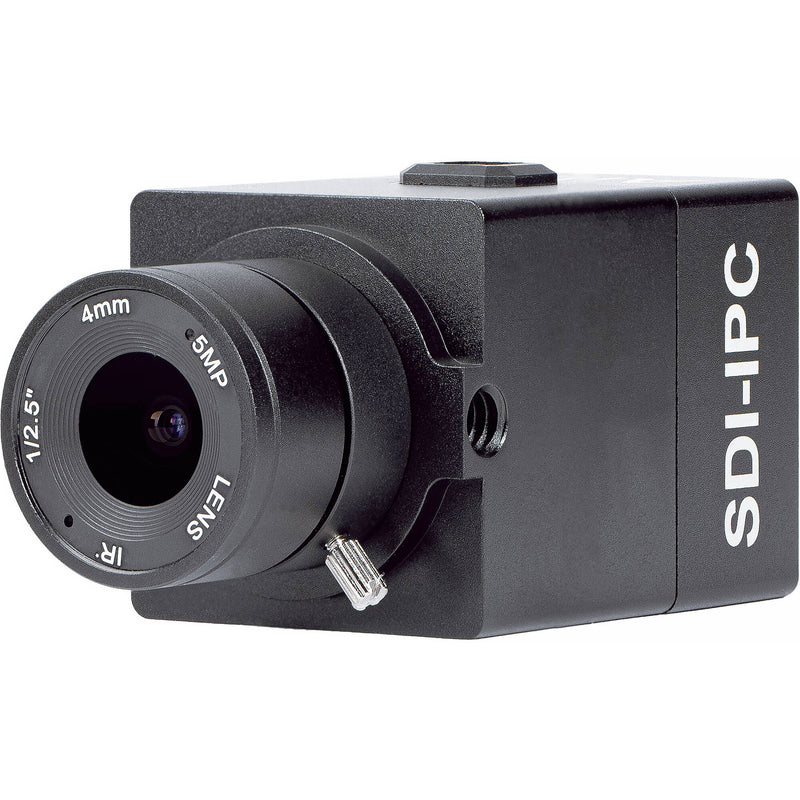

AIDA Imaging HD3G-IPC-100A Overview
The HD3G-IPC-100A Full HD 3G-SDI POV Camera from AIDA Imaging boasts IP control with a signature compact design, affordable pricing, and exceptional image quality. The versatile camera utilizes a 1/2.8" Sony progressive CMOS sensor and a 4mm CS-mount lens that achieve an 80° angle of view and image resolutions up to 1080p60.
Full VISCA over IP control across any network eliminates the need for outdated RS-485 wiring. This camera is part of the AIDA Imaging SDI IPC series, which integrates seamlessly with both new and existing 3G-SDI setups, offering complete control over every aspect.
- Full-HD 1/2.8� Sony progressive scan CMOS sensor capable of up to 1080p60 through 3G-SDI
- VISCA over IP compatible for hardware and software solutions using that protocol. (VISCA UDP, Sony VISCA over IP)
- Versatile designs with tripod mounts for easy and unique shot creation
- PoE+ adaptable with adapter
- Small form-factor and rugged design make all video streaming applications possible
- Perfectly suited for indoor or outdoor shots for new or existing workfows
UPC: 783970765161
Items Included
- AIDA Imaging HD3G-IPC-100A Full HD 3G-SDI POV Camera with IP Control
- PoE Adapter
- 12 VDC Power Supply with Plug Adapters
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
AIDA Imaging HD3G-IPC-100A Specs
General
| Image Sensor |
1/2.8" Sony Progressive CMOS Sensor (5.640 x 3.216 mm)
|
| Effective Pixels (H x V) |
1920 x 1080
Pixel Size: 2.9 (H) x 2.9 ?m (V) |
| Resolution |
1080p, 1080i, 720p
|
| Frame Rate |
1080p: 60/59.94/50/30/29.97/25/24
1080I: 60/59.94/50 720p: 60/59.94/50 |
| Color Spaces |
4:2:2 (YCbCr) 10-Bit
|
| Minimum Illumination |
0.2 Lux (Day), 0.1 Lux (Night)
|
| White Balance |
Auto & Manual (9000 to 11,000K)
|
| Lens |
4mm CS-Mount Lens
|
| Field of View |
80° Field of View
|
| Control Protocol |
VISCA over IP
|
Inputs/Outputs

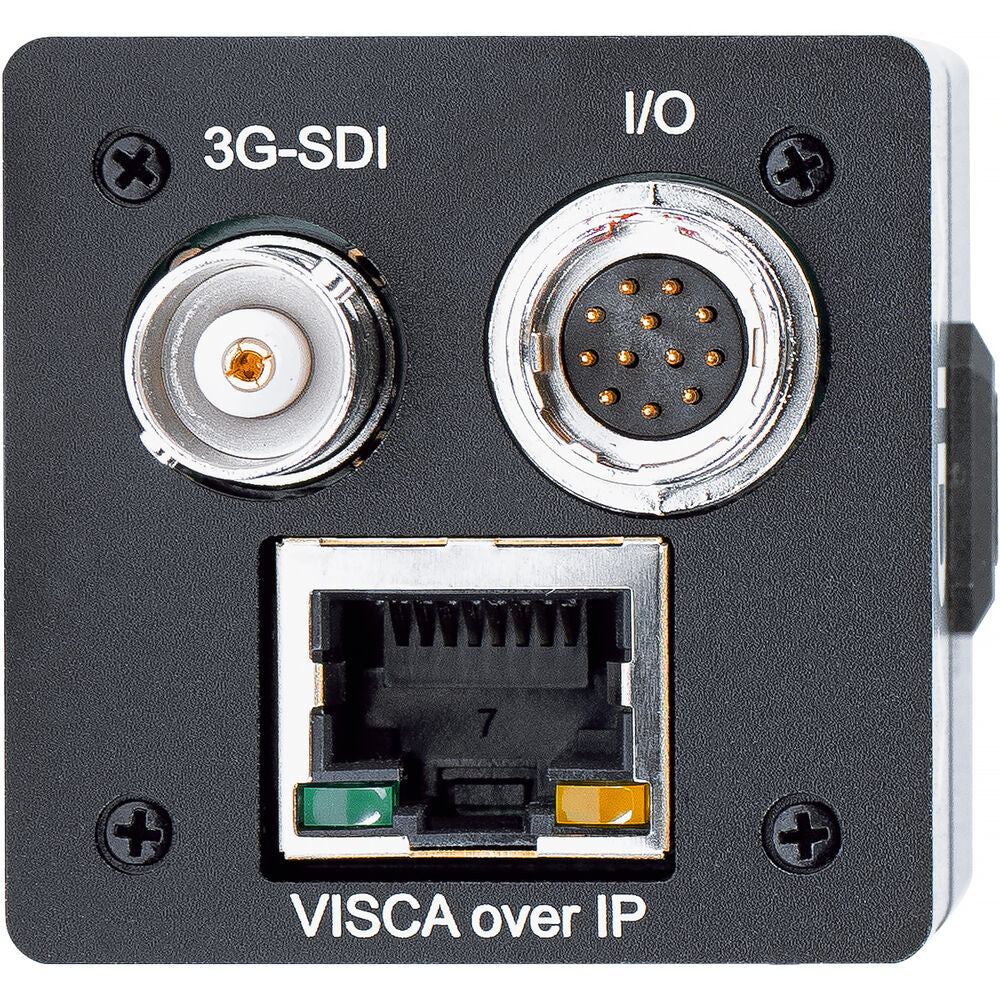

| Video I/O |
1x BNC (3G-SDI) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Line Input
|
Power
| Power Source |
AC Adapter with Power Brick (Included), PoE (Included)
|
| DC Input Power |
12 VDC
|
| Power Consumption |
6 W
|
Physical
| Mounting |
Top: 1x 1/4"-20
Bottom: 1x 1/4"-20 |
| Color |
Black
|
| Operating Conditions |
14 to 122°F / -10 to 50°C
|
| Dimensions |
3 x 2" / 7.6 x 5.1 cm
|
| Weight |
Not Specified by Manufacturer
|
Packaging Info
| Package Weight |
1.575 lb
|
| Box Dimensions (LxWxH) |
9.6 x 6 x 4.1"
|
