Description
AIDA Imaging HD-100A Overview

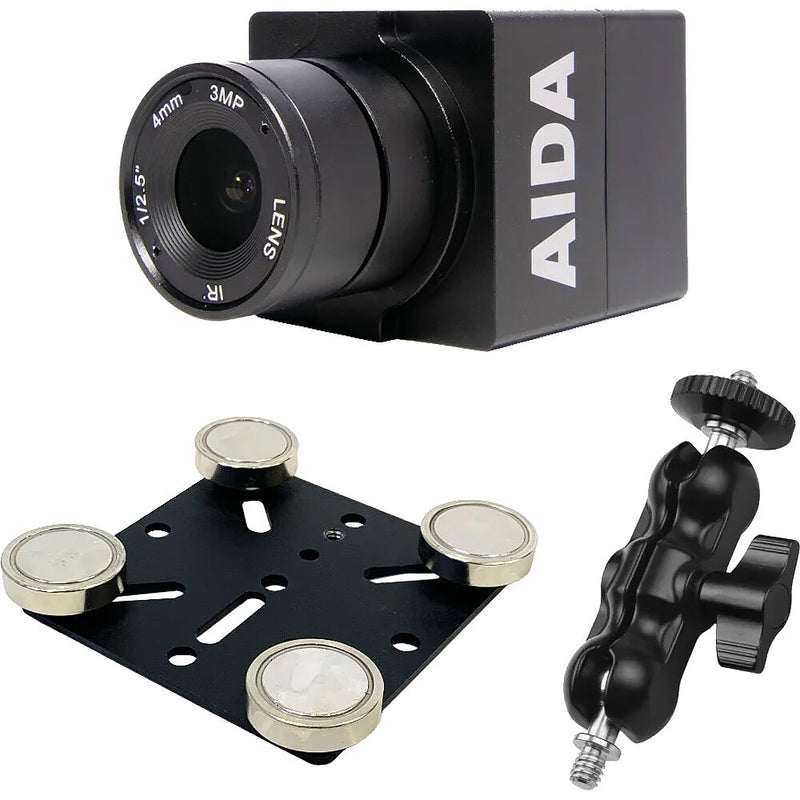

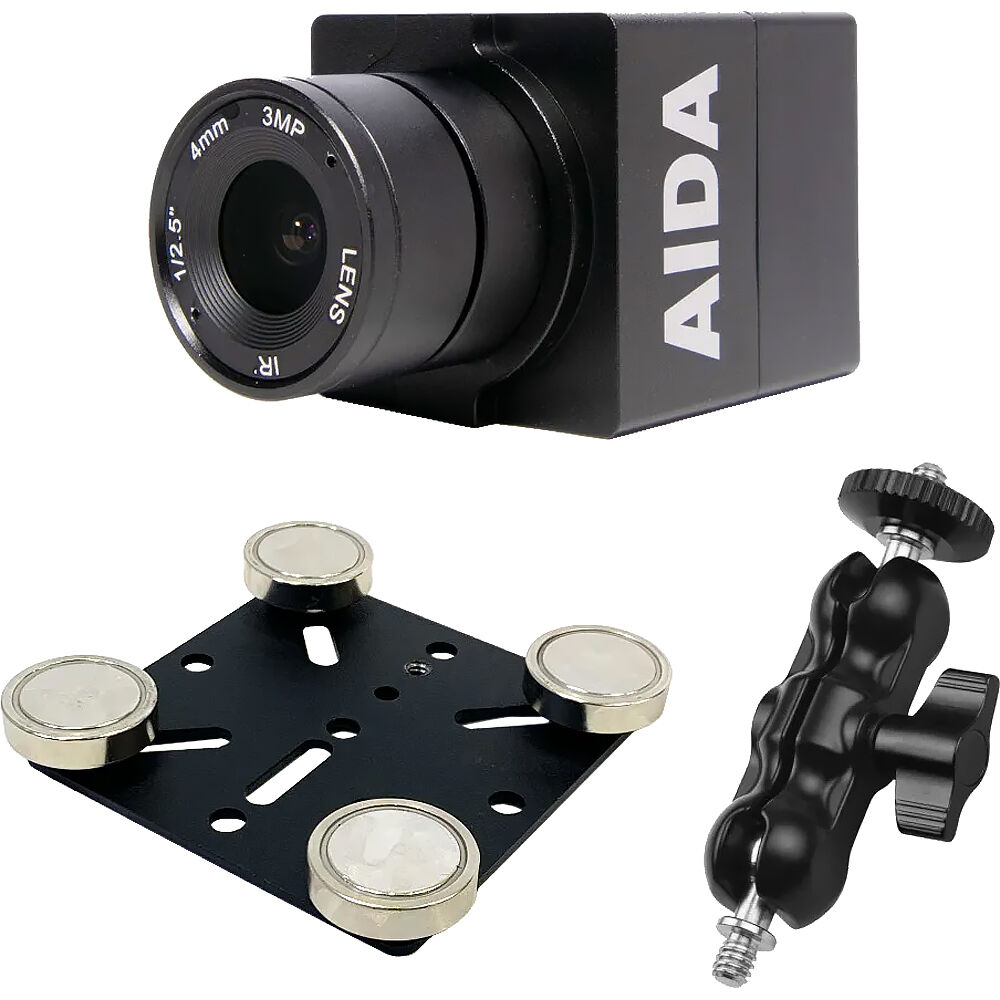

The HD-100A Full HD HDMI Box Camera with Magnetic Plate & Pivot Arm Kit from AIDA Imaging is an ultracompact camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. This kit bundles the camera with a magnetic plate and a pivot arm. Measuring approximately 1.5" wide by 1.5" tall and 3" deep, the camera can fit in a variety of spaces where a small footprint is advantageous such as a dashcam in a race car, or discretely in the corner of a surgical room. The camera captures HD at up to 60 fps, and it features a C/CS mount for mounting interchangeable lenses and includes a 4mm lens with iris control.
The camera has an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included breakout cable provides inputs for power, RS-485 control, and mic/line-level audio, which is embedded in the HDMI output. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools such as noise reduction, black-level adjustment, flicker detection as well as selecting the exposure mode.
The camera body includes both a power and HDMI indicators, allowing you to confirm its operation at a glance. Two 1/4"-20 threaded mounting holes, one on the bottom and one on the top allow you options when mounting the camera.
- Image Freeze
- Mirror/V-Flip
- Image Effect (Negative, Grey, Red 1-4, Blue 1-4, Green 1-4)
- Rotation
- Picture Style (off, Standard, Vivid, Clear, Vivid Clear, Neutral)
- Flicker Detect
Items Included
- AIDA Imaging HD-100A Full HD HDMI Box Camera with Magnetic Plate & Pivot Arm Kit
- OSD Control Breakout Cable with Audio
- Power Adapter with 3 Universal Plug Adapters
- 4mm Lens
- Sensor Cap
- C-Mount Lens Adapter
- USB Cable
- Magnetic Plate
- Pivot Arm
- Limited 2-Year Manufacturer Warranty
Additional Resources
AIDA Imaging HD-100A Specs
| Camera |
Image Sensor: 1/3" CMOS
Effective Pixels H x V: 1920 x 1080 Pixel Size: 2.75 µm (H) x 2.75 µm (V) Resolution: 1080p (60/59.94/50/30/29.97/25/24 fps), 1080i (60/59.94/50 fps), 720p (60/59.94/50 fps) Color Space: 4:2:2 (YCbCr) 10-Bit Minimum Illumination: 0.2 Lux (Day), 0.1 Lux (Night) Slow Shutter: 0.005 Lux Audio Bit Rate: 16/24/32-Bit Lens: C/CS-Mount 4 mm Other Inputs / Outputs: 1 x 4-Pin (Power and RS-485), 1 x 4-Pin (Auto-Iris) |
| USB I/O |
1 x Mini-USB Female Input
|
| Video I/O |
1x HDMI 1.3 Output
|
| Audio I/O |
1x 1/8" / 3.5 mm Line/Mic Input (Via Breakout Cable)
|
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
9 to 15 VDC
|
| Power Consumption |
6 W
|
| Mounting |
2x 1/4"-20 Threaded Hole
1x Magnetic Plate 1x Pivot Arm |
| Color |
Black
|
| Certifications |
CE, FCC
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Dimensions |
1.99 x 1.53 x 1.53" / 5.05 x 3.89 x 3.89 cm (Camera Only)
|
| Weight |
4.9 oz / 140 g (Camera Only)
6.3 oz / 180 g (Camera and Lens) |
| Package Weight |
3.195 lb
|
| Box Dimensions (LxWxH) |
12.2 x 8.6 x 6.7"
|
